ABS (Antilock Brake System)

DIAGNOSTIC TROUBLE CODE CHART

NOTE: When removing the part, turn the ignition switch OFF.

HINT:
- Using SST 09843-18020 or 09843-18040, connect terminals Tc and E1 of the DLC1 or Tc and CG of the DLC3.
- If any abnormality is not found when inspecting parts, inspect the ECU.
- If a malfunction code is displayed during the DTC check, check the circuit listed that code. For details of each code, refer the respective "DTC No." in the DTC chart.

C0278 - C1237:

C1238 - Always ON:

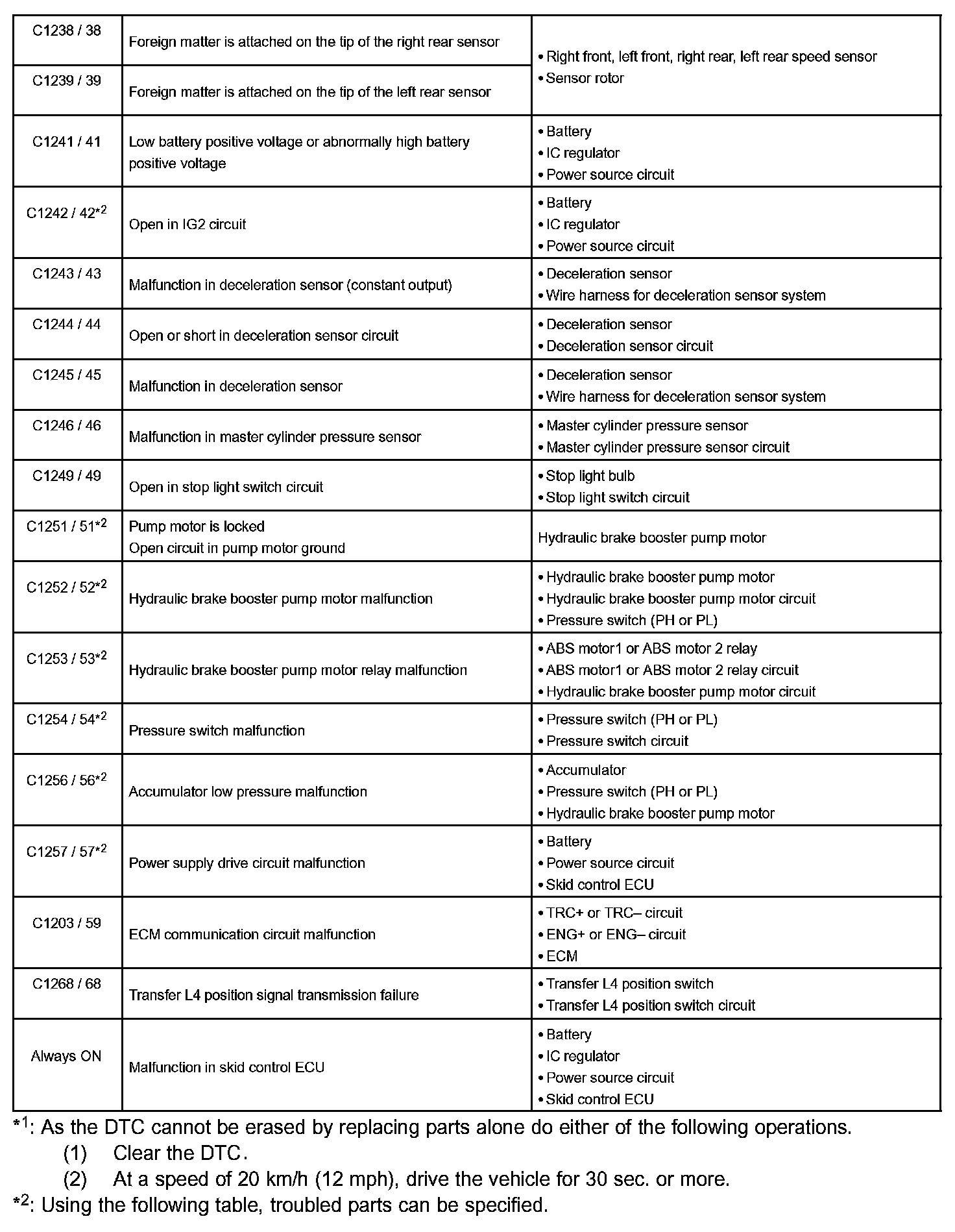

DTC chart of ABS:

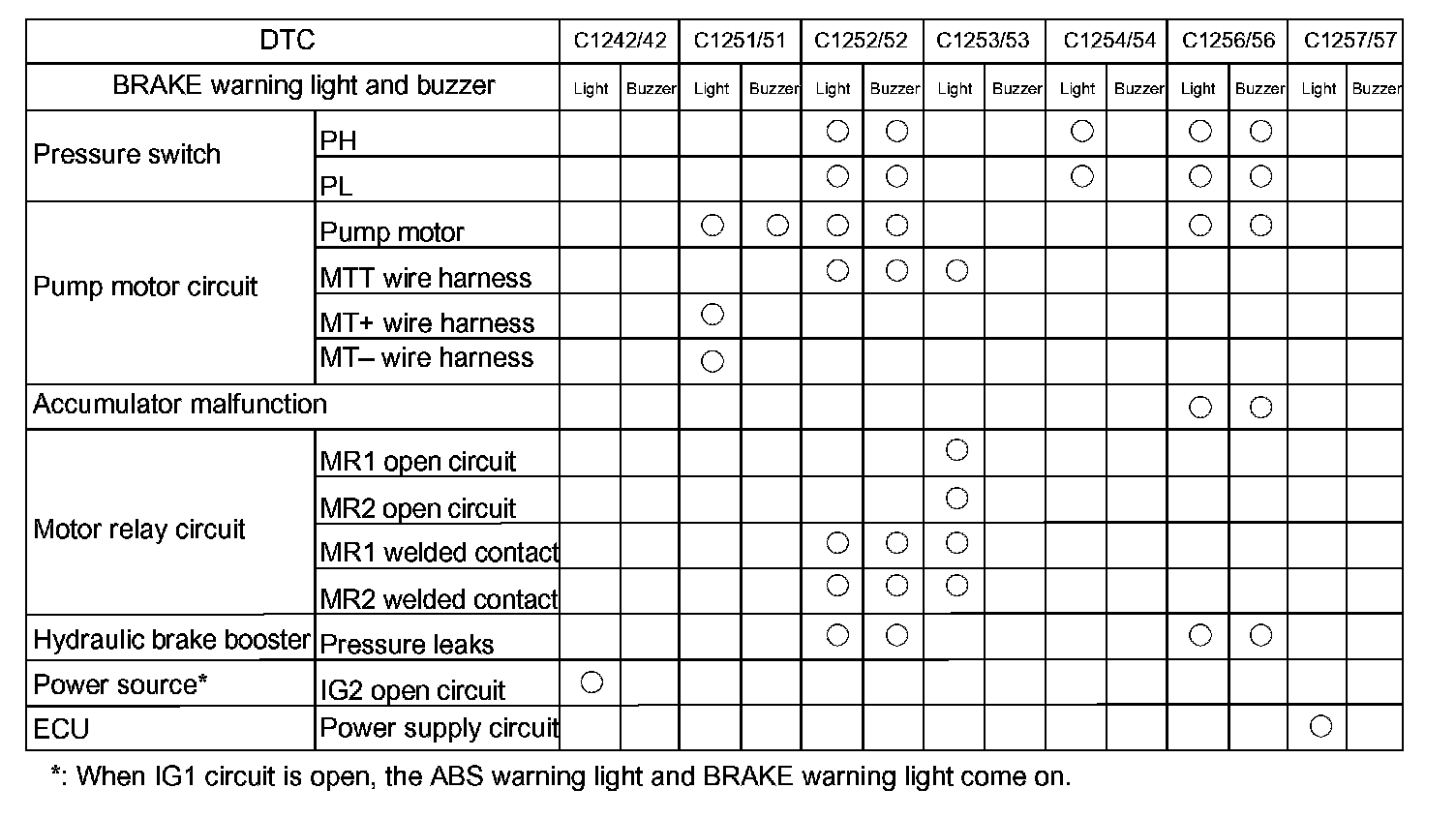

Table of Trouble Part and DTC:

C1231 - Always ON:

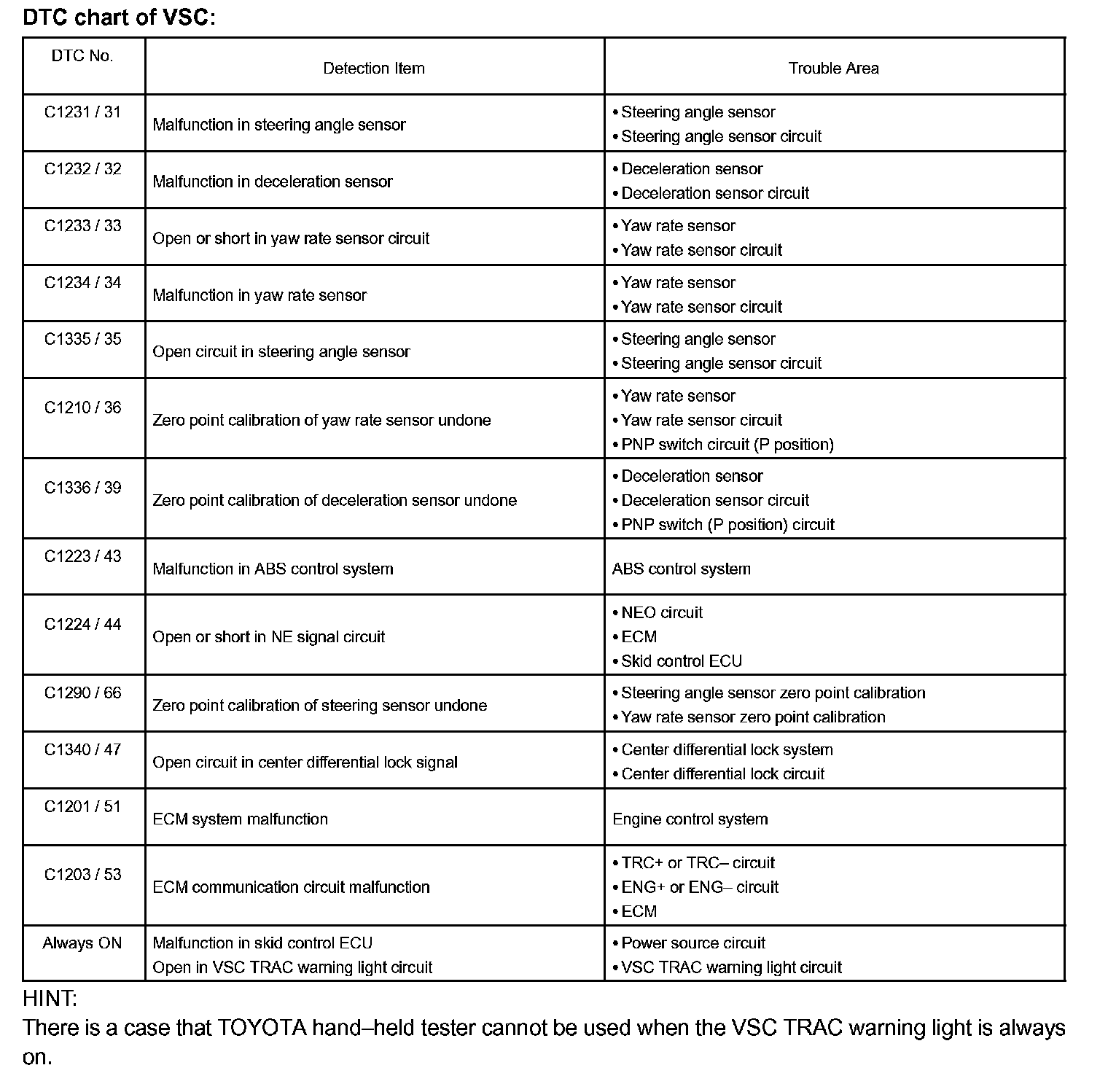

DTC chart of VSC:

C1271 - C1283:

DTC of speed sensor signal check function:

C0371:

DTC of the VSC sensor check function:
