Removal and Installation

Generator Assy - Part 1:

Generator Assy - Part 2:

REPLACEMENT

1. REMOVE V BELT




2. REMOVE GENERATOR ASSEMBLY

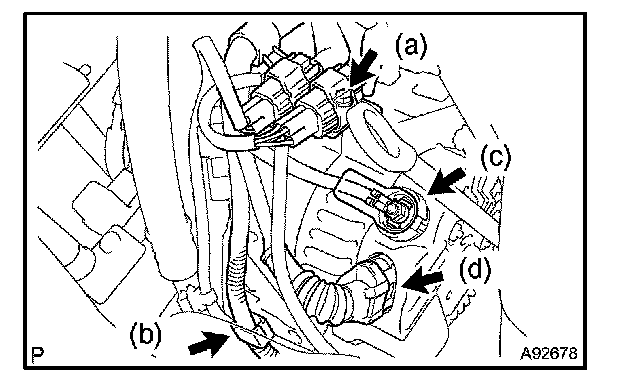

a. Remove the bolt, and disconnect the wire clip on the wire connectors from the generator.
b. Disconnect the wire clamp from the wire clip.
c. Remove the cap and nut, and disconnect the generator wire.
d. Disconnect the generator connector.




e. Remove the 2 bolts and generator.

3. INSTALL GENERATOR ASSEMBLY

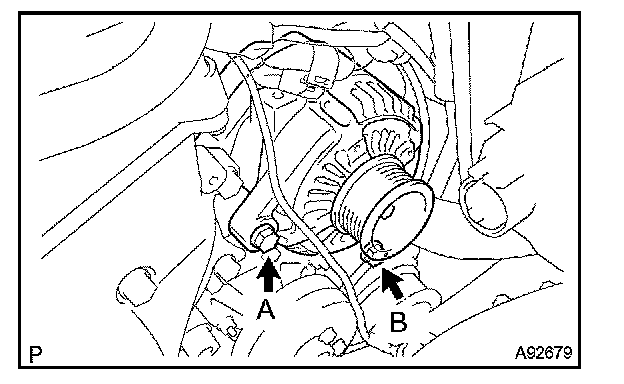

a. Install the generator.

Torque:
52 Nm (530 kgf.cm, 38 ft.lbf) for bolt A
21 Nm (214 kgf.cm, 15 ft.lbf) for bolt B

NOTE: Be careful not to put the wire harness between the engine and the generator when install the generator.

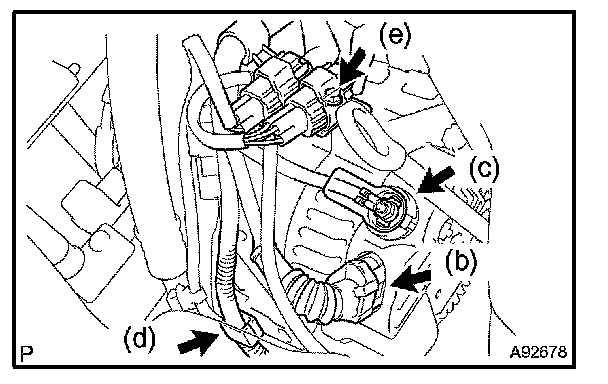

b. Connect the generator connector.
c. Connect the generator wire with the nut, and install the cap.

Torque: 9.8 Nm (100 kgf.cm, 7.0 ft.lbf)

d. Install the wire clamp to the wire clip.
e. Install the wire clip on the wire connectors to the generator.

4. INSTALL V BELT
