Canada - Fuel System - No Start In Freezing Temps/DTC's Set

Bulletin
TSB2513

Issue Date
2006-05-10

Market
Canada

Title
"NO START" IN SUB-FREEZING AMBIENT AIR TEMPERATURES

Component
ENGINE MECHANICAL

Models
'04 - '05 Highlander

TSB UPDATE NOTICE:
The information contained in this TSB supersedes TSB No. 2339. TSB No. 2339 is now obsolete and should be discarded.

INTRODUCTION:
Some customers may experience a "no start" condition and/or M.I.L. "ON" with DTCs P0300, P0171, and P0174 after the vehicle has cold soaked in sub--freezing ambient air temperatures. To correct this condition a new fuel pump sub--tank assembly is now available. Follow the repair procedure to replace the fuel pump sub--tank assembly.

APPLICABLE VEHICLES:

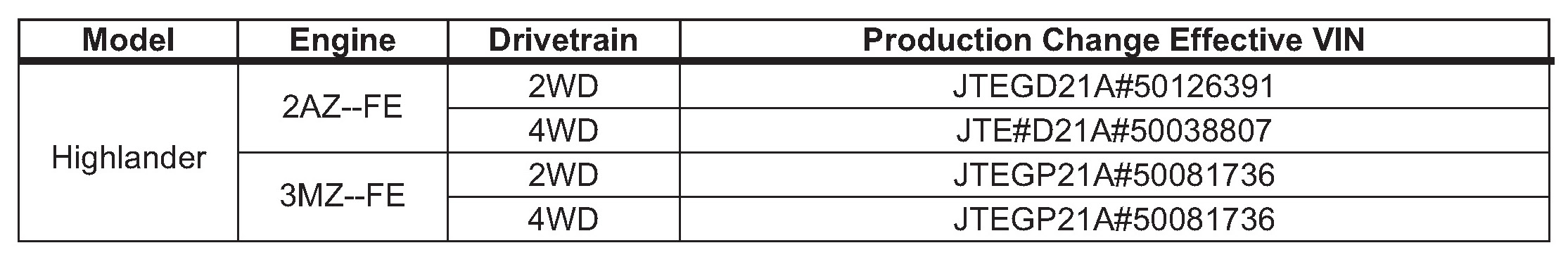

- 2004 - 2005 model year Highlander vehicles produced BEFORE the Production Change Effective VINs shown below.






PARTS INFORMATION:






WARRANTY INFORMATION:

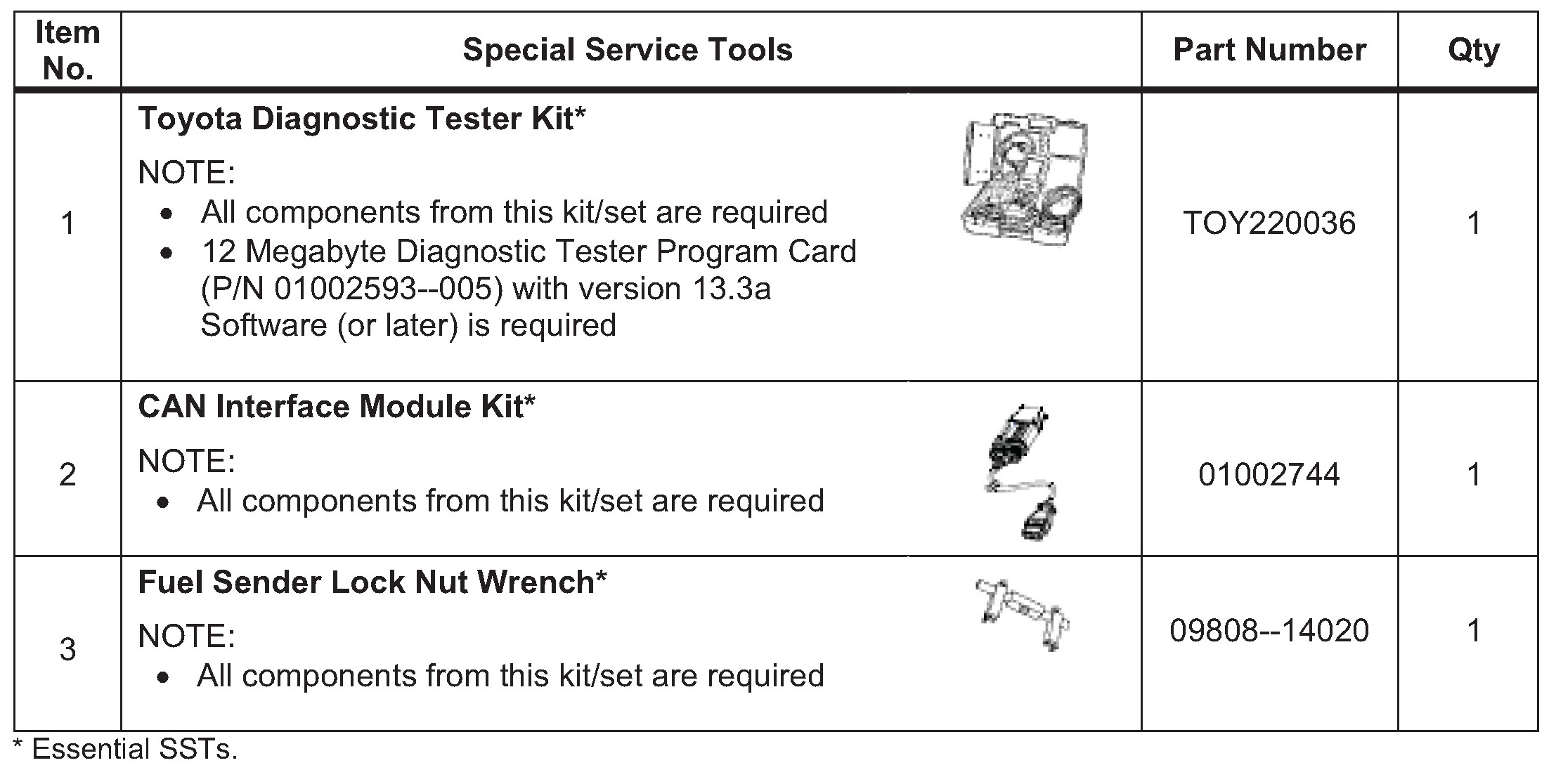

REQUIRED SSTs:

REPAIR PROCEDURE:
If the customer experiences a "no start" and/or M.I.L. "ON" condition with DTCs P0300, P0171, and P0174 after a cold soak in sub--freezing ambient air temperatures, replace the fuel pump sub--tank assembly.
- Refer to the ETAS, 2004 -- 2005 model year Highlander Repair Manual: Fuel: Fuel Pump Assy (2AZ--FE) or (3MZ--FE): Replacement
