Rear Heater Assembly

Rear Heater Assy:

REAR HEATER ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE DECK SIDE TRIM COVER FRONT LH
2. REMOVE DECK SIDE TRIM COVER RH
3. REMOVE DECK TRIM SIDE PANEL ASSEMBLY RH

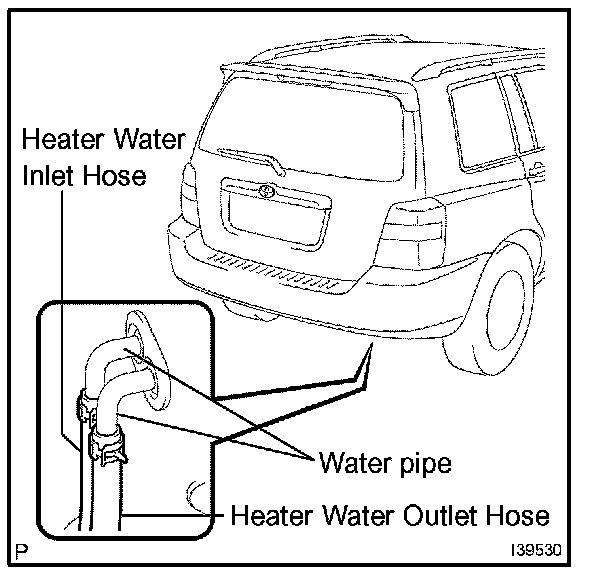

4. DISCONNECT HEATER WATER OUTLET HOSE




a. Using pliers, grip the claws of the clip and slide the clip, and disconnect the heater water outlet hose.

NOTE:
- When installing or removing the hoses, hold heater water pipes to prevent deformation.
- Do not apply any excessive force to the heater water outlet hose.
- Prepare a drain pan or cloth in case the cooling water leaks.

5. DISCONNECT HEATER WATER INLET HOSE

HINT: Disconnect the heater water inlet hose in the same way as the heater water outlet hose.




6. REMOVE FOOT AIR DUCT REAR
a. Remove the 2 clips and foot air duct rear.

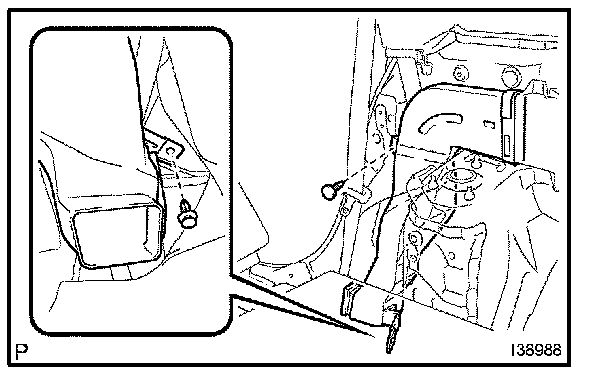

7. REMOVE AIR DUCT REAR NO.5
a. Disconnect the wire harness clamp.
b. Remove the 2 clips and air duct rear No.5.

8. REMOVE REAR HEATER ASSEMBLY




a. Disconnect the washer hose clamp.

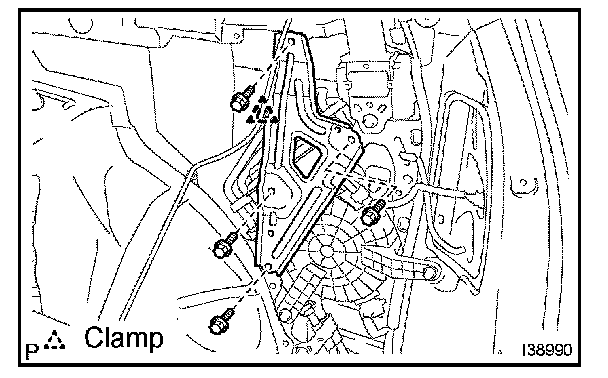

b. Remove the 4 bolts and plate.

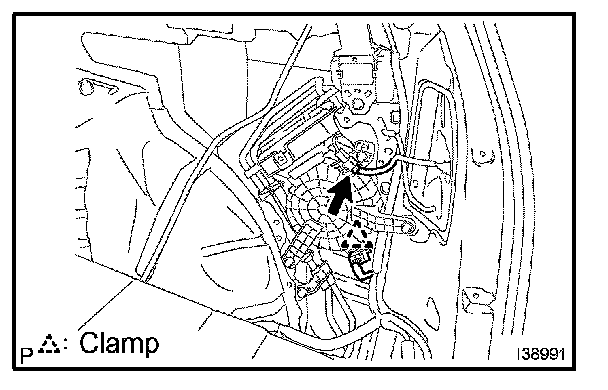

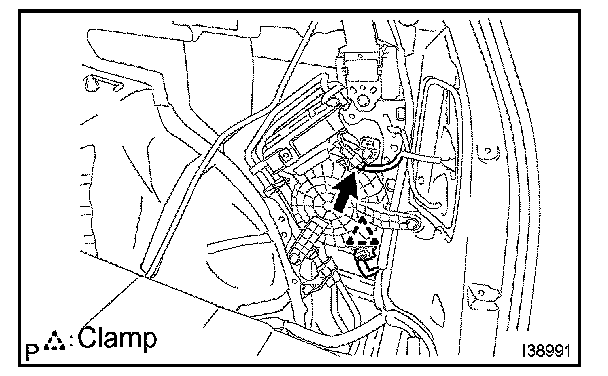

c. Disconnect the heater relay No.1 clamp.

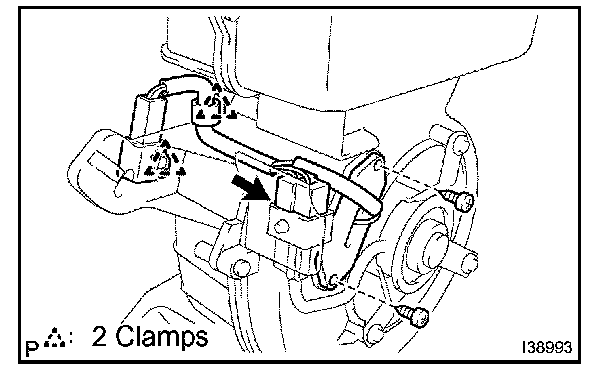

d. Disconnect the heater blower resistor connector.




e. Remove the 4 bolts and rear heater assembly.


9. REMOVE WATER PIPE & HOSE SUB-ASSEMBLY

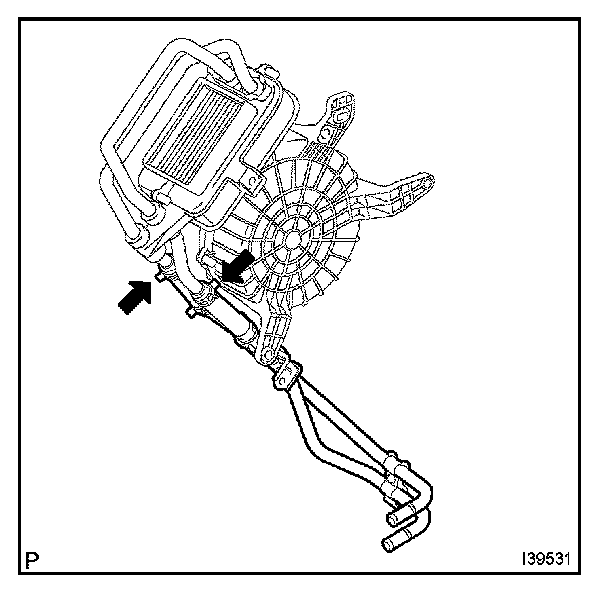

a. Using pliers, grip the claws of the 2 clips and slide the 2 clips, and disconnect the heater water hose.

NOTE: Do not apply any excessive force to the heater water hose.

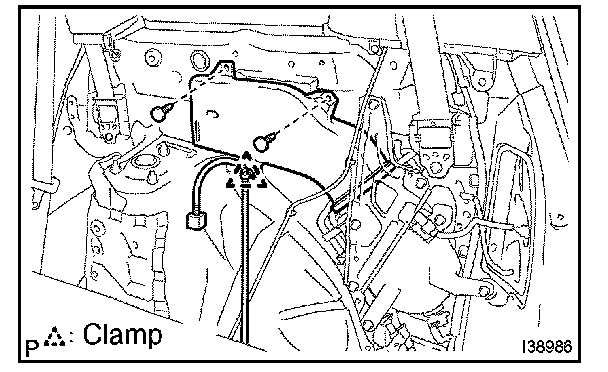

10. REMOVE REAR HEATER BLOWER RESISTOR




a. Disconnect the 2 clamps and connector.
b. Remove the 2 screws and rear heater blower resistor.

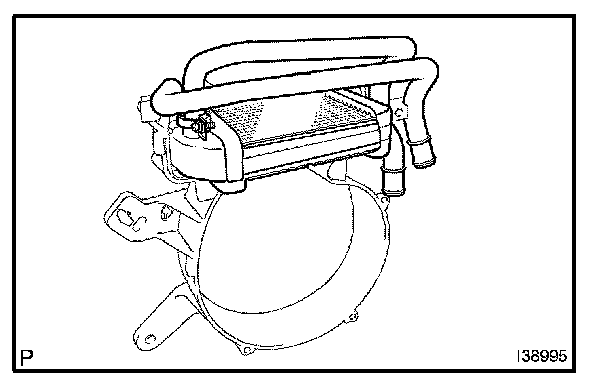

11. REMOVE REAR HEATER UNIT SUB-ASSEMBLY

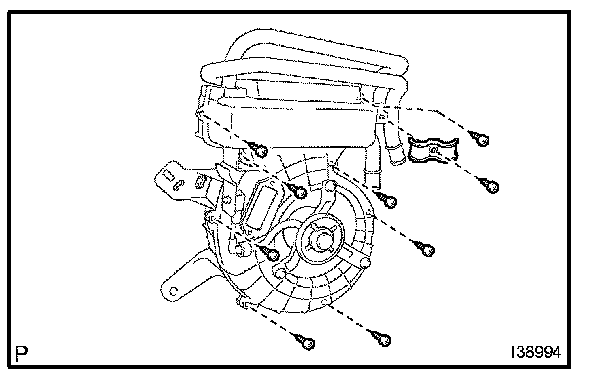

a. Remove the 9 screws and clamp.




b. Remove the rear heater unit sub-assembly from the heater case.

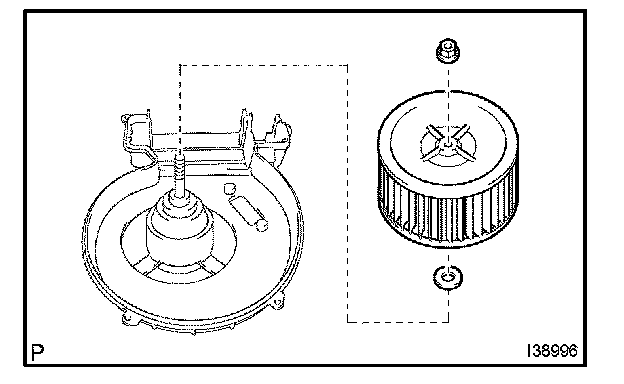

12. REMOVE REAR HEATER BLOWER FAN SUB-ASSEMBLY

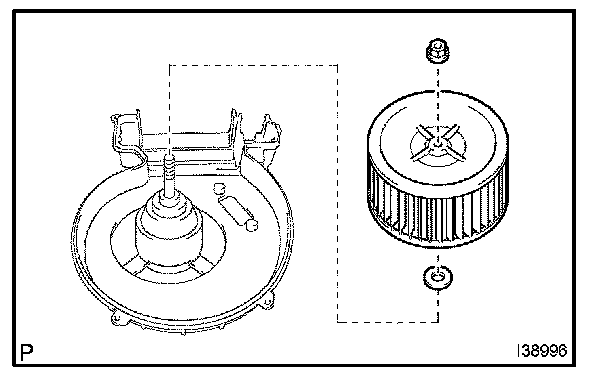

a. Remove the nut and heater blower fan sub-assembly.
b. Remove the washer.

13. REMOVE REAR HEATER BLOWER MOTOR SUB-ASSEMBLY




a. Disconnect the connector clamp.

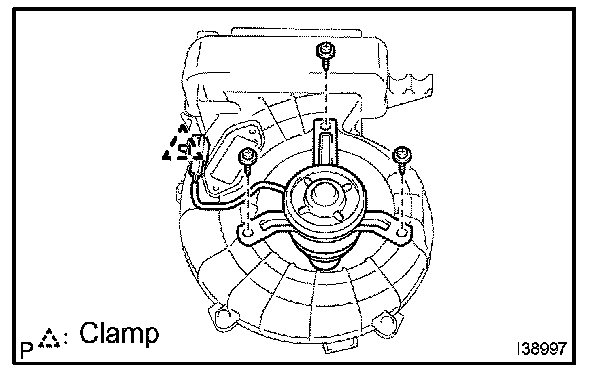

b. Remove the 3 screws and heater blower motor sub-assembly.

14. INSTALL REAR HEATER BLOWER FAN SUB-ASSEMBLY




a. Install the washer.
b. Install the heater blower fan sub-assembly with the nut.

Torque: 4.0 N.m (41 kgf.cm, 35 in.lbf)

15. INSTALL REAR HEATER ASSEMBLY




a. Install the rear heater assembly with the 4 bolts.

Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

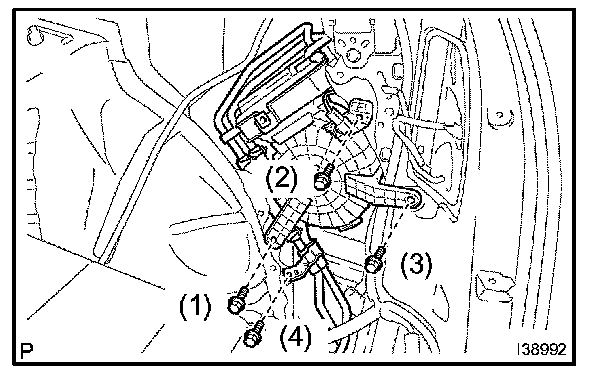

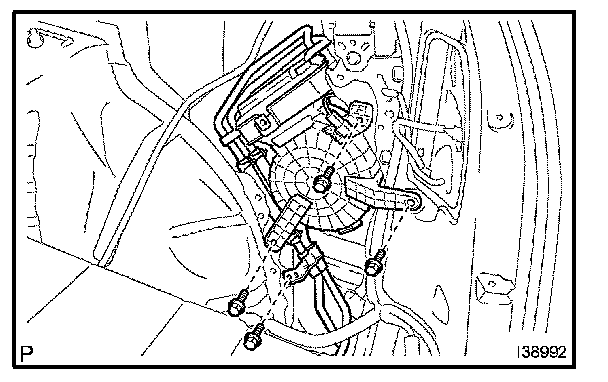

NOTE: Tighten the bolts in the numerical order shown in the illustration to install the rear heater assembly.




b. Install the heater blower resistor connector.
c. Install the heater relay No.1.




d. Install the water hose.

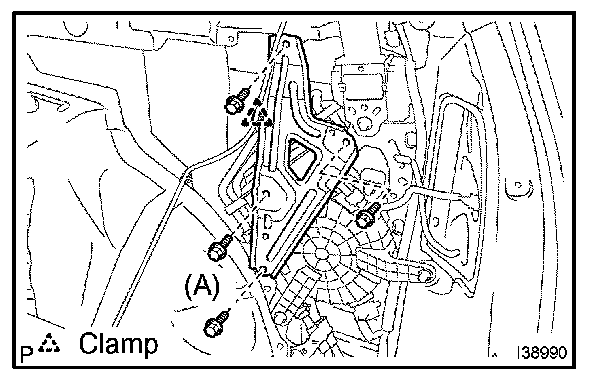

e. Install the plate with the 4 bolts.

Torque:
Bolt A: 9.8 N.m (100 kgf.cm, 87 in.lbf)
