Quarter Window Glass: Service and Repair
QUARTER WINDOW ASSEMBLY LHREPLACEMENT
HINT:
- The installation procedures are the removal procedures in reverse order. However, only installation procedures requiring additional information are included.
- The procedures listed for the LH side.
- Use the same procedures for the LH side and RH side.
- A bolt without a torque specification is shown in the standard bolt chart.
1. REMOVE REAR NO. 1 SEAT ASSEMBLY (W/O REAR NO.2 SEAT)
2. REMOVE REAR DOOR SCUFF PLATE LH
3. REMOVE REAR DOOR OPENING TRIM WEATHERSTRIP LH
4. REMOVE TONNEAU COVER ASSEMBLY (W/ TONNEAU COVER)
5. REMOVE DECK BOARD SUB-ASSEMBLY NO.2
6. REMOVE DECK BOARD SUB-ASSEMBLY NO.3
7. REMOVE DECK BOARD SUB-ASSEMBLY
8. REMOVE DECK FLOOR BOX REAR
9. REMOVE DECK SIDE TRIM BOX LH
10. REMOVE DECK SIDE TRIM BOX RH
11. REMOVE DECK FLOOR BOX FRONT (W/O REAR NO.2 SEAT)
12. REMOVE REAR FLOOR FINISH PLATE
13. REMOVE DECK BOARD BRACKET REINFORCEMENT (W/ REAR NO.2 SEAT)
14. REMOVE REAR NO. 2 SEAT ASSEMBLY (W/ REAR NO.2 SEAT)
15. REMOVE REAR NO.1 SEAT BELT ASSEMBLY OUTER LH
16. REMOVE REAR NO.2 SEAT BELT ASSEMBLY OUTER LH (W/ REAR NO.2 SEAT)
17. REMOVE DECK SIDE TRIM COVER LH
18. REMOVE REAR COMBINATION LAMP SERVICE COVER LH
19. REMOVE ROPE HOOK
20. REMOVE REAR SEAT TRACK COVER LH (W/ REAR NO.2 SEAT)
21. REMOVE DECK TRIM SIDE PANEL ASSEMBLY LH
22. REMOVE QUARTER PILLAR GARNISH LH
23. REMOVE ROOF SIDE RAIL GARNISH SUB-ASSEMBLY LH
24. REMOVE ROOF SIDE GARNISH ASSEMBLY INNER LH
25. REMOVE QUARTER WINDOW ASSEMBLY LH

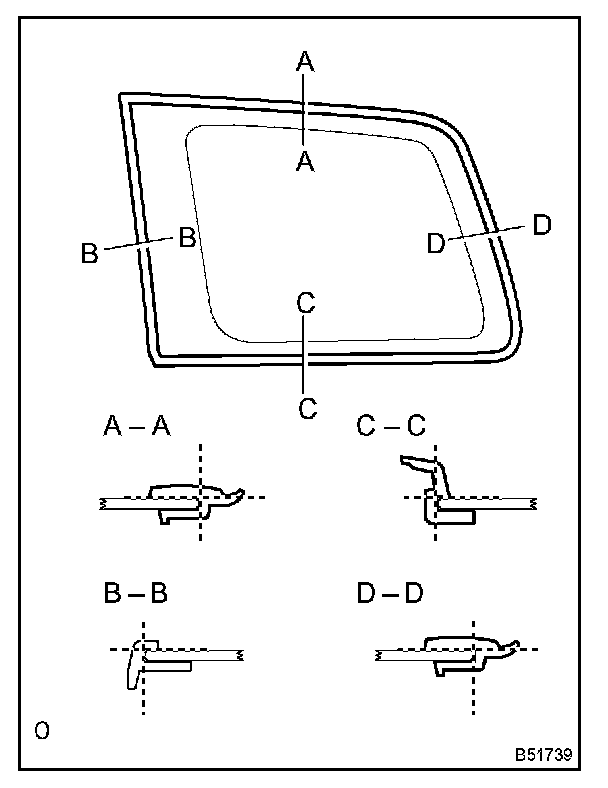

a. Using a knife, cut off the moulding, as shown in the illustration.
NOTE: Be careful not to damage the vehicle body with the knife.
b. Disconnect the connector.
c. Remove the remaining moulding.
HINT: Make a partial cut in the moulding. Then, pull and remove it by hand.

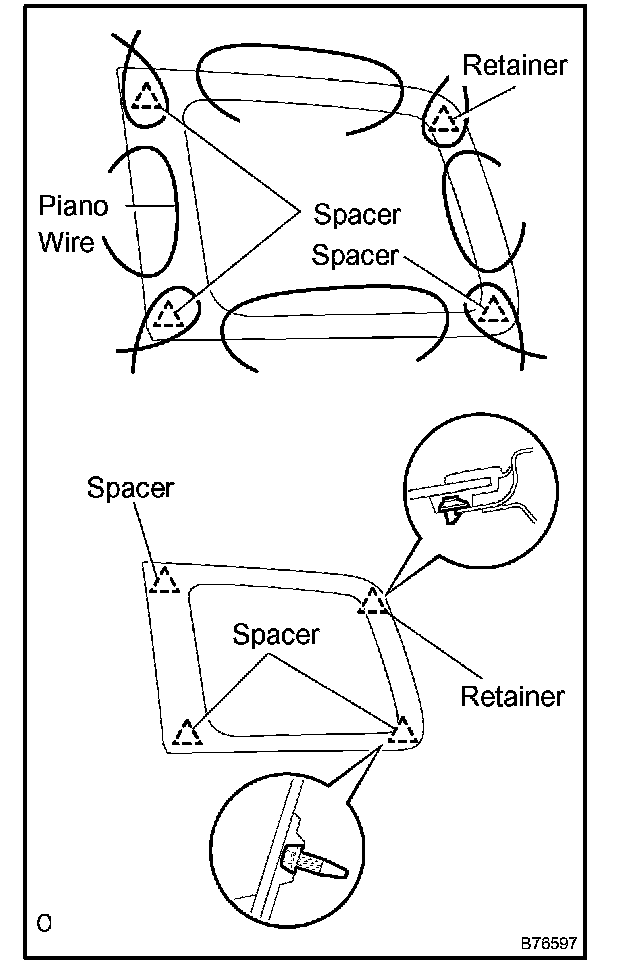

d. From the interior, insert piano wires between the vehicle body and glass, as shown in the illustration.
e. Tie object that can serve as handles (for example, wooden blocks) to all wire ends.
HINT: Apply protective tape to the outer surface of the vehicle body to prevent its surface from being scratched.
NOTE: When separating the glass from the vehicle, be careful not to damage the vehicle's paint or interior/exterior ornaments.
f. Cut through the adhesive by pulling the piano wire around the glass.
g. Using a suction cup, remove the glass.
NOTE: Leave as much adhesive on the vehicle body as possible when removing the glass.
26. INSTALL QUARTER WINDOW GLASS SPACER
a. Clean the installation area.
b. Install new spacers onto the glass.
27. INSTALL QUARTER WINDOW ASSEMBLY LH
a. Clean and shape the contact surface of the vehicle body.

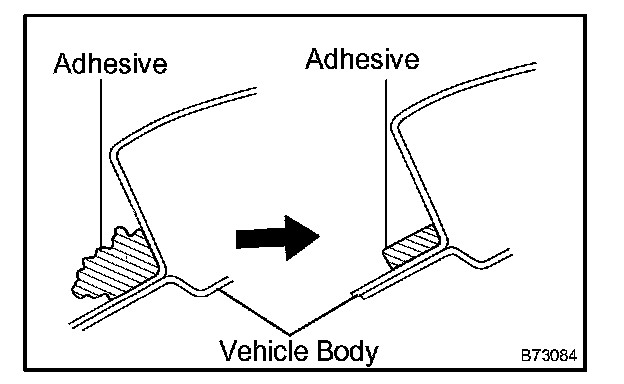

1. Using a knife, cut away any rough adhesive on the contact surface of the vehicle body to ensure the appropriate surface shape.
NOTE: Be careful not to damage the vehicle body.
HINT: Leave as much adhesive on the vehicle body as possible.
2. Clean the contact surface of the vehicle body with a piece of shop rag saturated with cleaner.
HINT: Even if all the adhesive has been removed, clean the vehicle body.

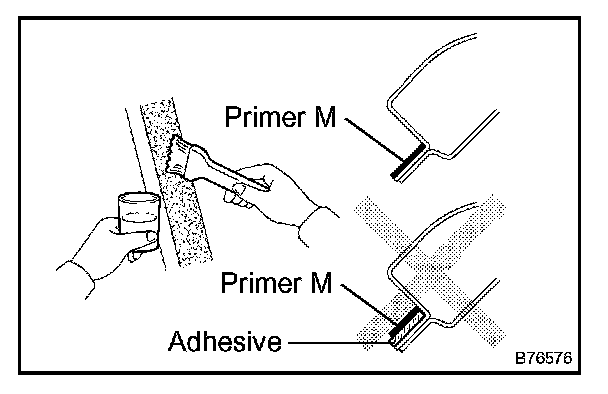

b. Using a brush, coat the exposed part of the vehicle body on the vehicle side with Primer M.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Do not coat the adhesive with Primer M.
- Throw away any leftover Primer M.
- Do not apply too much Primer M.
c. Using brush or sponge, coat the edge of the glass and the contact surface with Primer G.
HINT: If an area other than that specified is coated by accident, wipe off the primer with a clean shop rag before it dries.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Throw away any leftover Primer G.
- Do not apply too much Primer G.
d. Apply adhesive.
Adhesive: Part No. 08850-00801 or equivalent
1. Cut off the tip of the cartridge nozzle, as shown in the illustration.

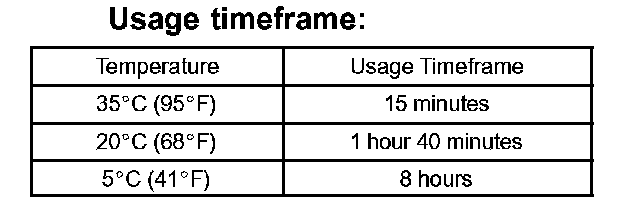

HINT: After cutting off the tip, use all adhesive within the time described in the table.
2. Load the sealer gun with the cartridge.

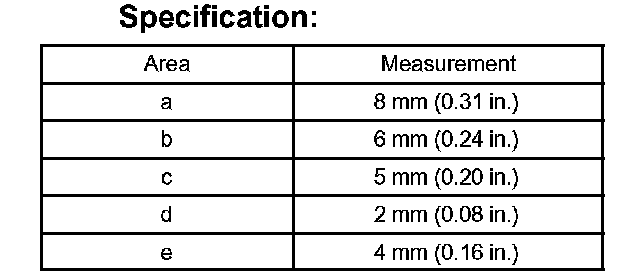

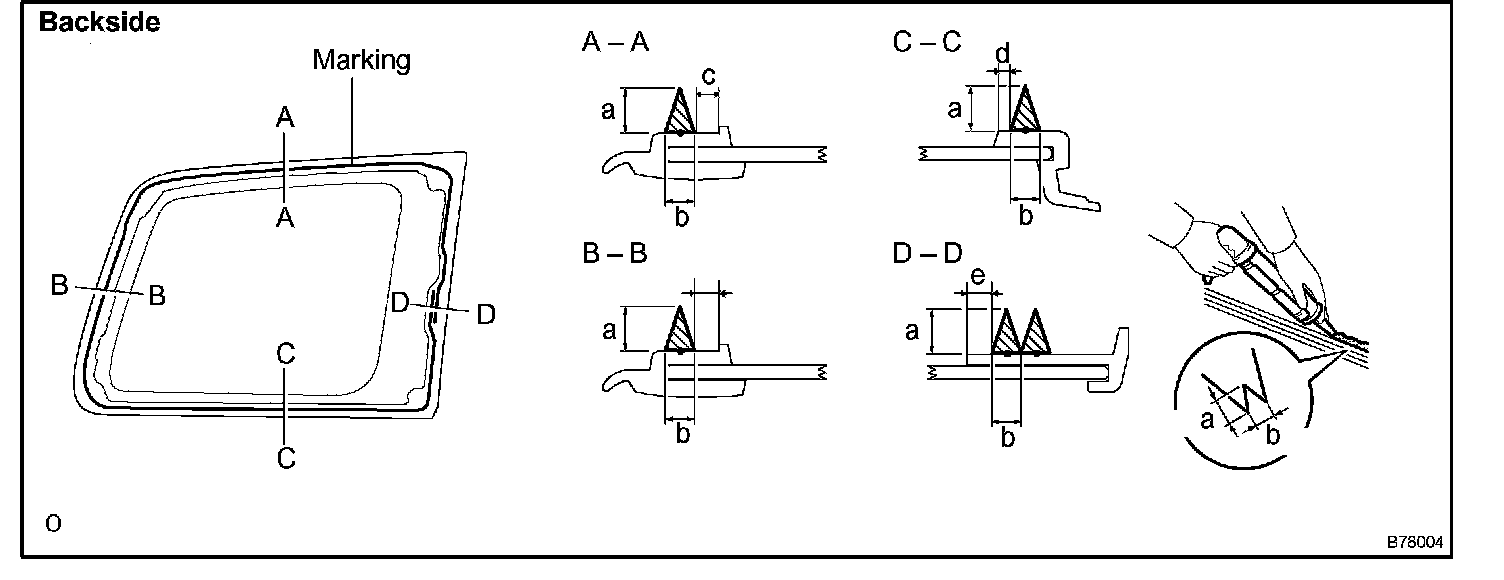

3. Coat the glass with adhesive, as shown in the illustration.
e. Install the quarter window to the vehicle body.
1. Hold the quarter window in place securely with protective tape or equivalent until the adhesive hardens.
NOTE:
- Allow the primer coating to dry for 3 minutes or more.
- Check that the spacers are attached to the vehicle body correctly.
- Check that the vehicle body and glass have a small gap between them.
2. Lightly press the front surface of the glass to ensure that the glass is securely fit to the vehicle body.

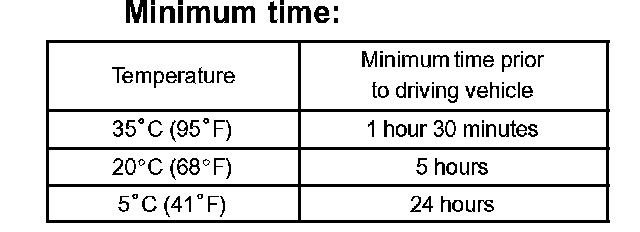

NOTE: Do not drive the vehicle for the amount of time described in the table.
28. CHECK FOR LEAKS AND REPAIR
a. Conduct a leak test after the adhesive has completely hardened.
b. Seal any leaks with auto glass sealer.
