Removal and Installation

Starter Assy:

REPLACEMENT

NOTE: Before changing the starter, check the following again:
- Connector connection
- Accessory installation

1. REMOVE BATTERY
2. REMOVE BATTERY TRAY




3. REMOVE STARTER ASSEMBLY

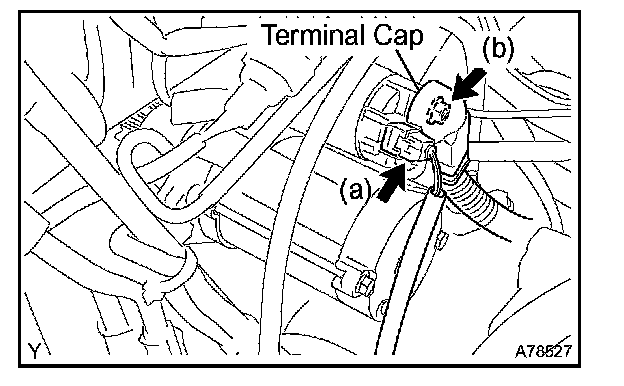

a. Disconnect the starter connector.
b. Open the terminal cap, remove the nut and disconnect the starter wire.

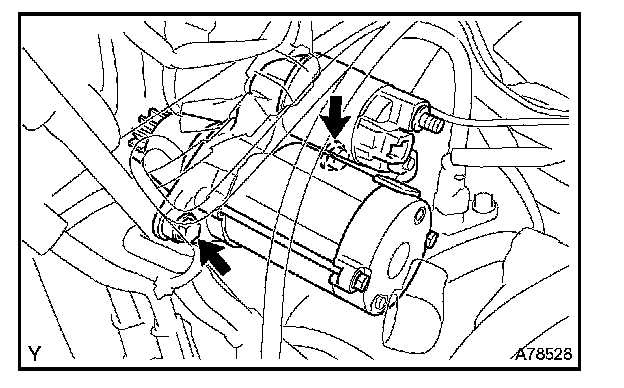

c. Remove the 2 bolts and starter.

4. INSTALL STARTER ASSEMBLY
a. Install the starter with the 2 bolts.

Torque: 37 Nm (377 kgf.cm, 27 ft.lbf)




b. Install the terminal nut and cover the nut with the cap.

Torque: 9.8 Nm (100 kgf.cm, 7 ft.lbf)

c. Connect the starter wire.

5. INSTALL BATTERY TRAY
6. INSTALL BATTERY
a. Install the battery clamp with the bolt and nut.

Torque: 5.5 Nm (56 kgf.cm, 49 in.lbf)

b. Connect the cables to the battery terminals.

Torque: 3.5 Nm (36 kgf.cm, 31 in.lbf)
