Voltage Inverter Assy

Audio & Visual System:

VOLTAGE INVERTER ASSEMBLY

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. REMOVE INSTRUMENT CLUSTER FINISH PANEL ASSEMBLY CENTER
2. REMOVE FRONT SEAT ARMREST ASSEMBLY CENTER
3. REMOVE CONSOLE BOX ASSEMBLY




4. REMOVE VOLTAGE INVERTER ASSEMBLY
a. Disconnect the connector.

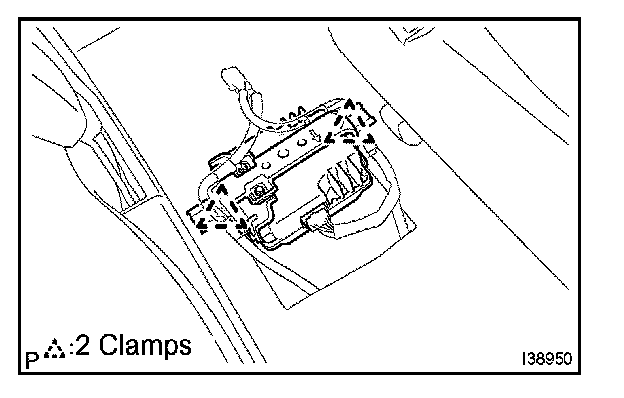

b. Remove the 2 clamps and the voltage inverter assembly.
