Blower Motor: Service and Repair

Blower Assy:

BLOWER ASSEMBLY

OVERHAUL

1. REMOVE GLOVE COMPARTMENT DOOR ASSEMBLY

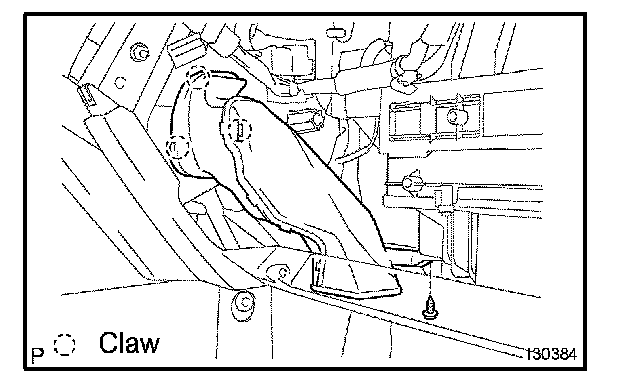

2. REMOVE AIR DUCT NO.2
a. Remove the screw.
b. Release the 3 claw fittings and remove the air duct No.2.

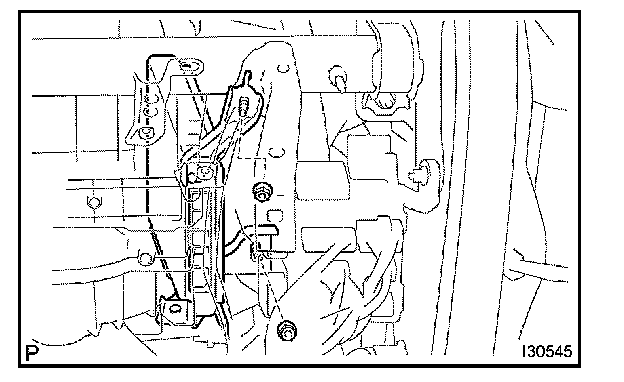

3. REMOVE ECM
a. Disconnect the connectors.
b. Remove the 2 nuts and ECM.

4. REMOVE CLEAN AIR FILTER SUB-ASSEMBLY
a. Release the 2 claw fittings and remove the air filter sub-assembly.




5. REMOVE CLEAN AIR FILTER
a. Remove the air refiner element from the air filter cover plate.

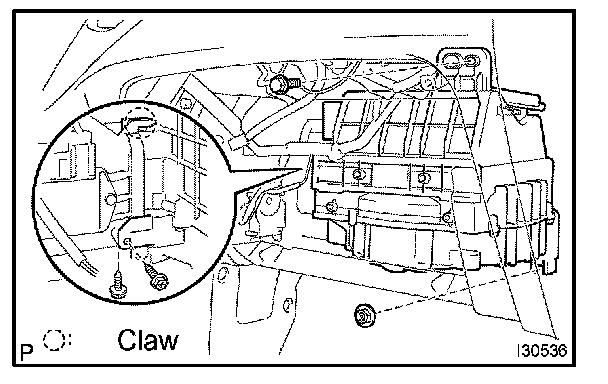

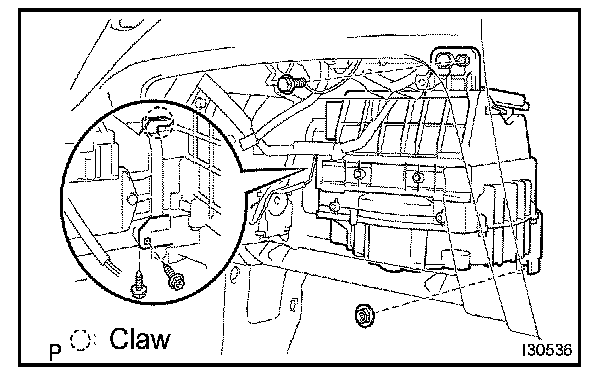

6. REMOVE BLOWER ASSEMBLY
a. Disconnect the connector and clamp of the cooling unit motor w/ fan sub-assembly.
b. Disconnect the connector of the recirculation damper servo.

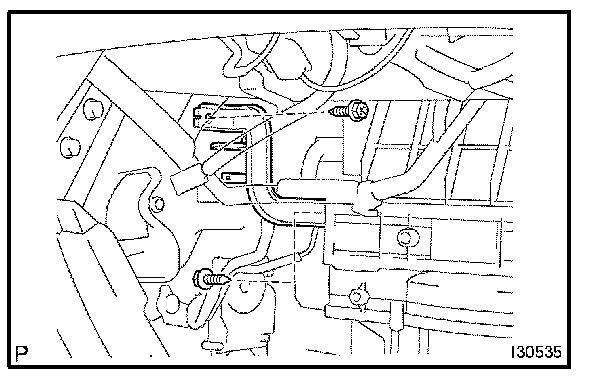

c. Remove the 2 screws and bracket.




d. Remove the bolt, nut and 2 screws.
e. Disconnect the part fitted to the air conditioner radiator assembly and remove the blower assembly.

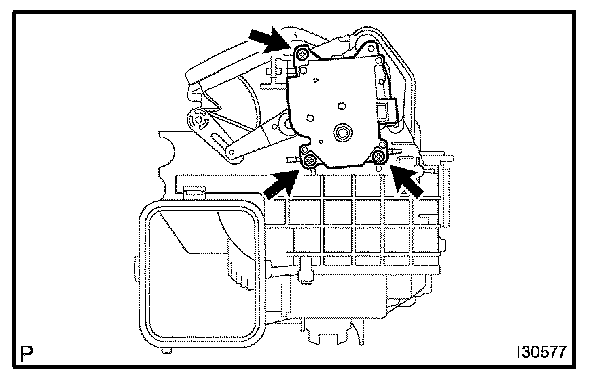

7. REMOVE RECIRCULATION DAMPER SERVO SUB-ASSEMBLY
a. Remove the 3 screws and air inlet servo motor (recirculation damper servo sub-assembly).

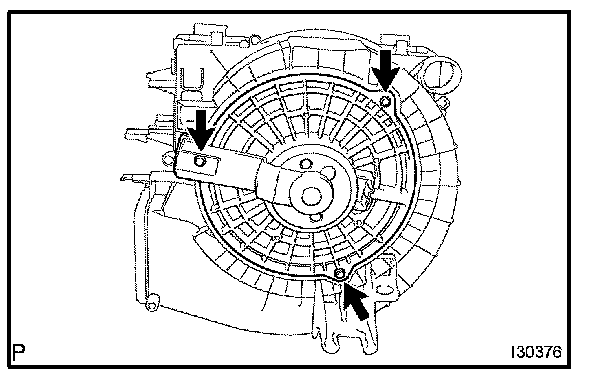

8. REMOVE COOLING UNIT MOTOR SUB-ASSEMBLY W/FAN
a. Remove the 3 screws and cooling unit motor servo sub- assembly w/ fan.




9. INSTALL BLOWER ASSEMBLY
a. Aligning the part to be fitted with that of the air conditioner radiator assembly, install the blower assembly.
b. Install the blower assembly with the bolt, nut and 2 screws.

Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

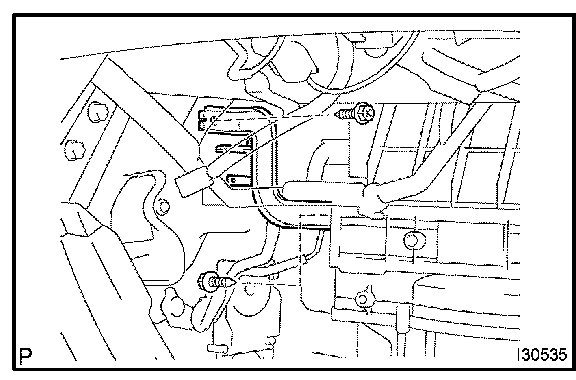

c. Install the bracket with the 2 screws.
d. Install the connector and clamp.

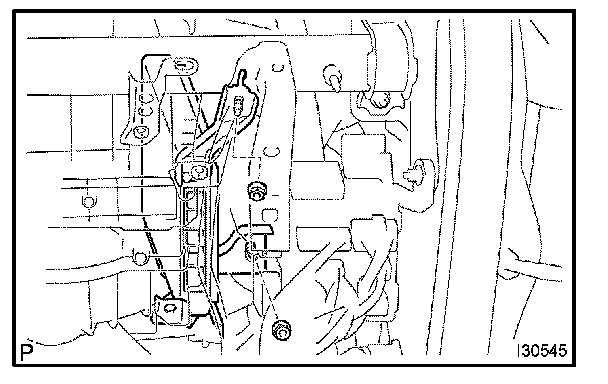

10. INSTALL ECM
a. Install the ECM with the 2 nuts.

Torque: 5.5 N.m (56 kgf.cm, 49 in.lbf)
