Steering Mounted Controls Transmitter: Service and Repair

Audio & Visual System:

STEERING PAD SWITCH LH

REPLACEMENT

HINT:
- Installation is in the reverse order of removal.

1. OBSERVE RESTRAINT SYSTEMS SERVICE PRECAUTIONS
2. SEPARATE BATTERY NEGATIVE TERMINAL
3. REMOVE STEERING WHEEL COVER LOWER NO.2
4. REMOVE STEERING WHEEL COVER LOWER NO.3
5. REMOVE HORN BUTTON ASSEMBLY

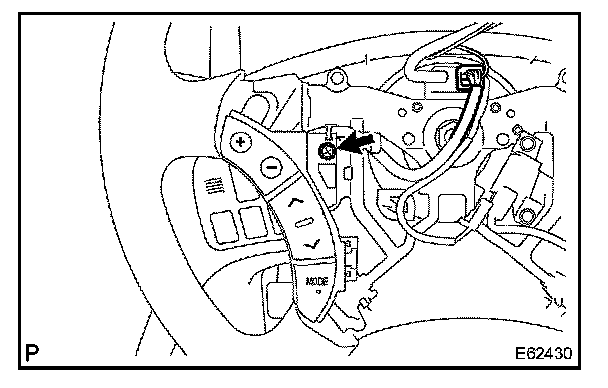

6. REMOVE STEERING PAD SWITCH LH
a. Disconnect the connector.
b. Disconnect the connector of cruise control main switch.
c. Remove the screw.




d. Release the 2 pin fittings and remove the steering pad switch LH.

7. INSTALL HORN BUTTON ASSEMBLY
8. CONNECT BATTERY NEGATIVE TERMINAL
9. INSPECT HORN BUTTON ASSEMBLY
10. INSPECT SRS WARNING LIGHT
