Toyota Truck
>>
2005
>>
Highlander 2WD V6-3.3L (3MZ-FE)
>>
Repair and Diagnosis
>>
A L L Diagnostic Trouble Codes ( DTC )
>>
Testing and Inspection
>>
Diagnostic Trouble Code Descriptions
>>
Multiplex Communication System
Multiplex Communication System

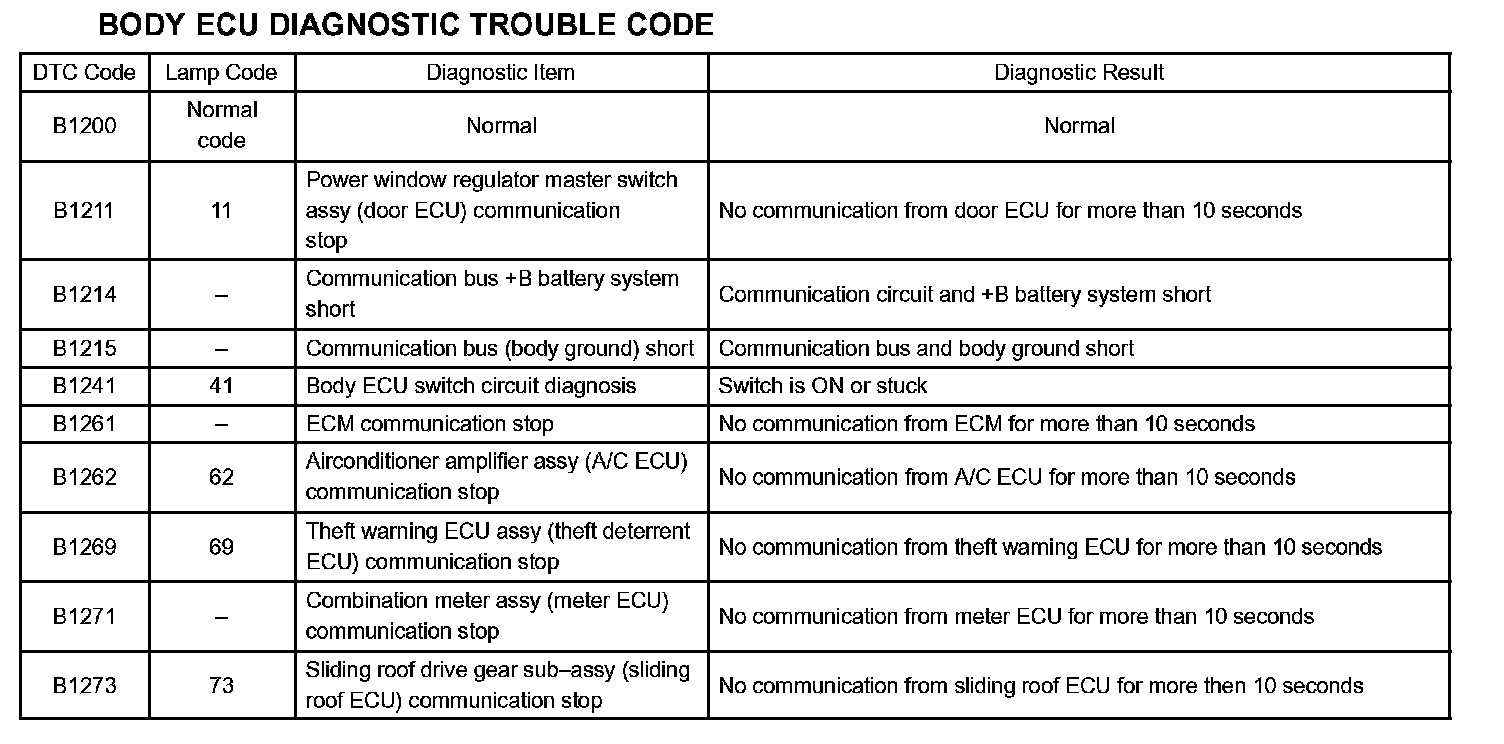

DIAGNOSTIC TROUBLE CODE CHART
B1200 - B1273:
1.
BODY ECU DIAGNOSTIC TROUBLE CODE
