Engine Control System - SFI System

DIAGNOSTIC TROUBLE CODE CHART

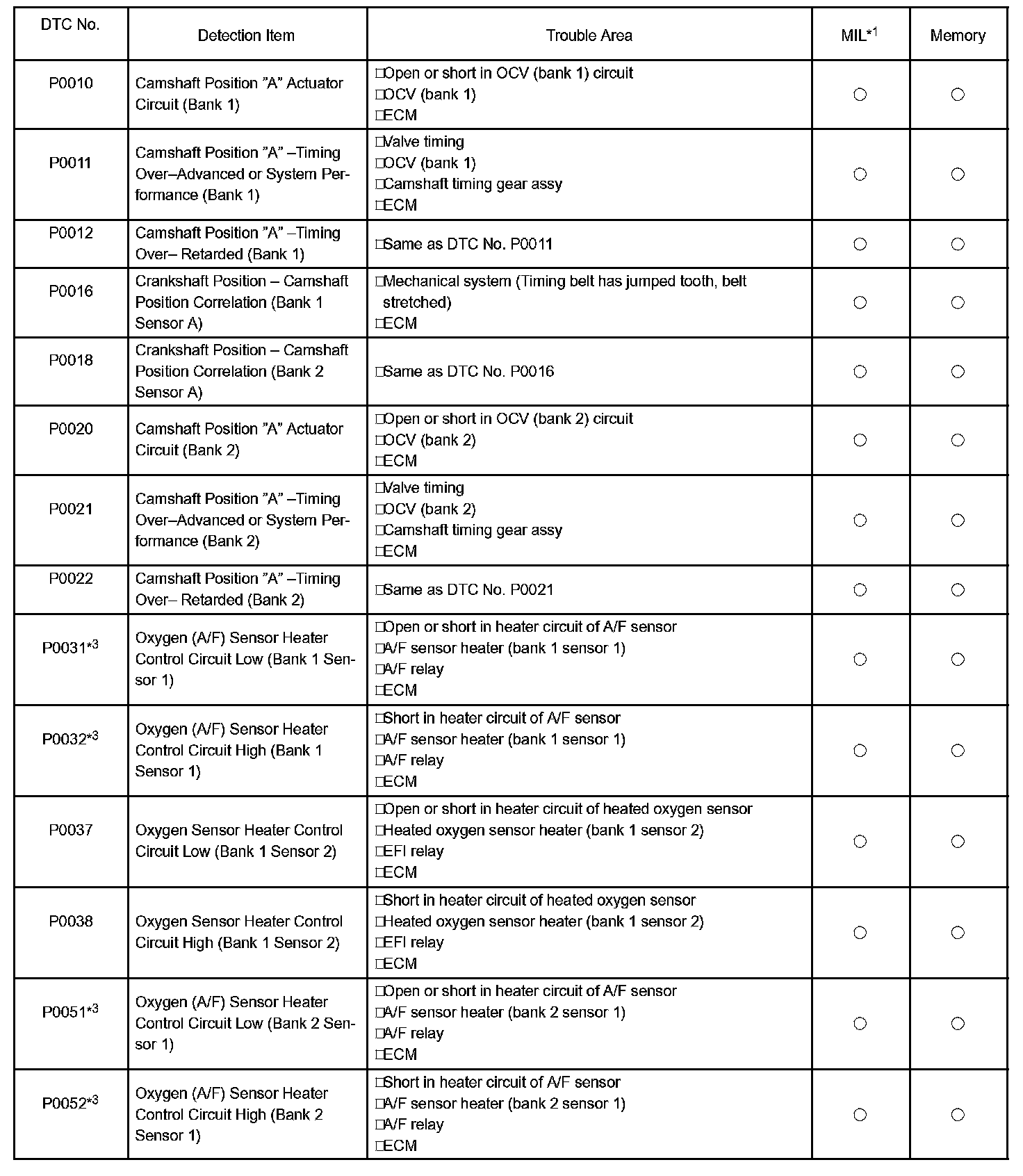

P0010 - P0052:

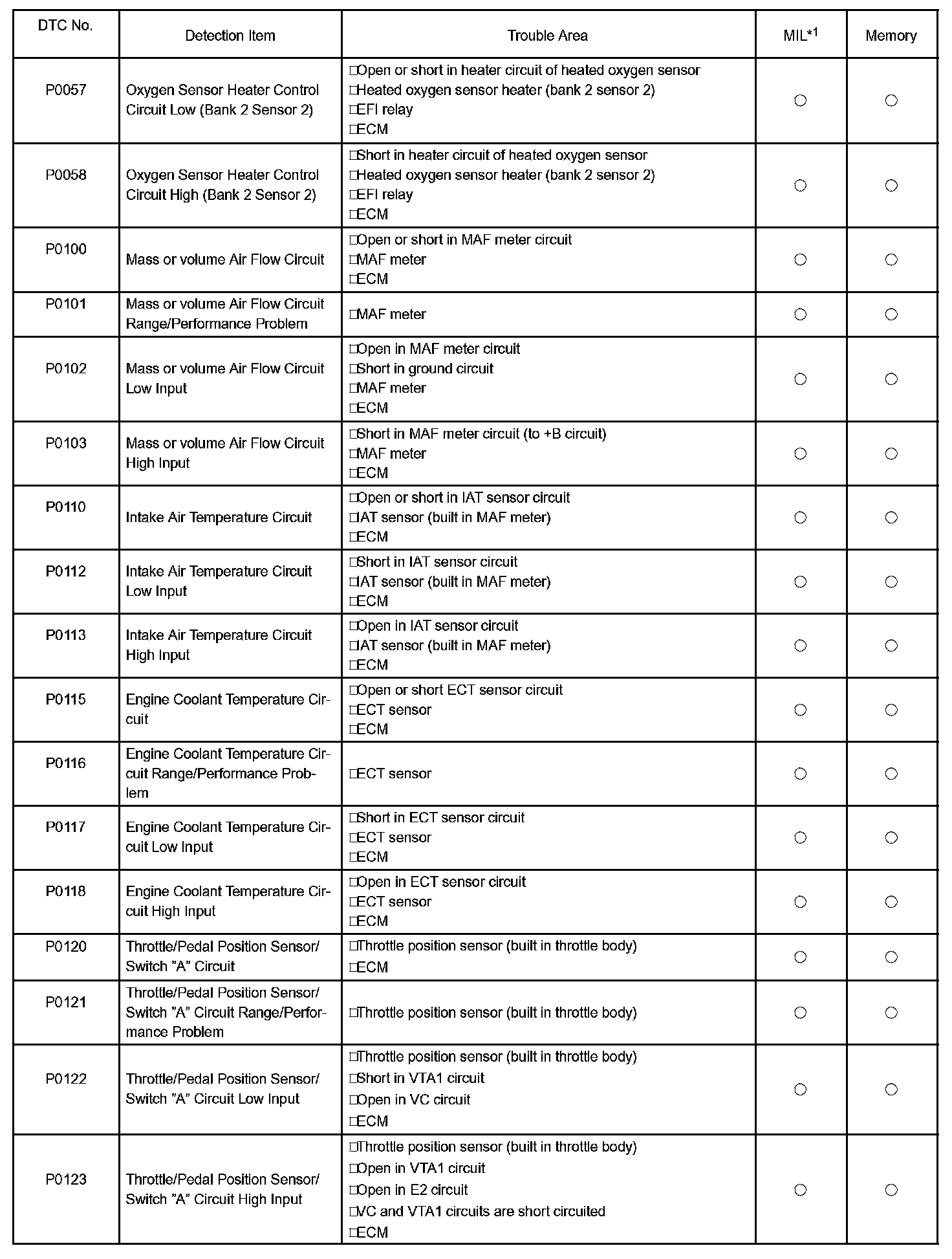

P0057 - P0123:

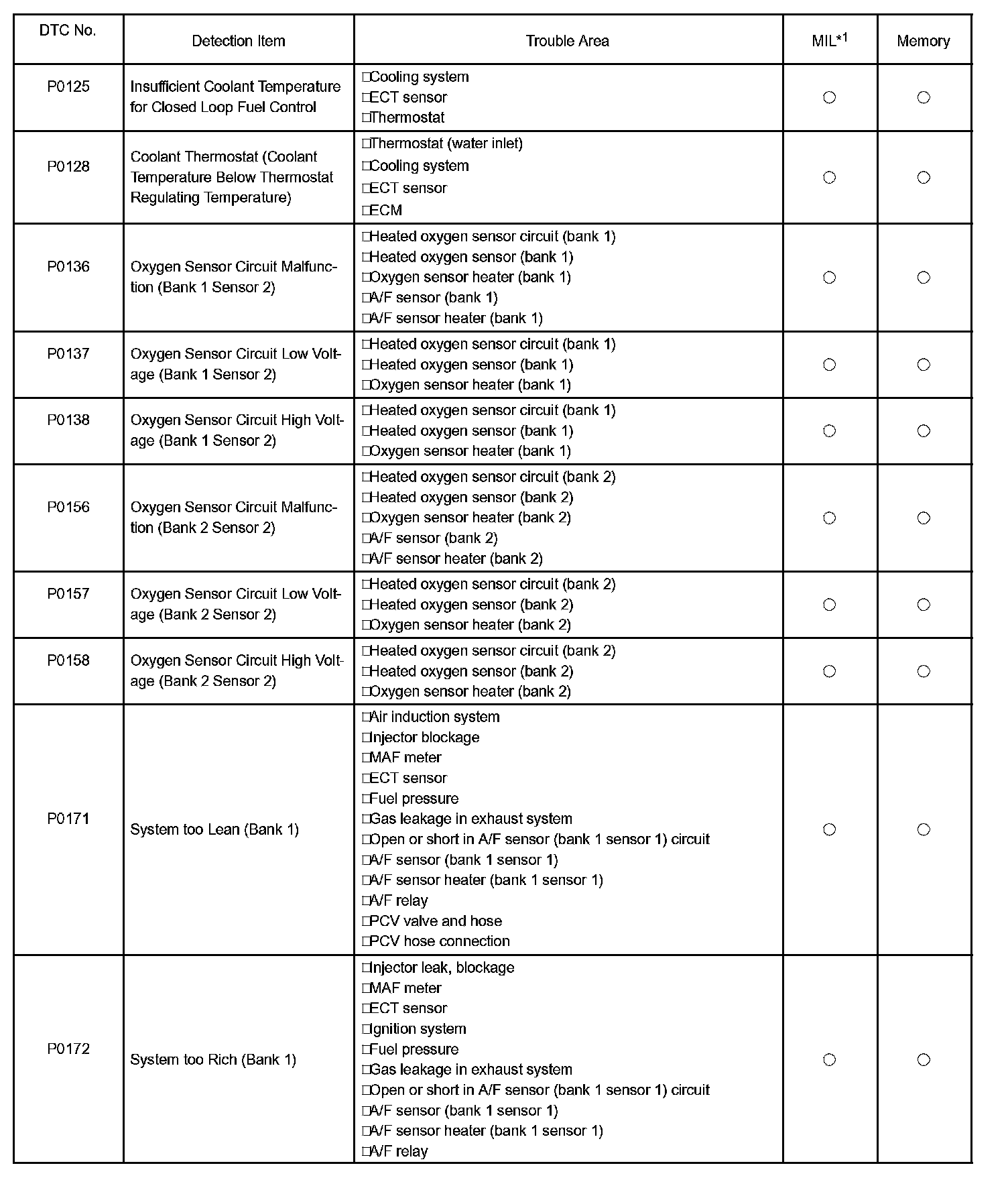

P0125 - P0172:

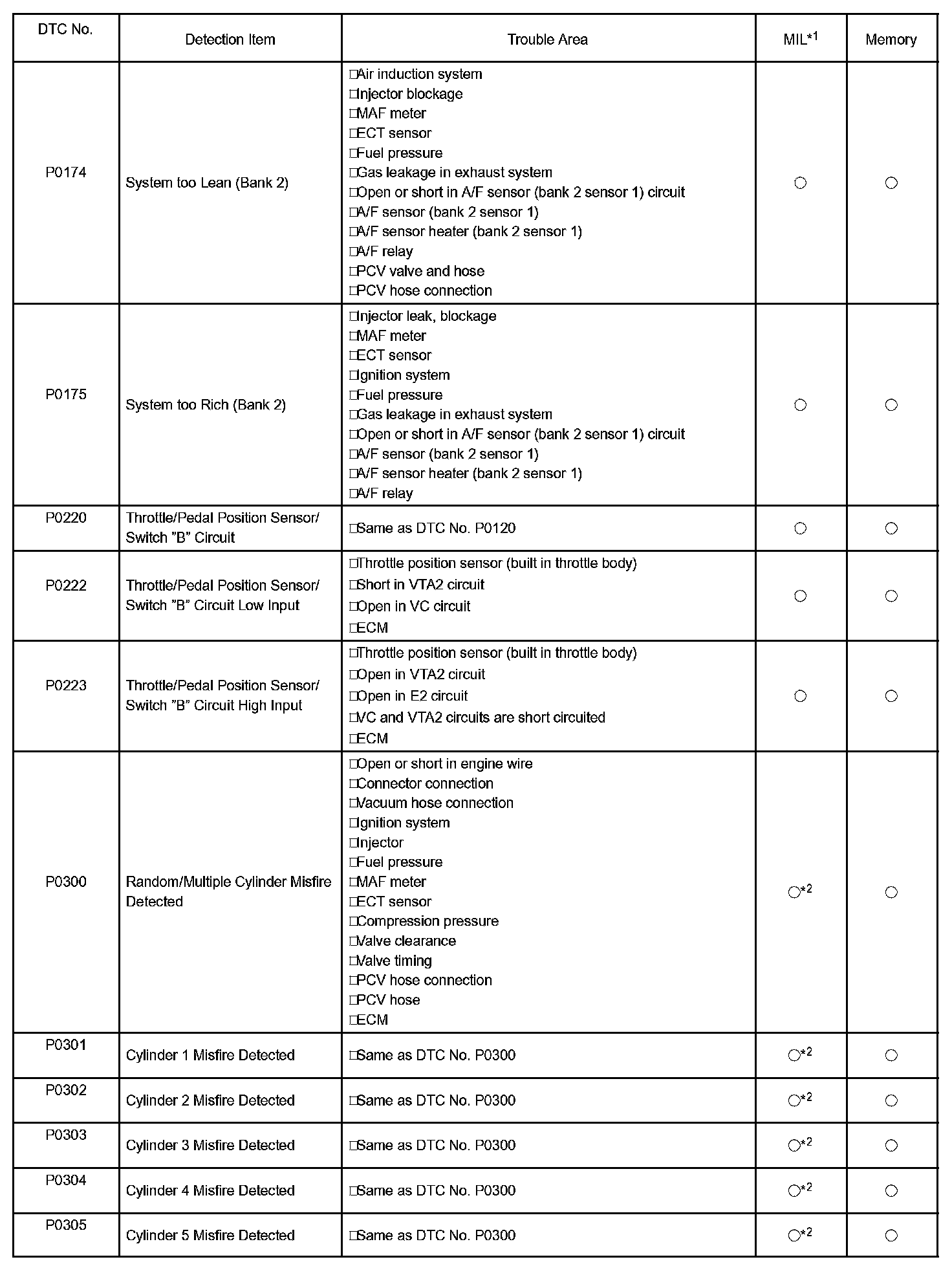

P0174 - P0305:

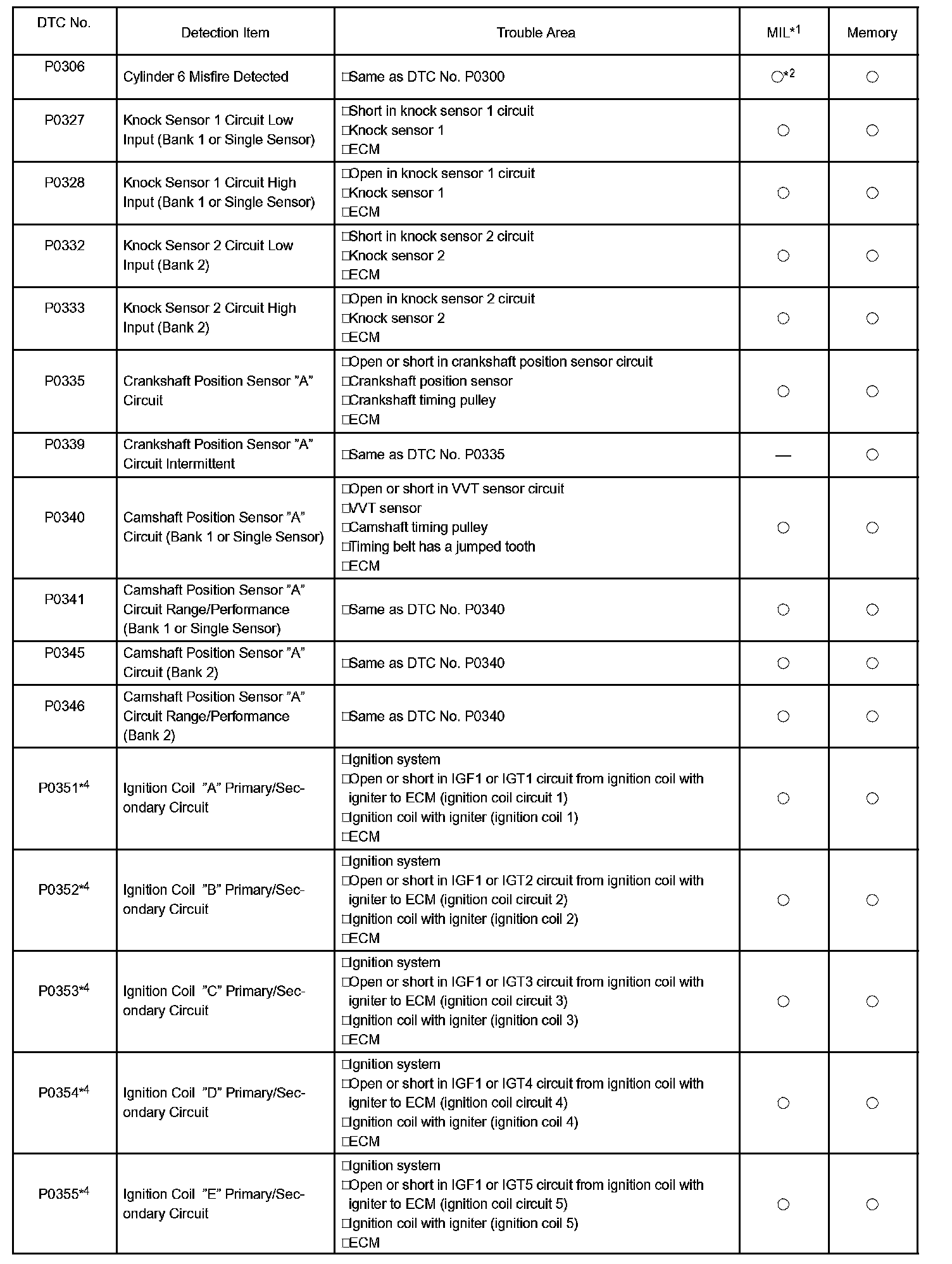

P0306 - P0355:

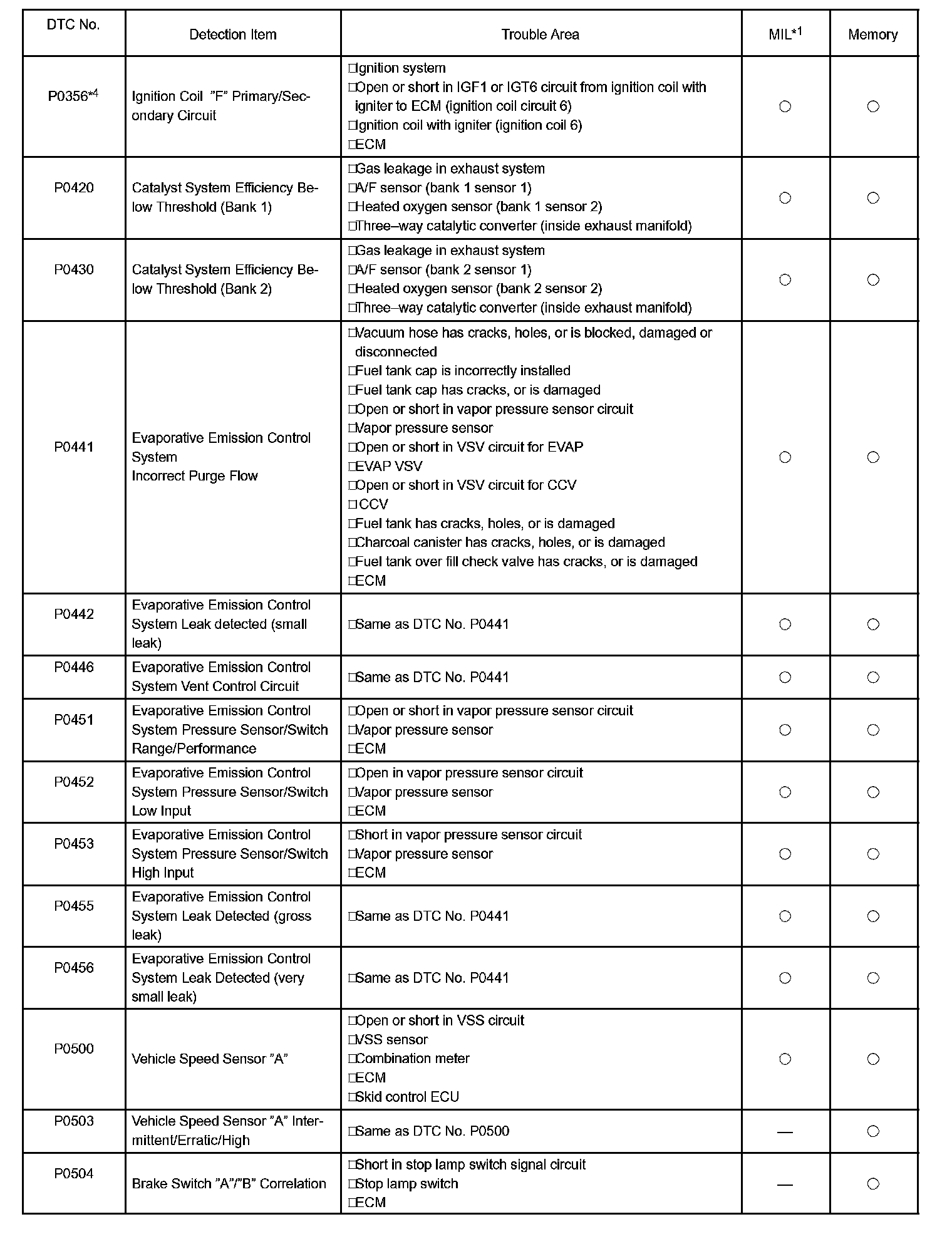

P0356 - P0504:

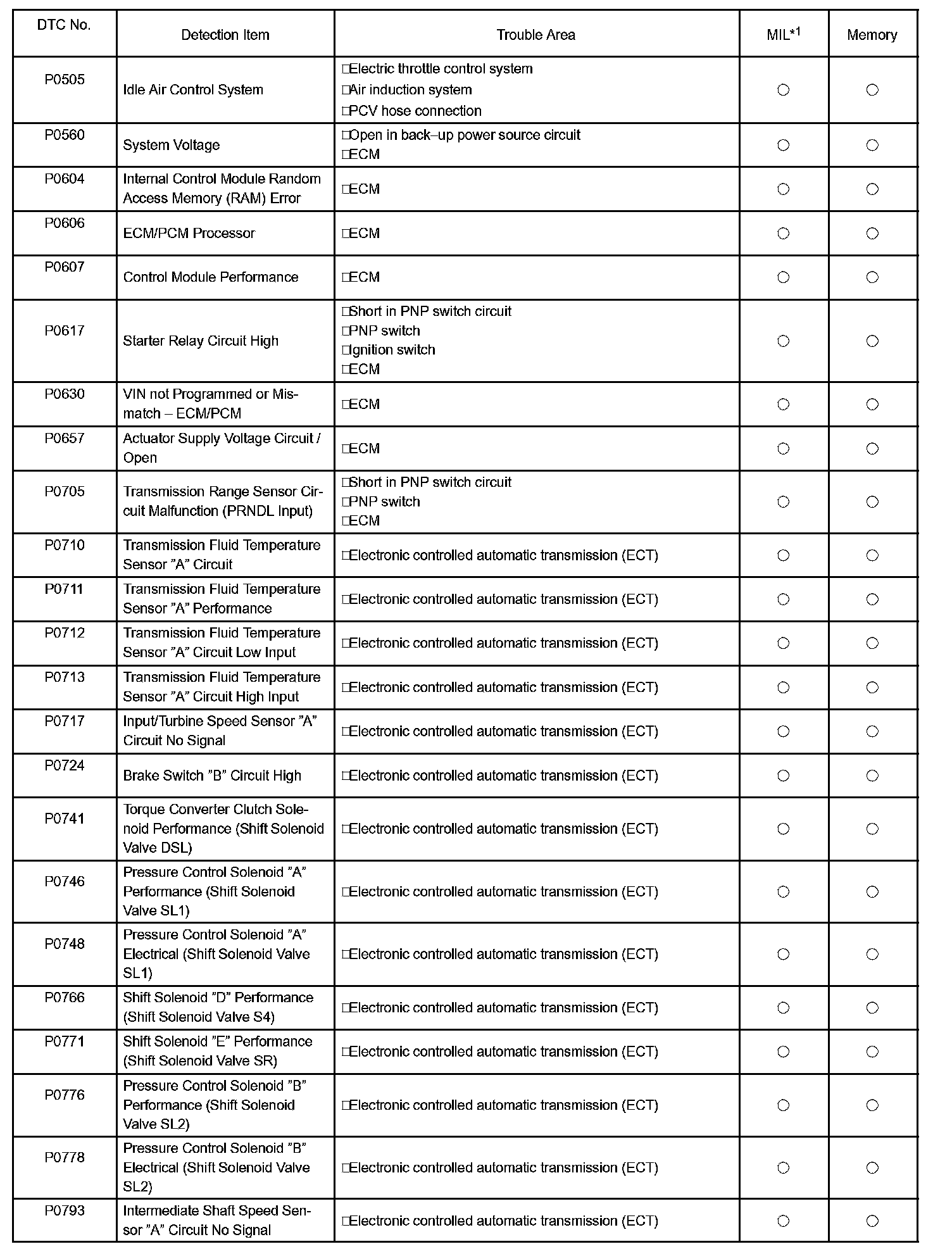

P0505 - P0793:

P0796 - P2128:

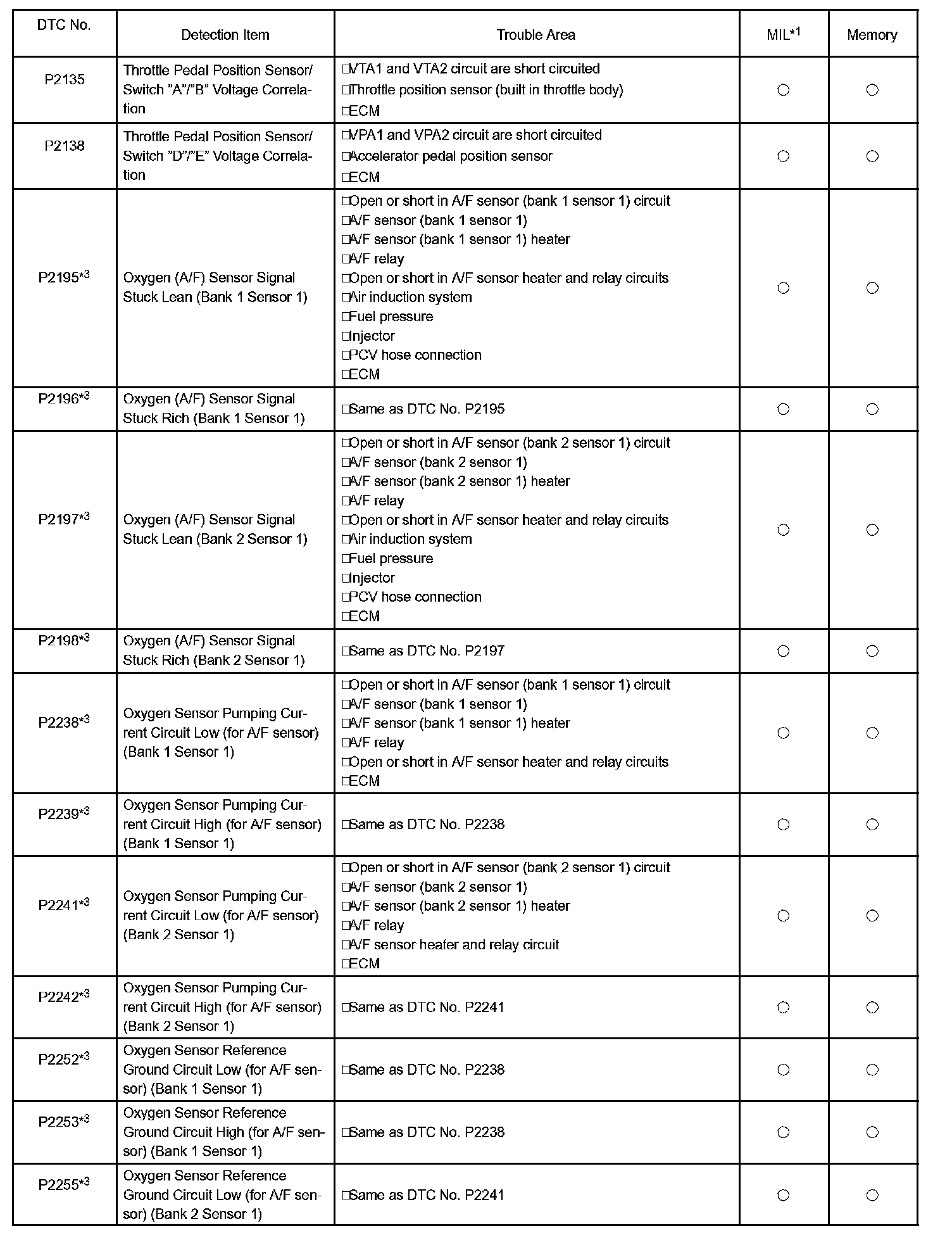

P2135 - P2255:

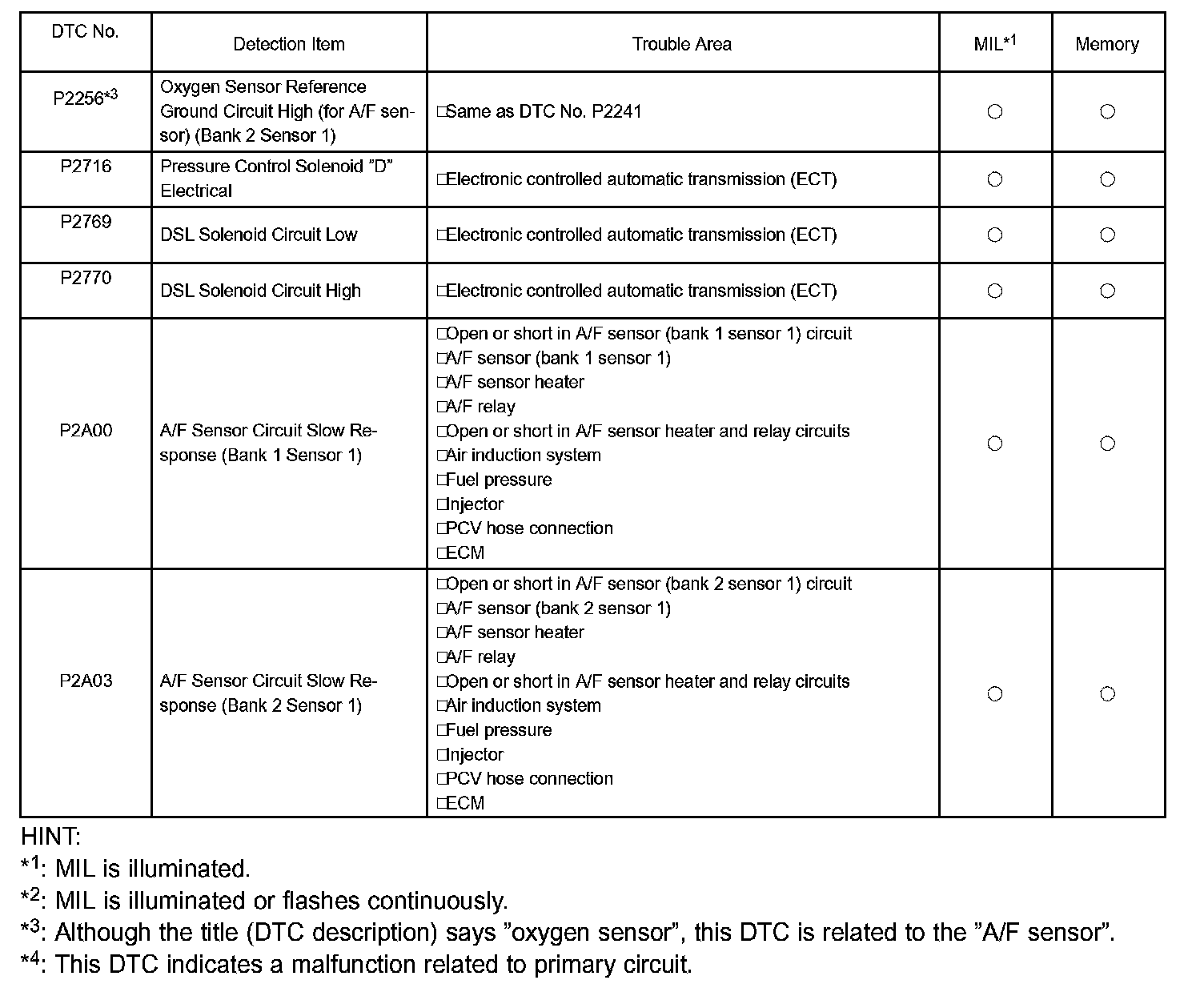

P2256 - P2A03:

HINT: Parameters listed in the chart may be different than your readings depending on the type of instrument used and other factors.

During the DTC check, refer to the table if a malfunction code is displayed. For details about each code, refer to the DTC Chart's left column.
