Removal and Installation

Starter Assy:

REPLACEMENT

NOTE: Before changing the starter, check the following again:
- Connector connection
- Accessory installation

1. REMOVE BATTERY
2. REMOVE BATTERY TRAY

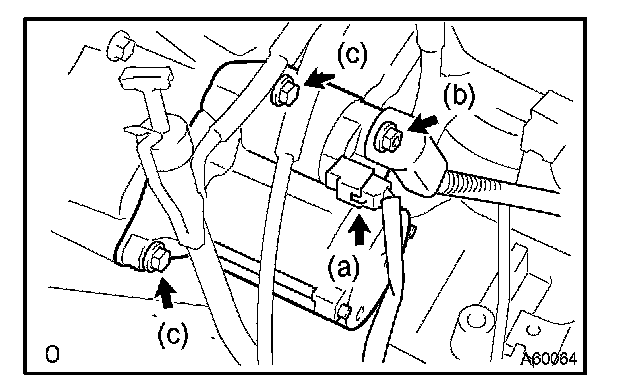

3. REMOVE STARTER ASSEMBLY
a. Disconnect the starter connector.
b. Open the terminal cap, remove the nut and disconnect the starter wire.
c. Remove the 2 bolts and starter.

4. INSTALL STARTER ASSEMBLY
a. Install the starter with the 2 bolts.

Torque: 37 Nm (377 kgf.cm, 27 ft.lbf)

b. Install the starter wire with the nut.

Torque: 9.8 Nm (100 kgf.cm, 7 ft.lbf)

c. Connect the starter connector.

5. INSTALL BATTERY TRAY
6. INSTALL BATTERY
a. Install the battery clamp with the bolt and nut.

Torque: 5.5 Nm (56 kgf.cm, 49 in.lbf)

b. Connect the cables to the battery terminals.

Torque: 3.5 Nm (36 kgf.cm, 31 in.lbf)
