Ignition Switch Circuit

IGNITION SWITCH CIRCUIT

CIRCUIT DESCRIPTION
This circuit detects the state of the ignition switch and sends it to the multiplex network body ECU.

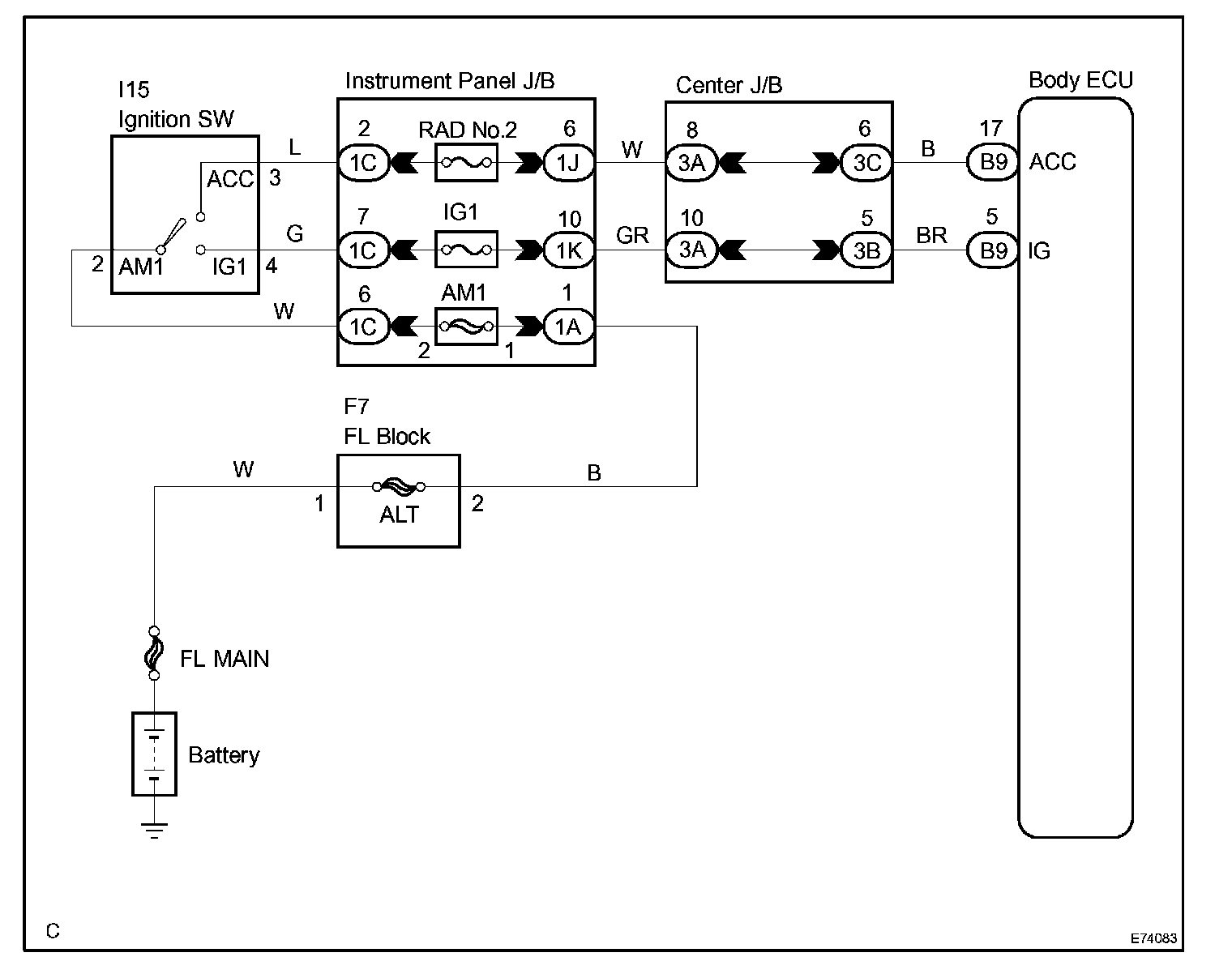

Wiring Diagram:

INSPECTION PROCEDURE

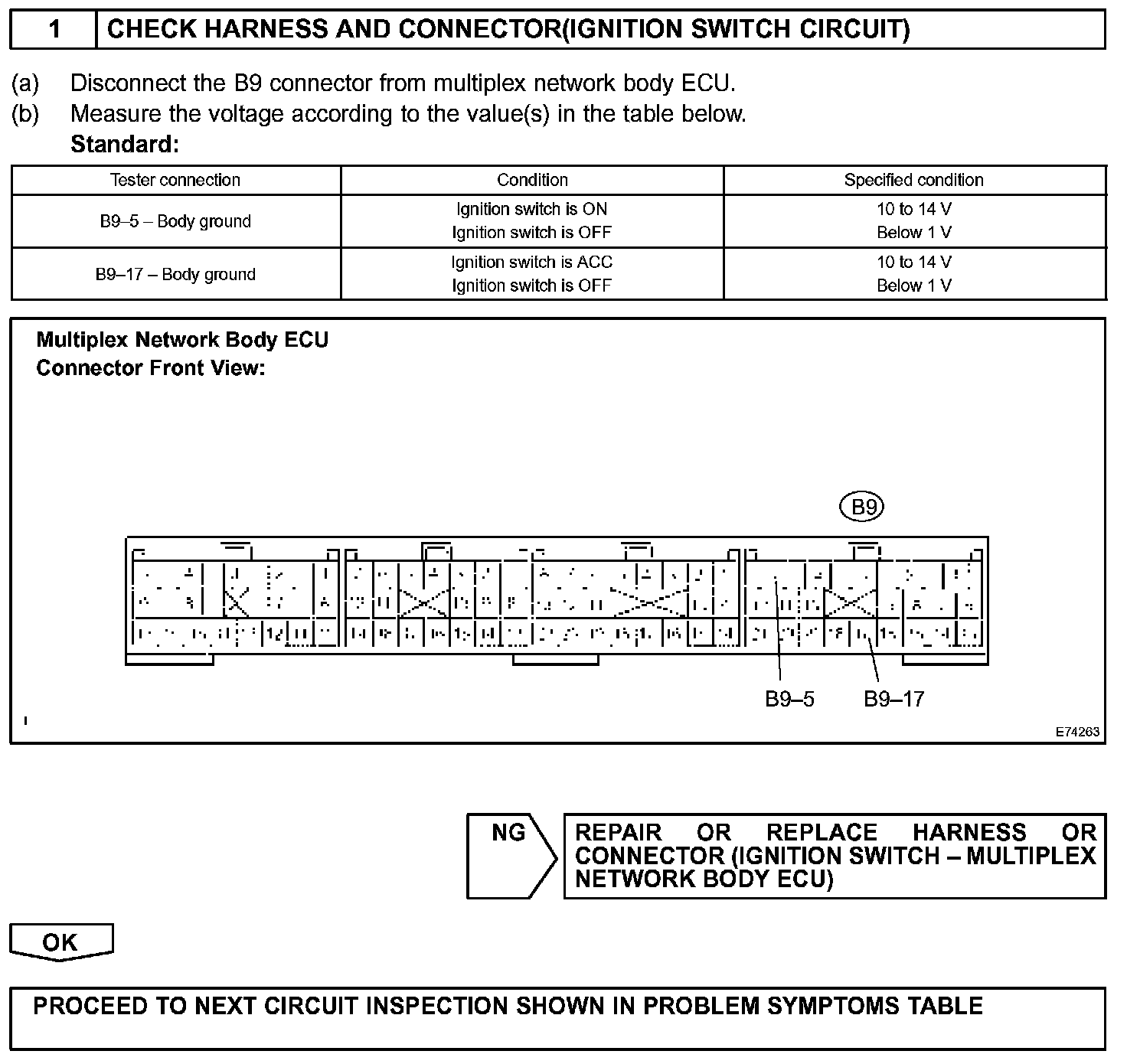

Step 1:

HINT: Inspect if another system (engine, wiper and so on) is normal before performing this procedure.
