Map Light: Testing and Inspection

MAP LAMP ASSEMBLY




a. Inspect the map lamp in the overhead J/B.

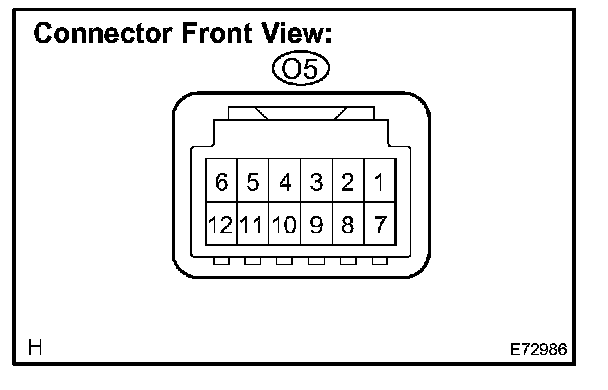

1. Connect the positive (+) lead from the battery to terminal 12 and negative (-) lead to terminal 1, then check that the lamp comes on when the switch is in the ON position.
2. Connect the positive (+) lead from the battery to terminal 12 and negative (-) lead to terminal 7, then check that the lamp comes on when the switch is in the DOOR position.
