Skid Control Buzzer Circuit
SKID CONTROL BUZZER CIRCUITCIRCUIT DESCRIPTION
The skid control buzzer sounds and Slip Indicator blinking during VSC operation.

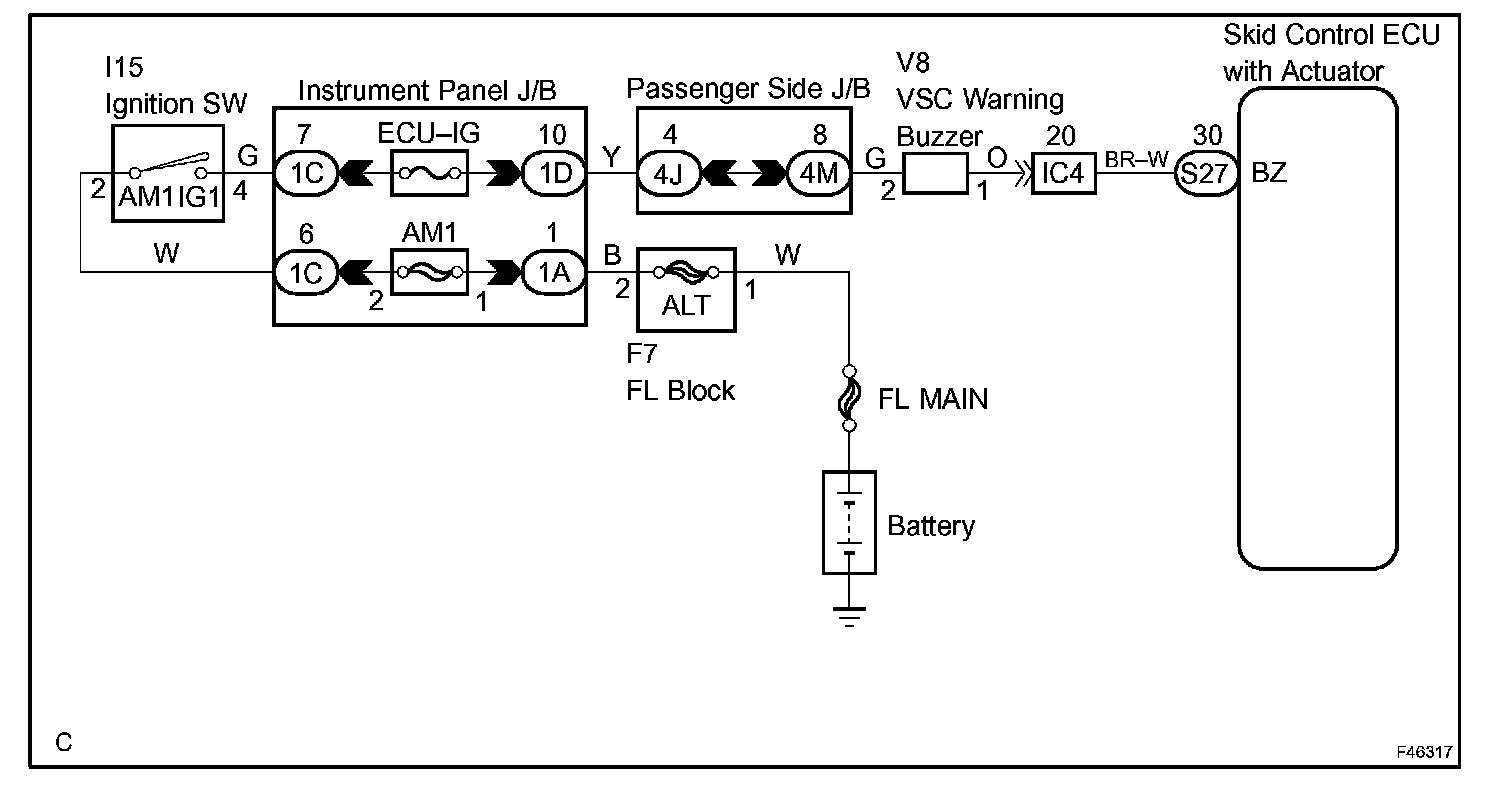

Wiring Diagram:
INSPECTION PROCEDURE

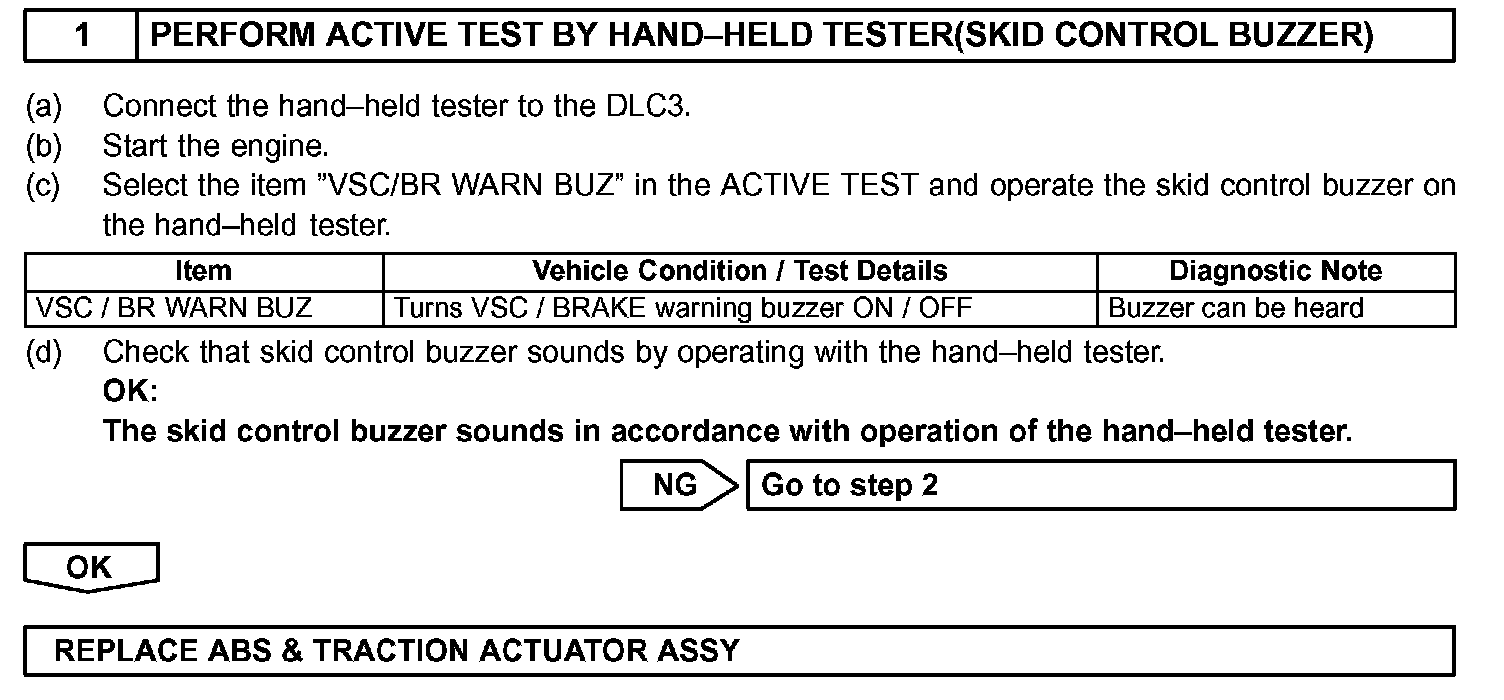

Step 1:

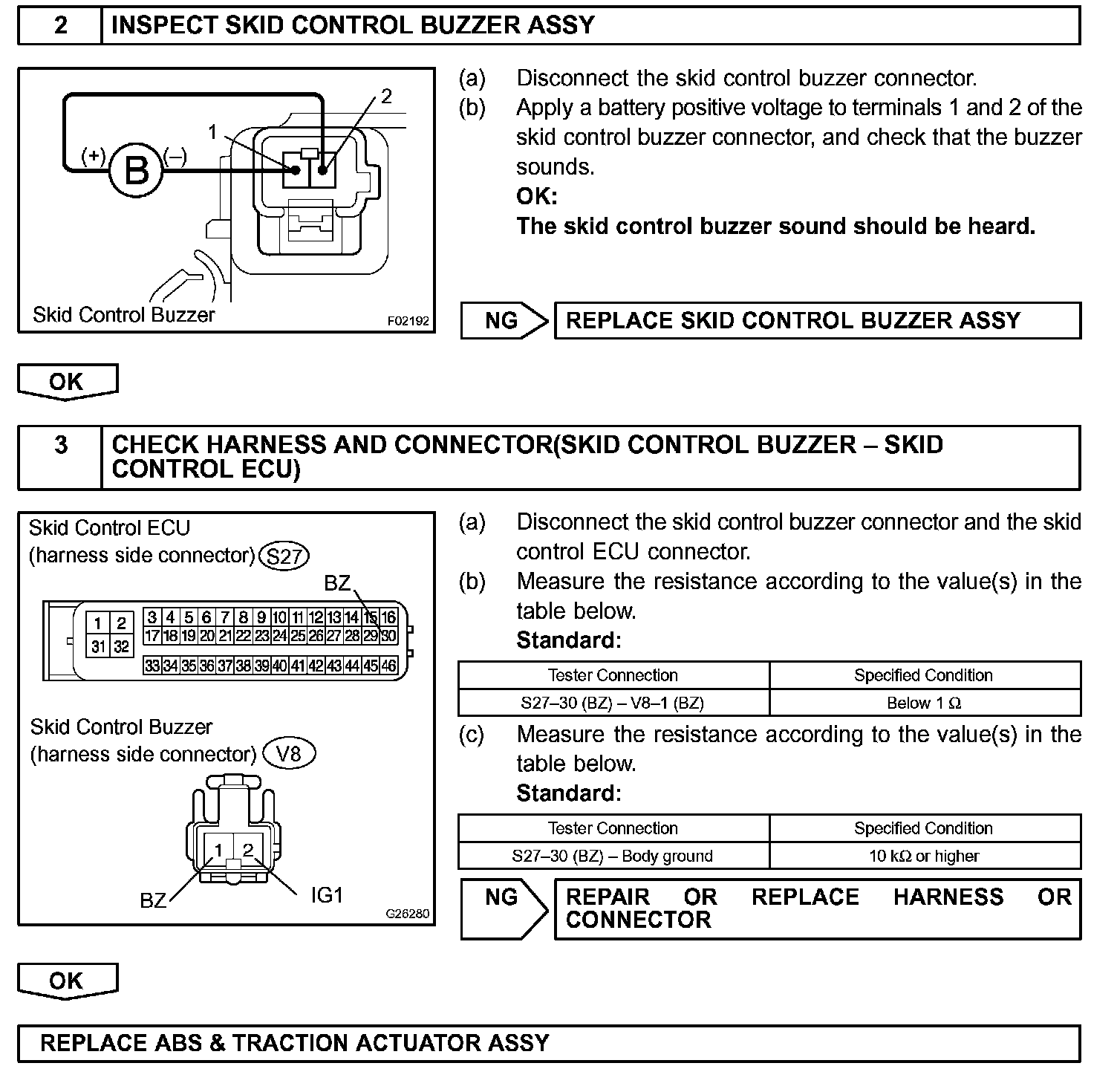

Step 2 - 3:
HINT: Start the inspection from step 1 when using the hand-held tester and start from step 2 when not using the hand-held tester.
