Replacement
REPLACEMENT1. REMOVE ENGINE UNDER COVER ASSEMBLY REAR
a. Remove the 4 bolts and engine under cover assembly rear.
2. REMOVE EXHAUST FRONT PIPE ASSEMBLY NO.2

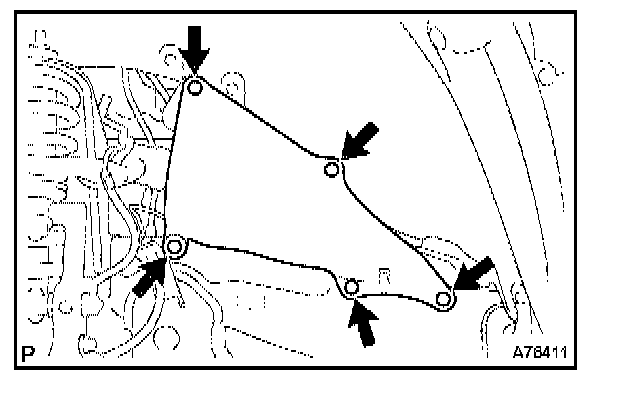

3. REMOVE FRONT FENDER SPLASH SHIELD REAR LH
a. Remove the 5 clips and front fender splash shield rear LH.

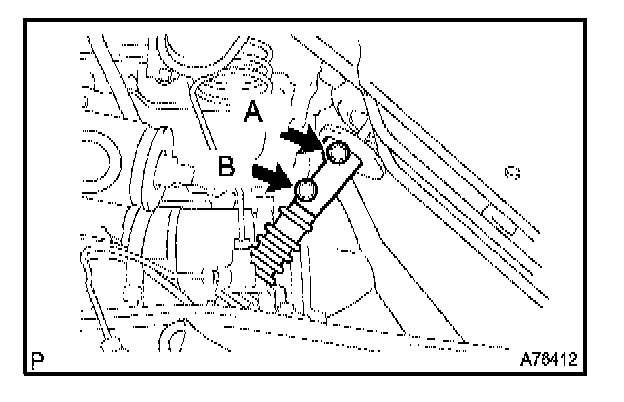

4. SEPARATE STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY NO.2
a. Loosen the bolt A and remove the bolt B, then separate the steering intermediate shaft No. 2.
5. REMOVE STARTER ASSEMBLY
a. Disconnect the terminal 50 connector from the starter assembly.
b. Remove the nut and disconnect the wire harness from the terminal 30.
c. Remove the 2 bolts and starter assembly.
6. INSTALL STARTER ASSEMBLY
a. Install the starter assembly with the 2 bolts.
Torque: 37 N.m (377 kgf.cm, 27 ft.lbf)
b. Connect the wire harness to the terminal 30 and install the nut.
Torque: 9.8 N.m (100 kgf.cm, 7 ft.lbf)
c. Connect the terminal 50 to the starter assembly.

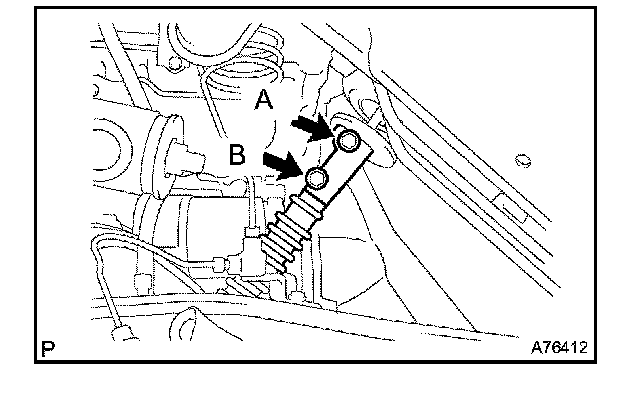

7. INSTALL STEERING INTERMEDIATE SHAFT SUB-ASSEMBLY NO.2
a. Install the steering sliding yoke to steering intermediate shaft No. 2.
b. Install the bolt B and tighten the bolt B and A.
Torque: 36 N.m (370 kgf.cm, 27 ft.lbf) for bolt A, B
8. INSTALL FRONT FENDER SPLASH SHIELD REAR LH
a. Install the front fender splash shield rear LH with the 5 clips.
9. INSTALL EXHAUST FRONT PIPE ASSEMBLY NO.2
10. INSTALL ENGINE UNDER COVER ASSEMBLY REAR
a. Install the engine under cover assembly rear with the 4 bolts.
Torque: 29 N.m (296 kgf.cm, 21 ft.lbf)
