Fuse: Application and ID

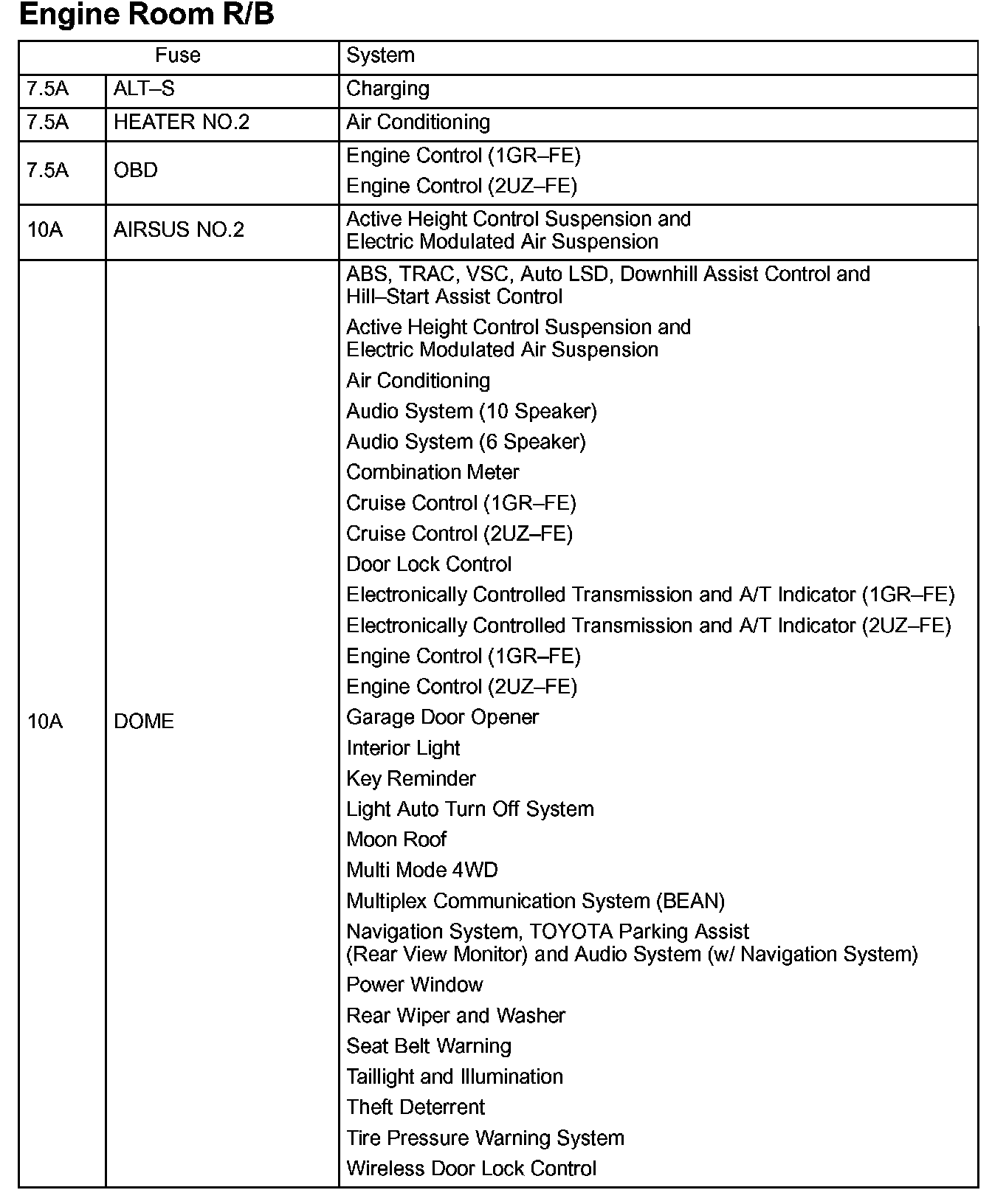

Engine Room R/B Part 1:
Engine Room R/B Part 2:
Engine Room R/B Part 3:
Engine Room R/B Part 4:

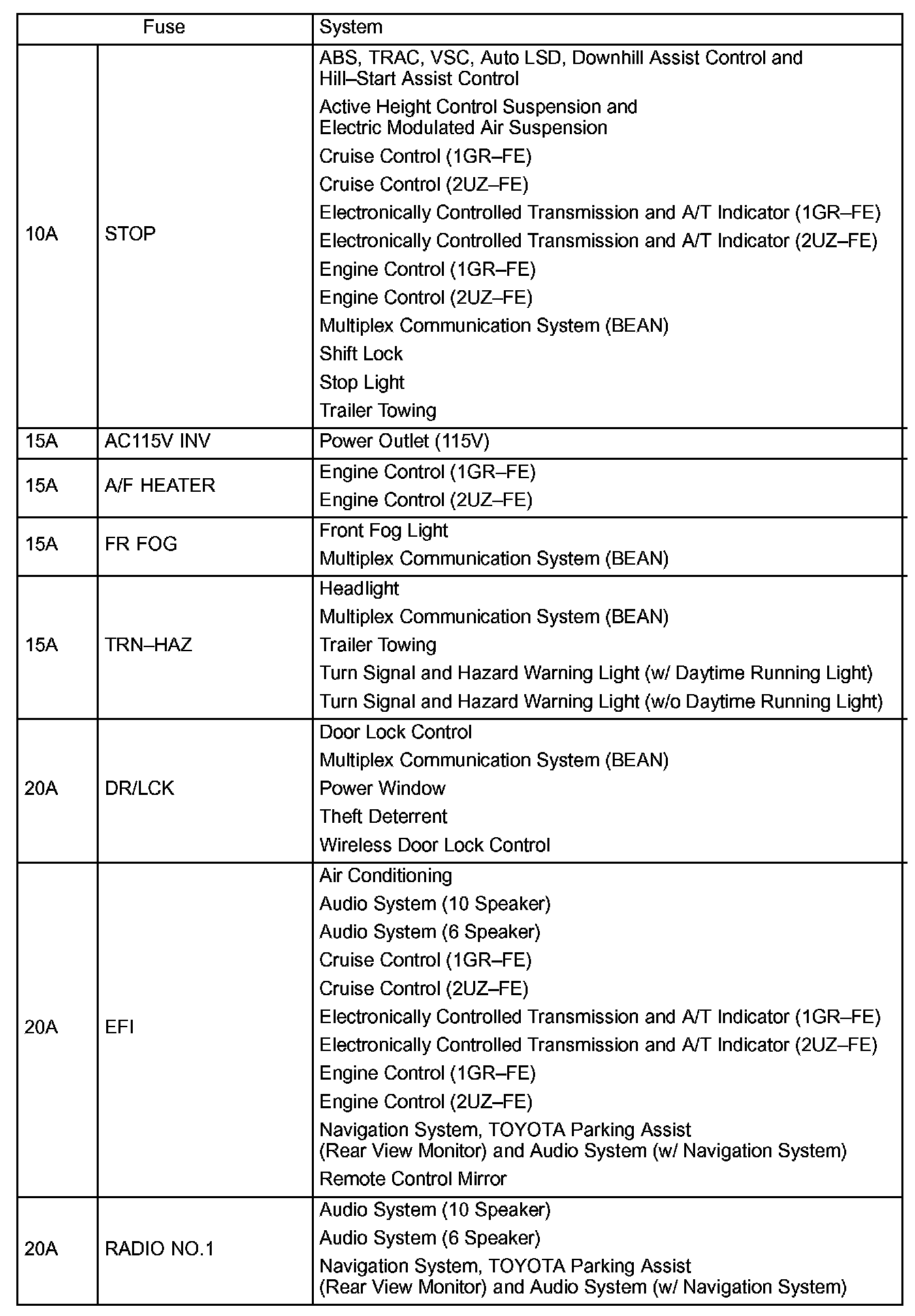

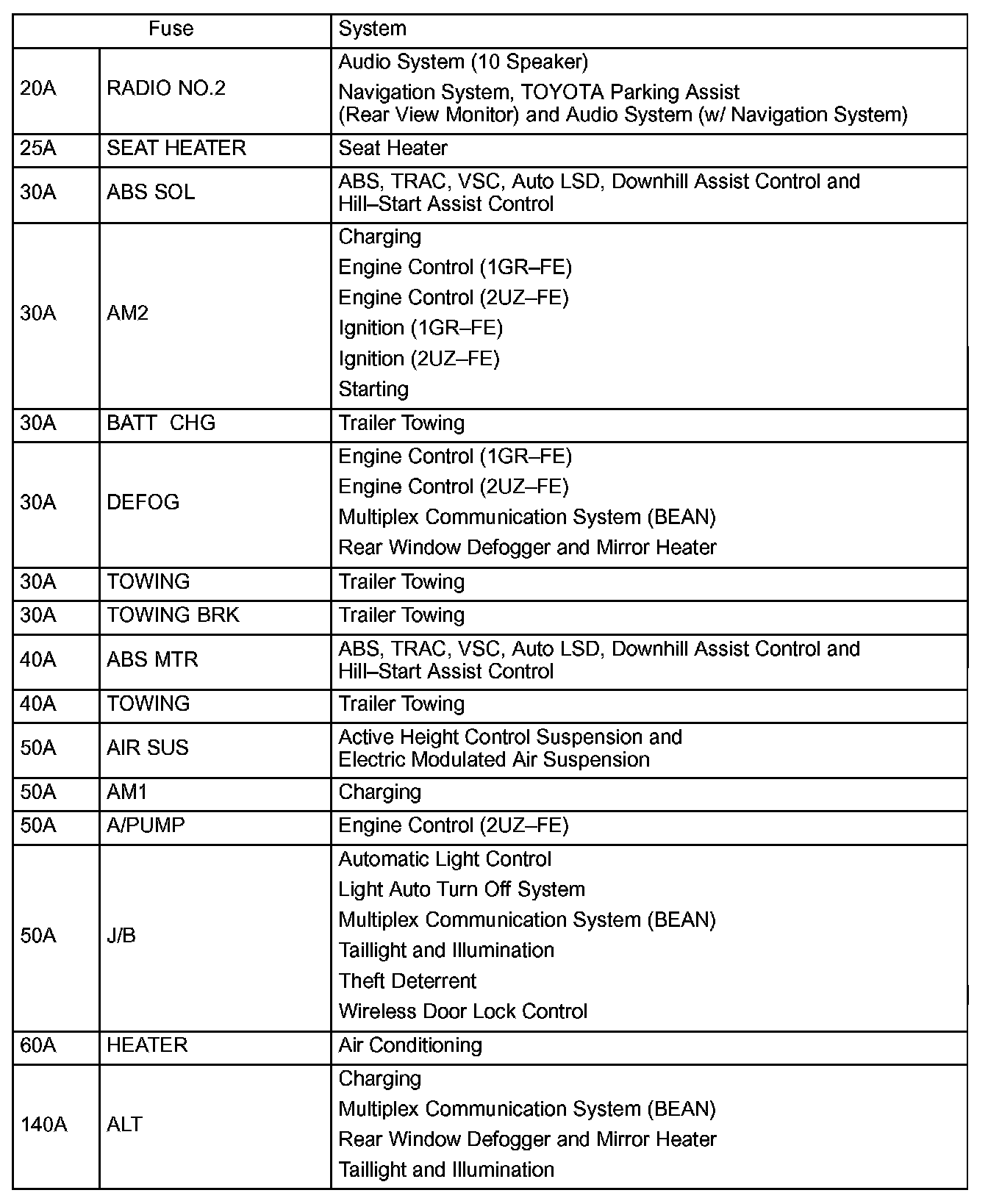

Engine Room Fuse Details
Driver Side J/B Part 1:
Driver Side J/B Part 2:
Driver Side J/B Part 3:
Driver Side J/B Part 4:

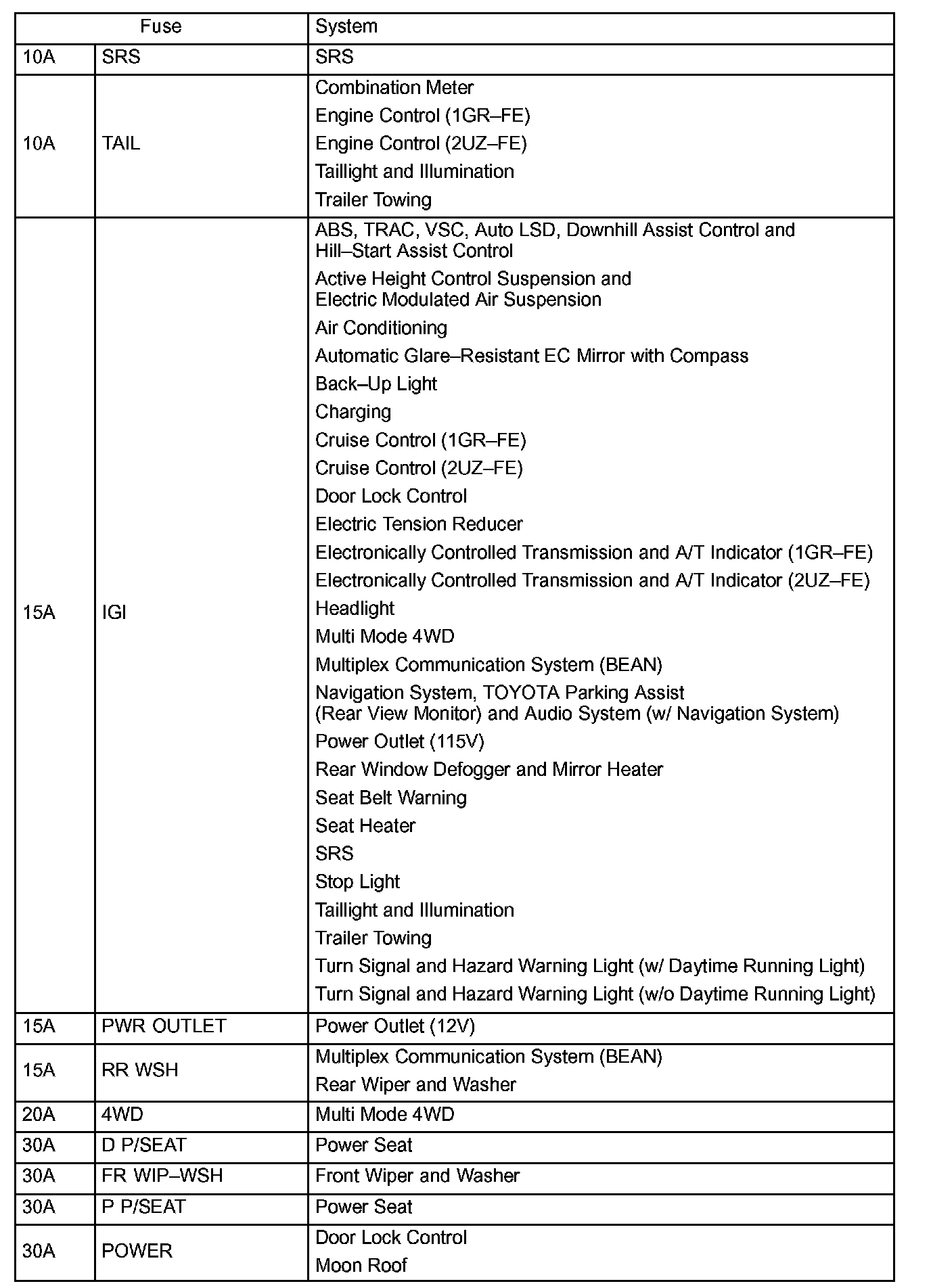

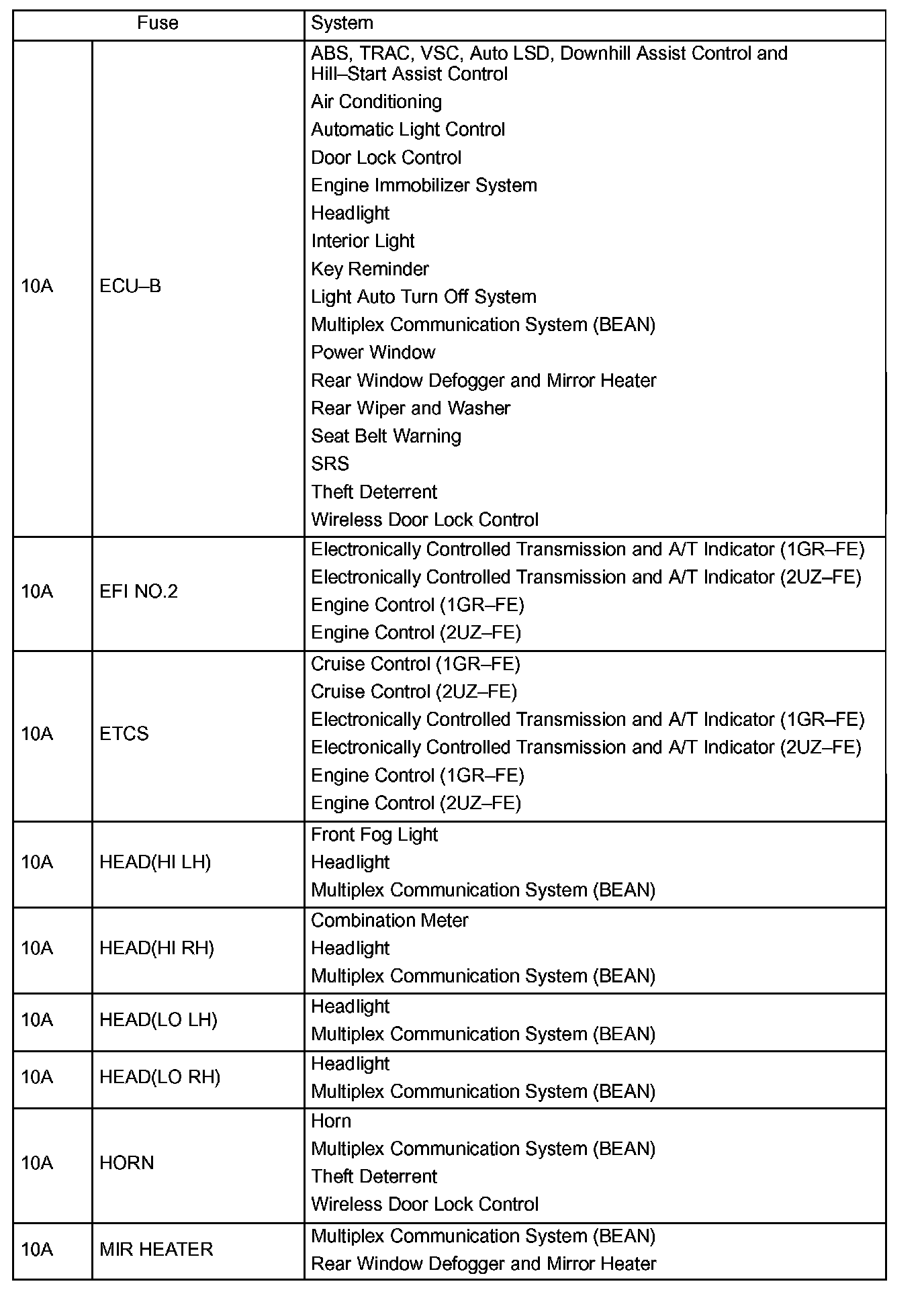

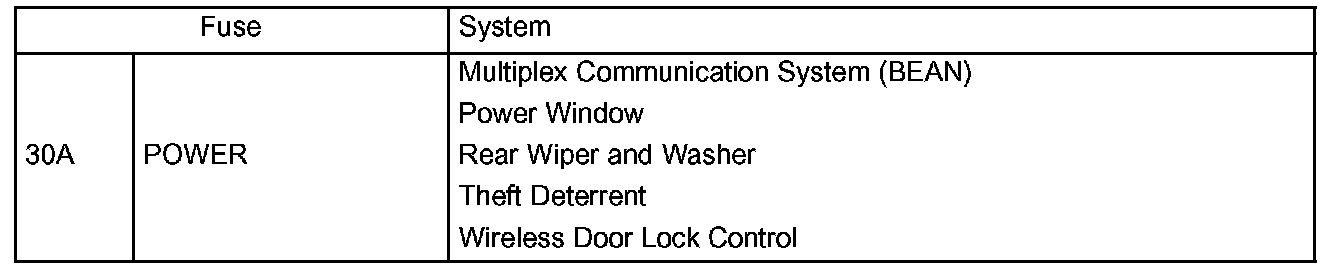

Interior Panel Fuse Details
