Toyota Truck
>>
2005
>>
4 Runner 4WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Suspension
>>

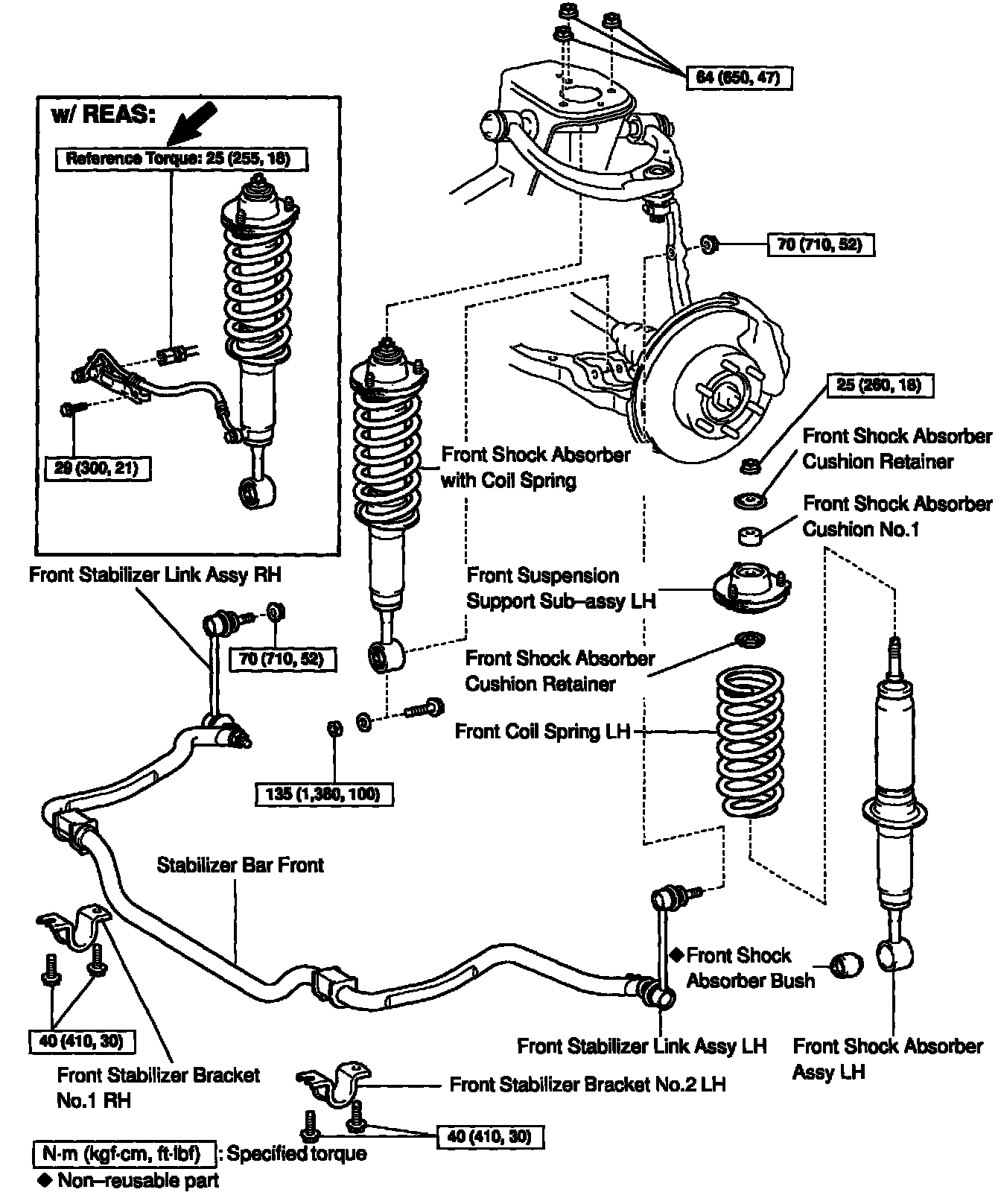

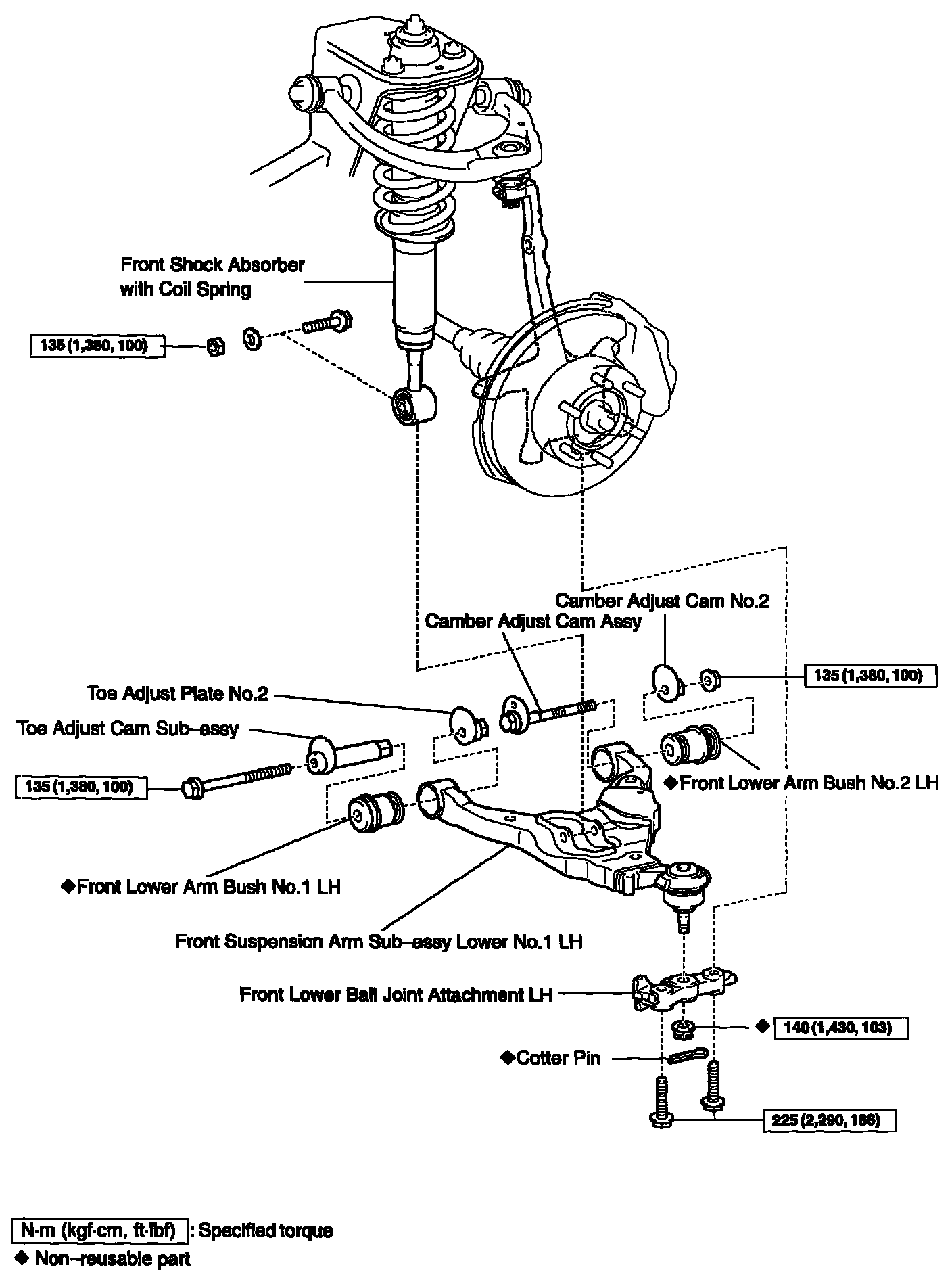

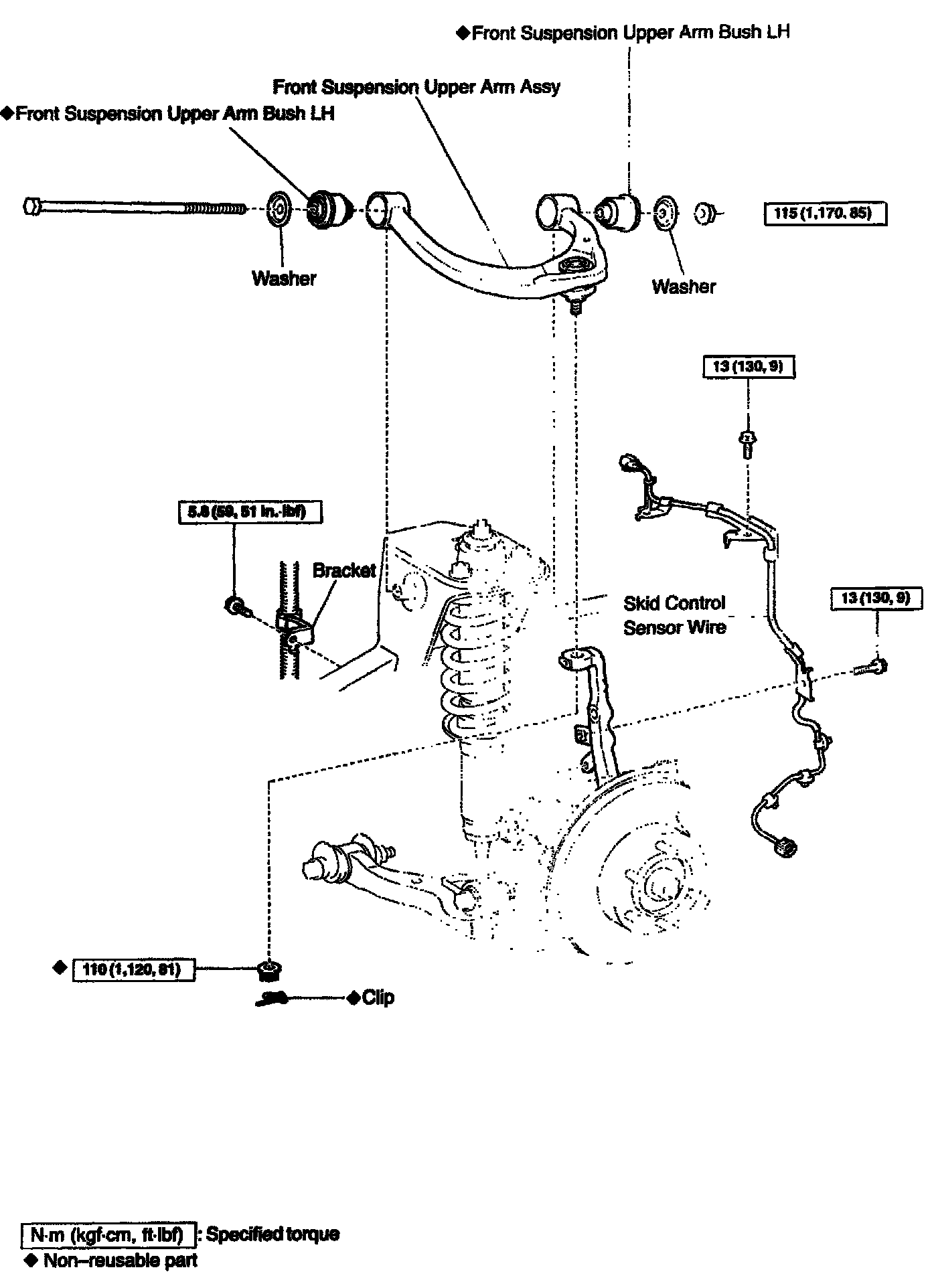

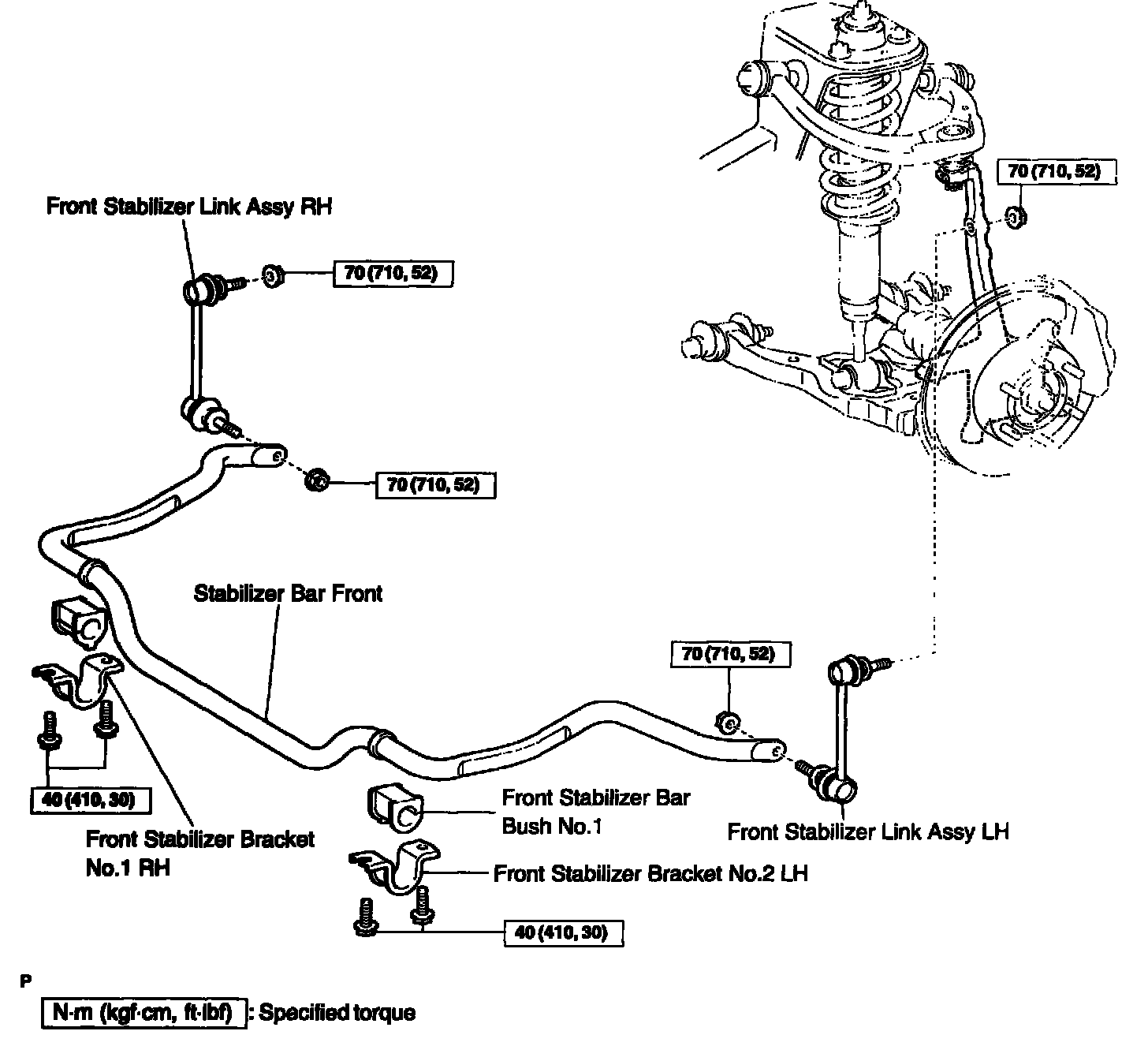

System Diagram
System Diagram
FRONT
SUSPENSION
W/ RELATED COMPONENTS
