Toyota Truck
>>
2005
>>
4 Runner 4WD V6-4.0L (1GR-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>

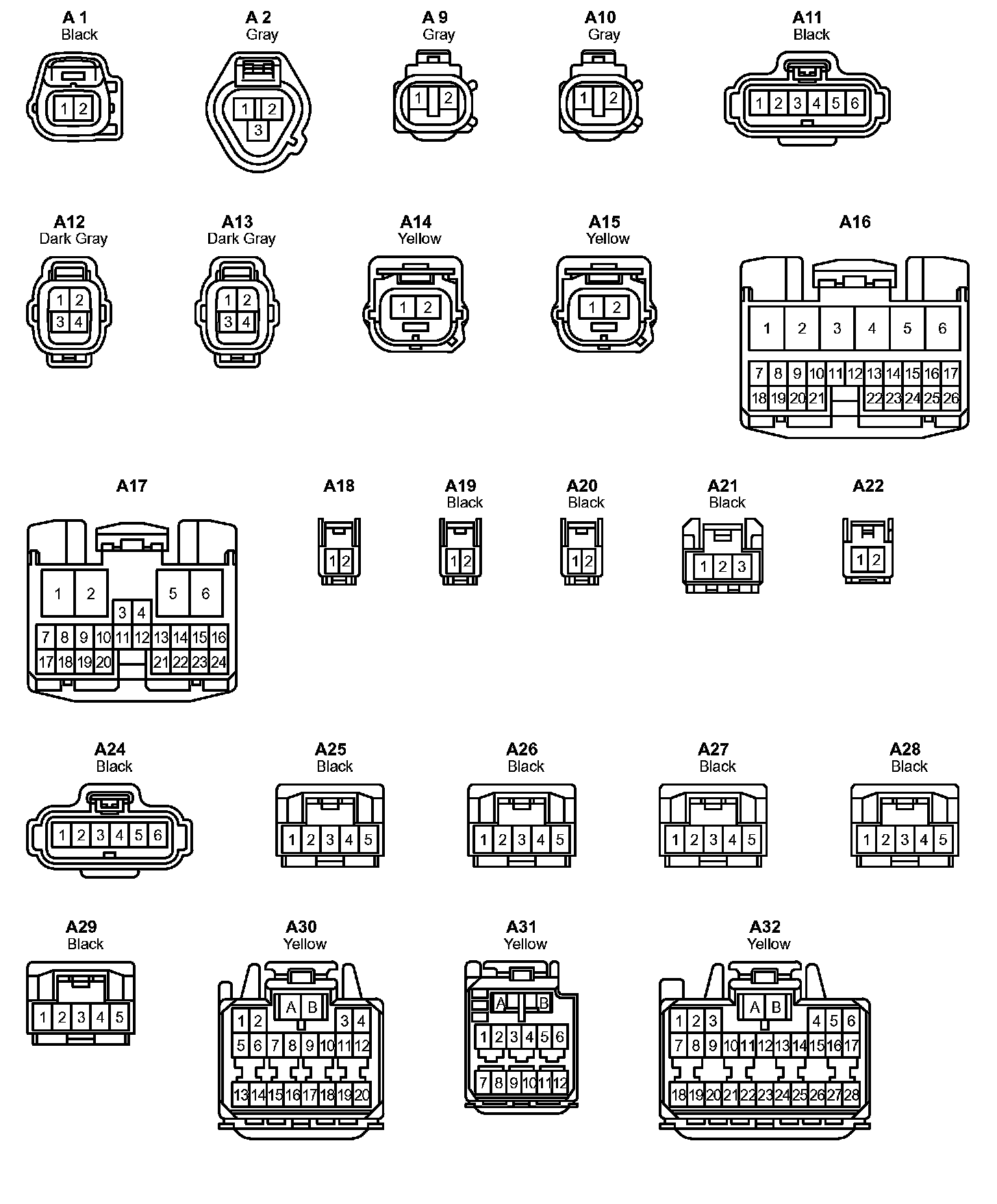

Connector Views
>>
Connector Views By Connector Number
>>
A1 - A32
A1 - A32
A1 - A32:
