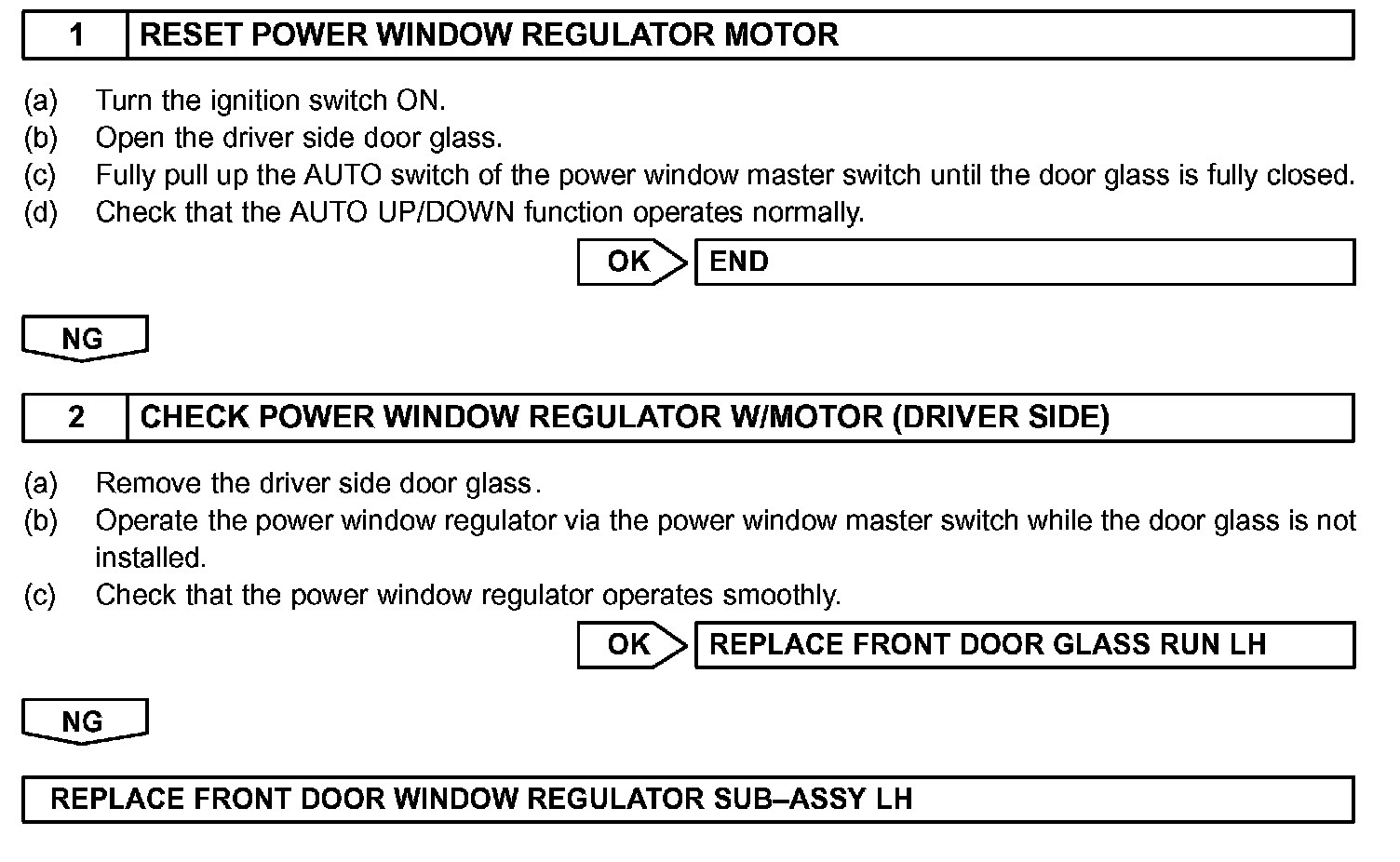

Door Glass Goes Down During Auto Up Operation

DOOR GLASS GOES DOWN DURING AUTO UP OPERATION

CIRCUIT DESCRIPTION

If the door glass or the power window regulator does not smoothly operate, the jam protection function may operate abnormally, resulting in this symptom.
