Shift Cable: Service and Repair
REPLACEMENT1. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
2. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
3. REMOVE CONSOLE UPPER PANEL GARNISH NO.1
4. REMOVE CONSOLE UPPER PANEL GARNISH NO.2
5. REMOVE CONSOLE BOX ASSEMBLY REAR
6. REMOVE TRANSMISSION CONTROL CABLE ASSEMBLY

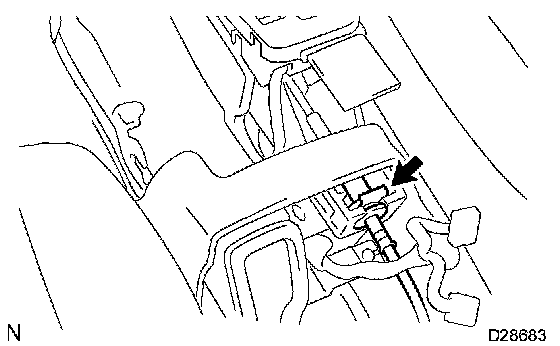

a. Disconnect the transmission control cable assembly from shift lever assembly.
b. Remove the lock plate and disconnect the transmission control cable.

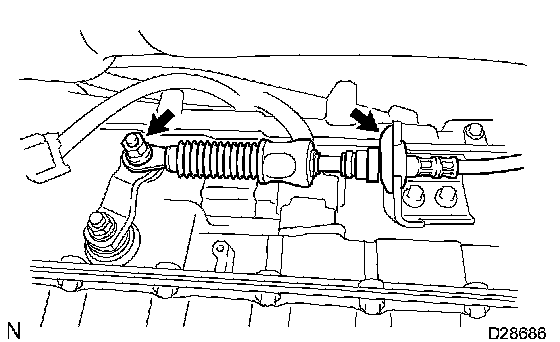

c. Remove the 2 bolts and disconnect the transmission control cable assembly from body.

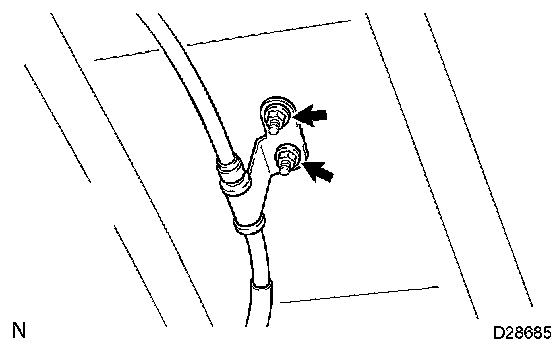

d. Remove the 2 nuts and disconnect the transmission control cable assembly from body.
e. Remove the lock plate and transmission control cable bracket.

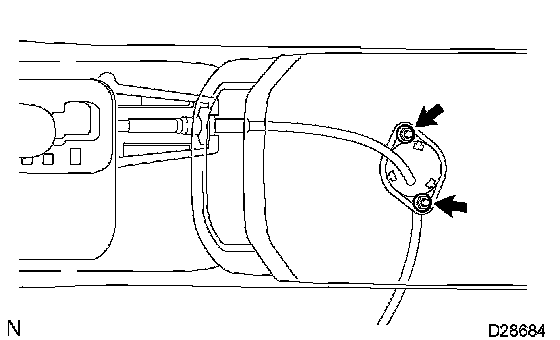

f. Remove the nut and transmission control cable assembly.
7. INSTALL TRANSMISSION CONTROL CABLE ASSEMBLY

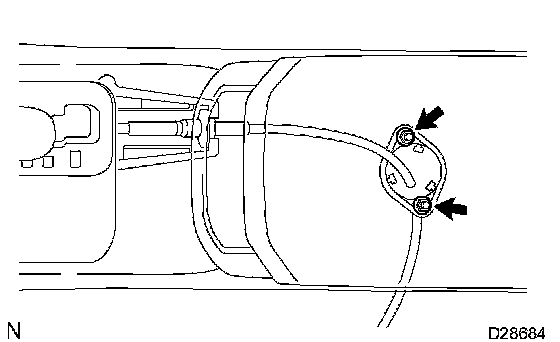

a. Install the transmission control cable assembly with the nut.
Torque: 12 Nm (122 kgf-cm, 9 ft. lbs.)
b. Install the transmission control cable bracket and lock plate.

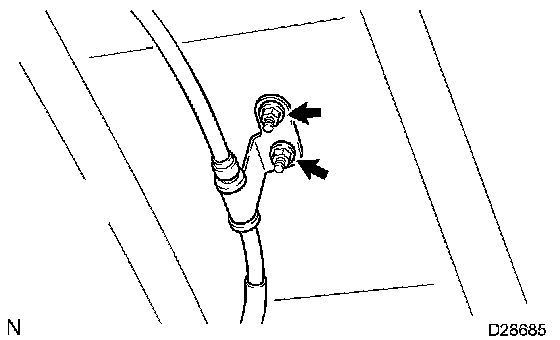

c. Connect the transmission control cable with the 2 nuts to body.

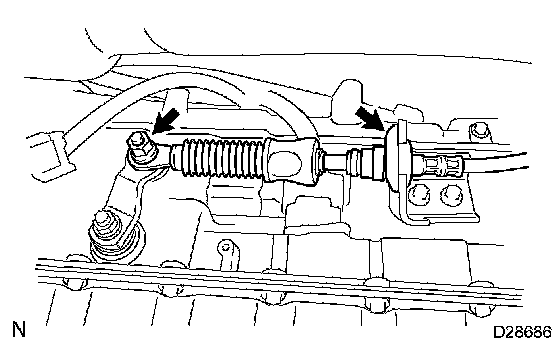

d. Connect the transmission control cable with the 2 bolts to body.
e. Connect the transmission control cable with the lock plate to floor shift assembly.
f. Install the transmission control cable to floor shift assembly.
8. INSTALL CONSOLE BOX ASSEMBLY REAR
9. INSTALL CONSOLE UPPER PANEL GARNISH NO.2
10. INSTALL CONSOLE UPPER PANEL GARNISH NO.1
11. INSTALL CONSOLE PANEL SUB-ASSEMBLY UPPER
12. INSTALL CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
