Emissions - MIL ON/DTC P0456 (EVAP) Set in Memory
ENGINEEG021-05
Title:
M.I.L. "ON" DTC P0456
Models:
'05 4Runner
May 16, 2005
Introduction
Some 2005 model year 4Runner vehicles may exhibit a M.I.L. "ON" condition with DTC P0456, EVAP Emission Control System. Follow the steps in this bulletin to correct this condition.
NOTE:
This TSB only applies to vehicles exhibiting M.I.L. "ON" DTC P0456.
Applicable Vehicles
^ 2005 model year 4Runner vehicles produced BEFORE the Production Change Effective VINs shown below.

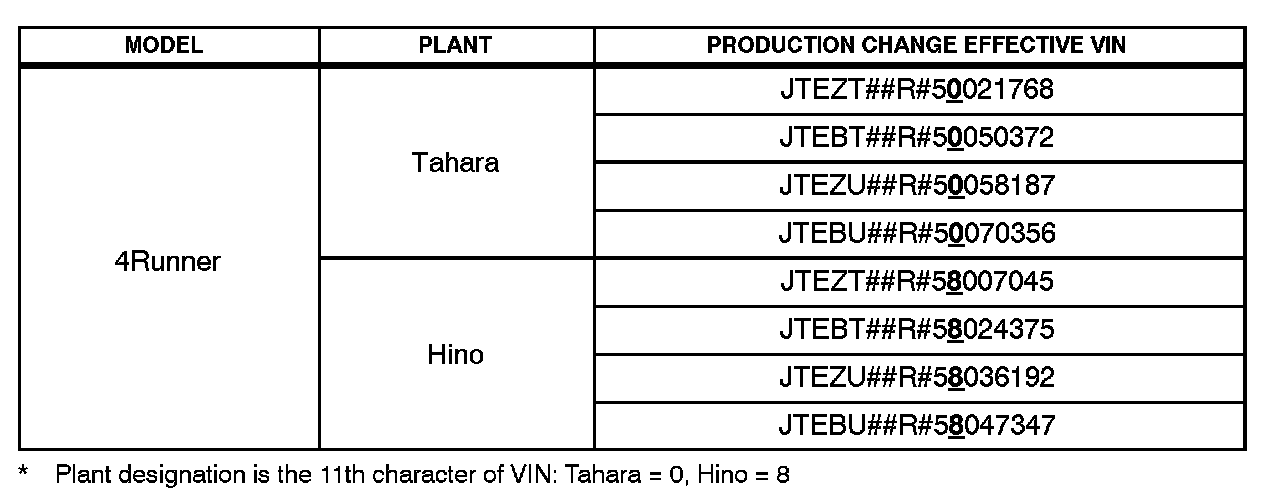

Production Change Information

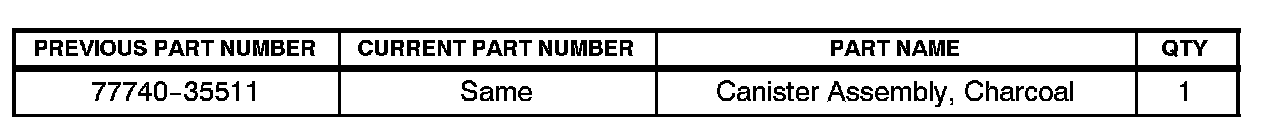

Parts Information

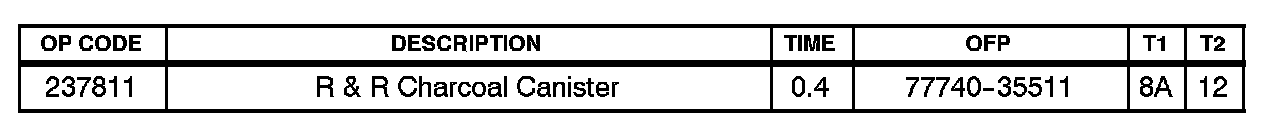

Warranty Information
Applicable Warranty*:
This repair is covered under the Toyota Federal Emission Warranty. This warranty is in effect for 36 months or 36,000 miles, whichever occurs first, from the vehicle's in-service date.
For California specification vehicles registered and operated in California, Maine, Massachusetts, or Vermont, this repair is covered under the California Emission Warranty, which is 36 months or 50,000 miles, whichever occurs first, from the vehicle's in-service date.
* Warranty application is limited to correction of a problem based upon a customer's specific complaint.

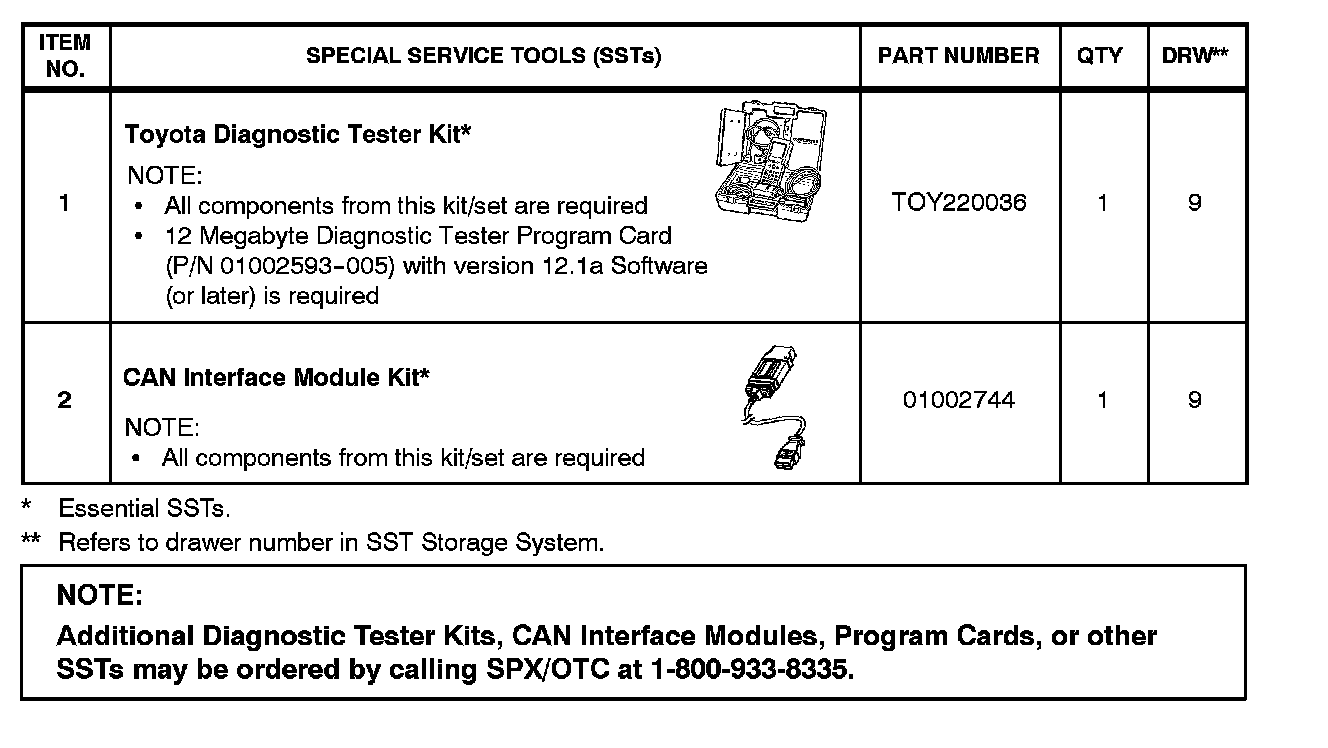

Required SSTs
Repair Procedure
1. Using the Diagnostic Tester, check for Diagnostic Trouble Codes (DTCs). If DTC P0456 is present, check for an EVAP leak at the charcoal canister. Refer to the Technical Information System (TIS), 2005 model year 4Runner Repair Manual: Diagnostics: SF1 System (2UZ-FE/1GR-FE): EVAP Inspection Procedure.
If no leak is detected at the charcoal canister, this TSB does not apply.
2. To correct a leak at the charcoal canister, replace the charcoal canister according to the 2005 model year 4Runner Repair Manual charcoal canister replacement procedure. Refer to TIS, 2005 model year 4Runner Repair Manual: Emission Control: Charcoal Canister Assy (2UZ-FE): Replacement.
