Heater Control Power Supply Circuit

HEATER CONTROL POWER SUPPLY CIRCUIT

CIRCUIT DESCRIPTION

This circuit is a power supply for the air conditioning control assembly (heater control panel).

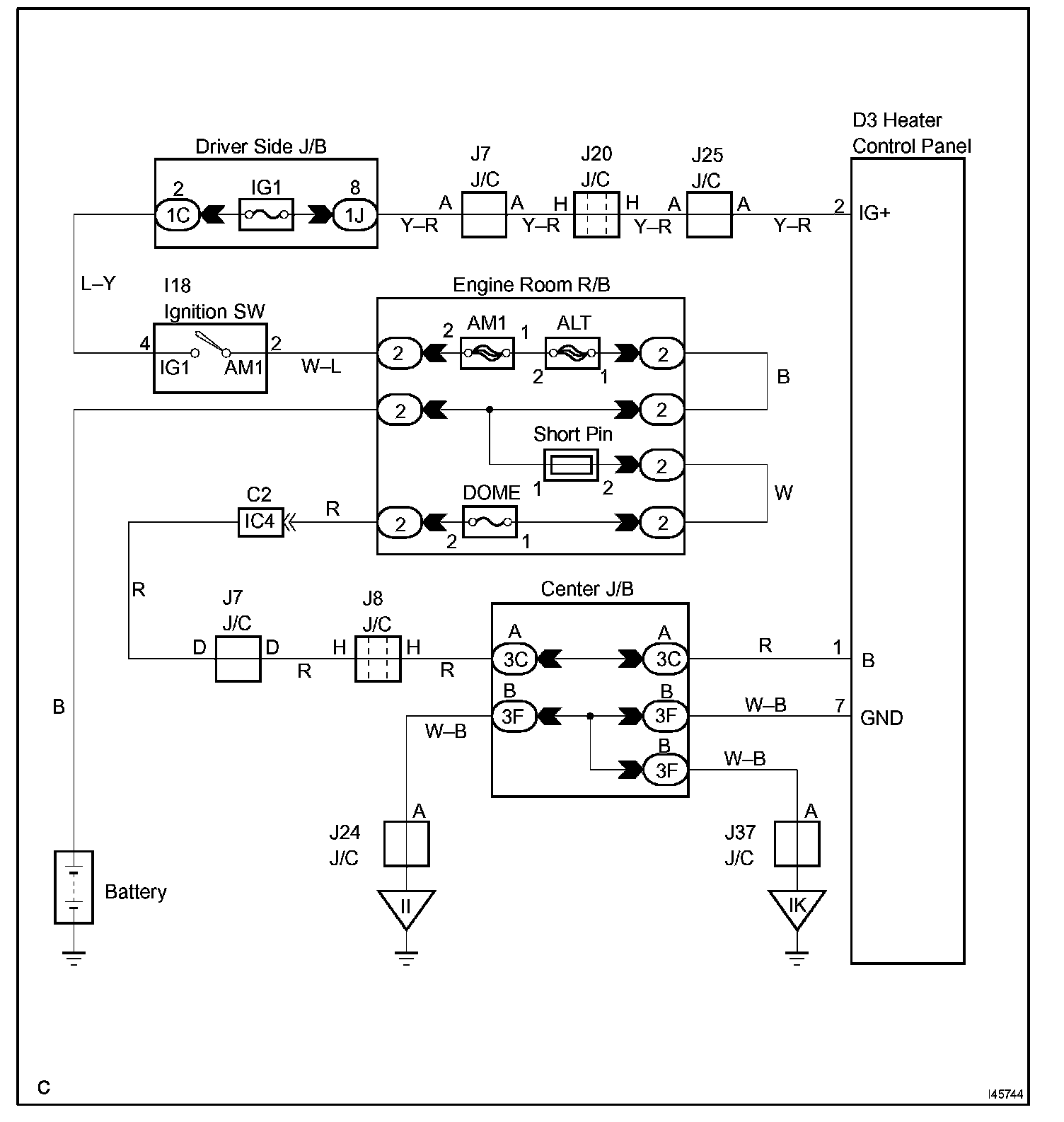

Wiring Diagram:

Step 1 - 2:

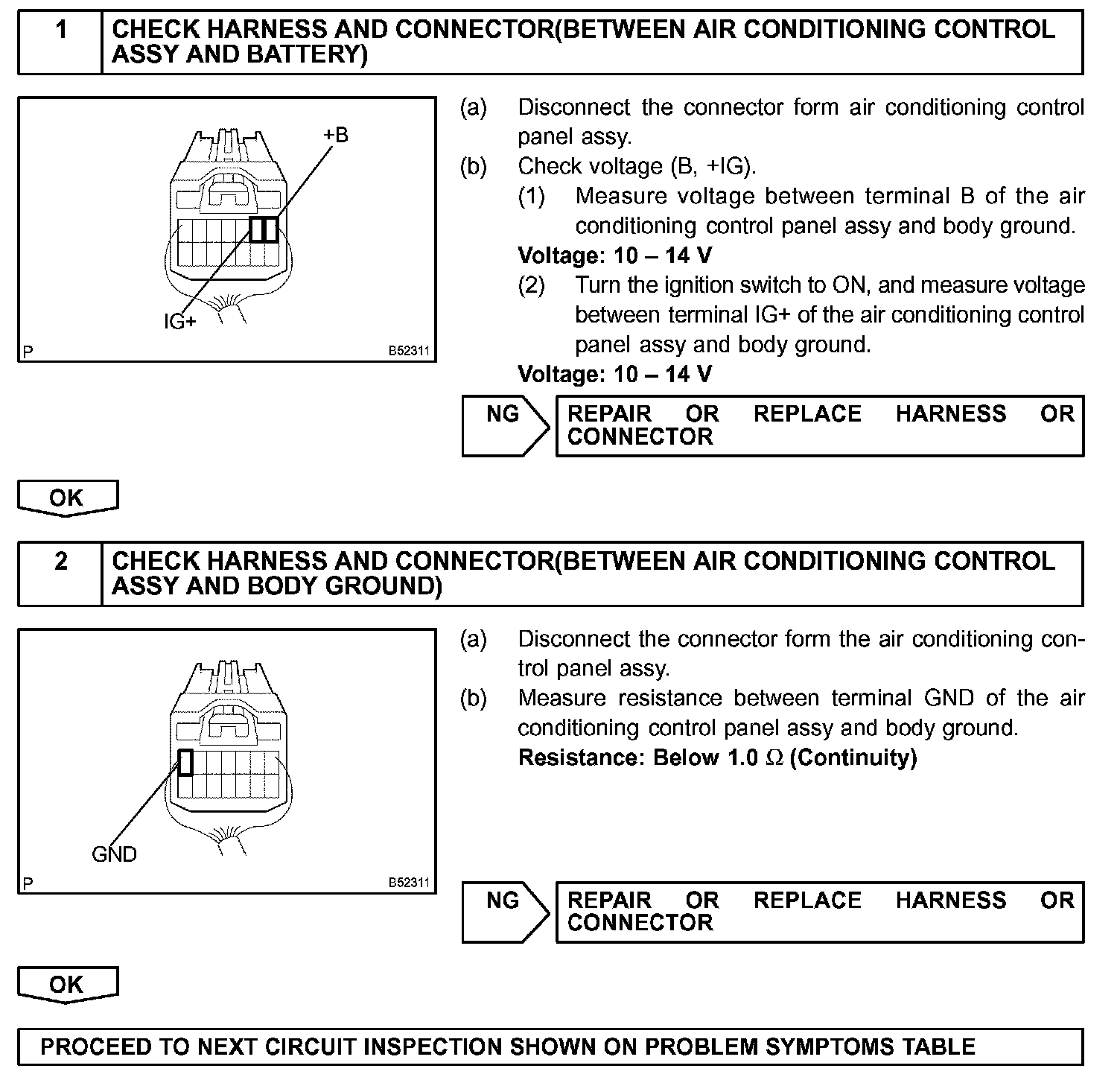

CIRCUIT INSPECTION
