Blower Motor: Service and Repair

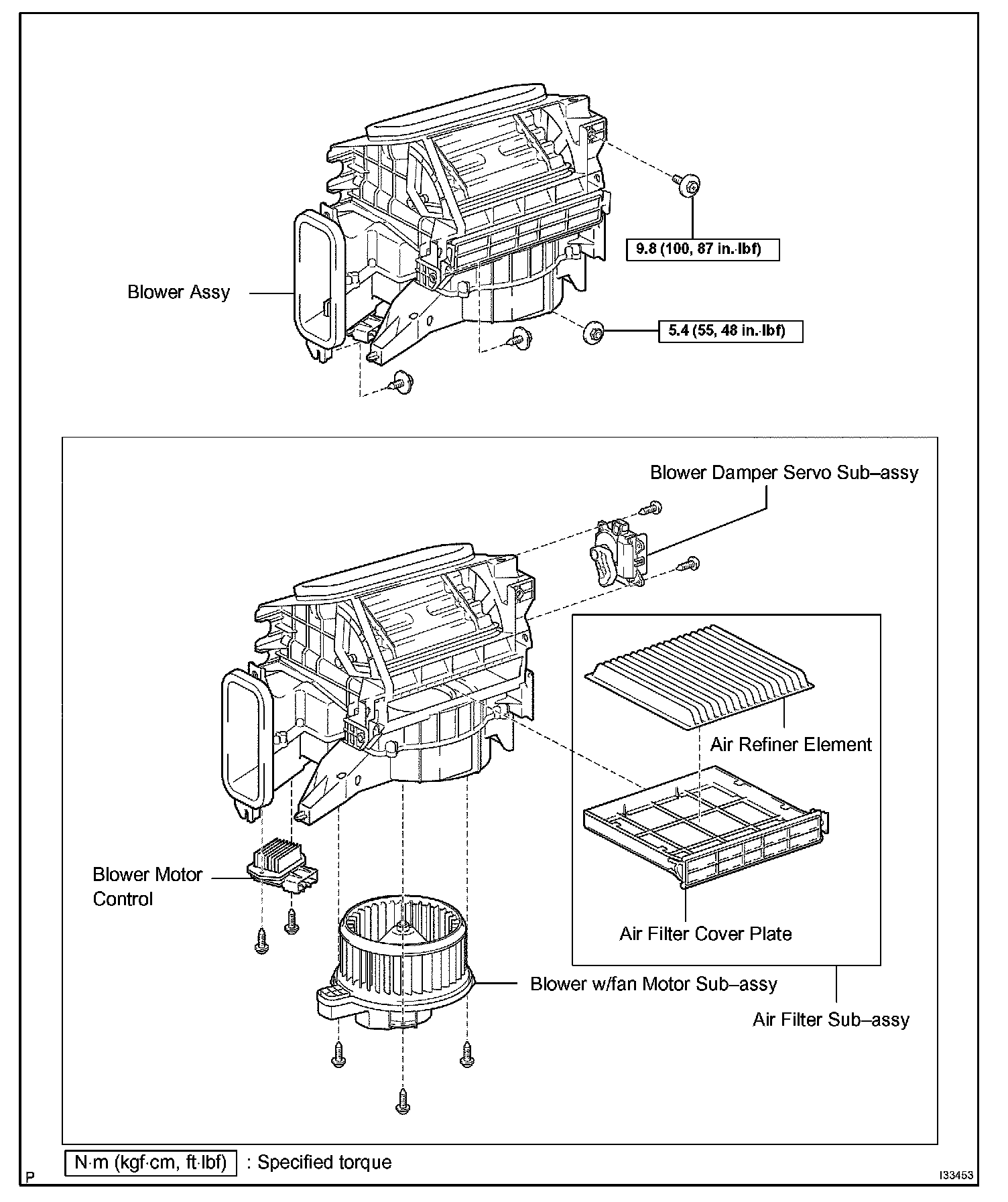

Blower Assy:

OVERHAUL

1. REMOVE CONSOLE UPPER REAR PANEL SUB-ASSEMBLY
2. REMOVE CONSOLE PANEL SUB-ASSEMBLY UPPER
3. REMOVE CONSOLE UPPER PANEL GARNISH NO.1
4. REMOVE CONSOLE UPPER PANEL GARNISH NO.2
5. REMOVE CONSOLE BOX ASSEMBLY REAR
6. REMOVE COWL SIDE TRIM BOARD RH
7. REMOVE INSTRUMENT PANEL UNDER COVER SUB-ASSEMBLY NO.2
8. REMOVE GLOVE COMPARTMENT DOOR STOPPER SUB-ASSEMBLY
9. REMOVE GLOVE COMPARTMENT DOOR SUB-ASSEMBLY
10. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER NO.2
11. REMOVE INSTRUMENT PANEL REGISTER ASSEMBLY NO.2

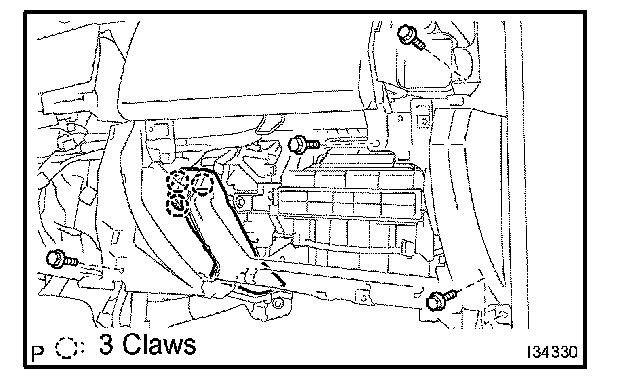

12. REMOVE AIR DUCT NO.2
a. Remove the 4 bolts and disconnect the Instrument panel safety pad sub-assembly.
b. Remove the 3 claw fittings and remove the air duct No.2.

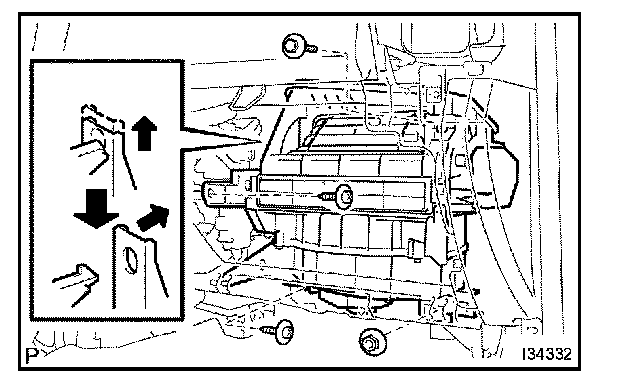

13. REMOVE BLOWER ASSEMBLY

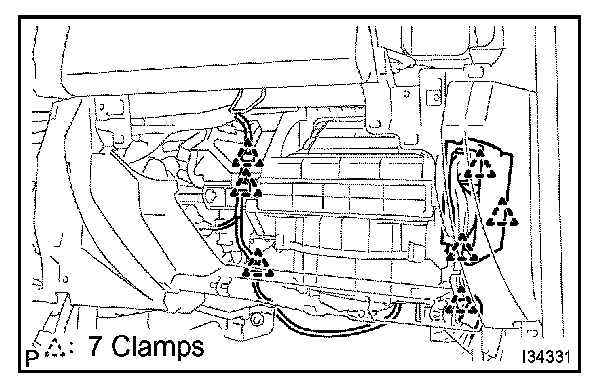

a. Release the 7 clamps and disconnect the connectors.




b. Remove the bolt and 2 screws and nut.
c. Release the claw fitting and remove the blower assembly.

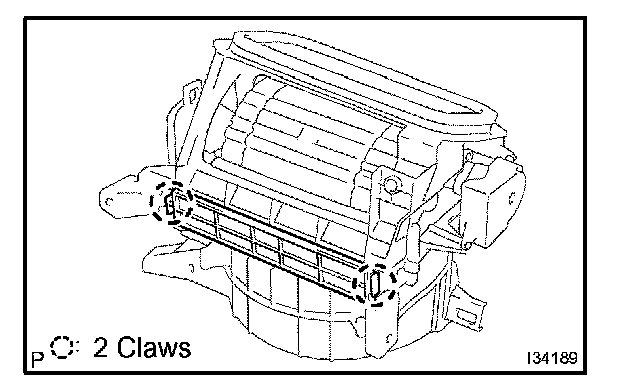

14. REMOVE CLEAN AIR FILTER SUB-ASSEMBLY
a. Release the 2 claw fittings and remove the air filter sub-assembly.

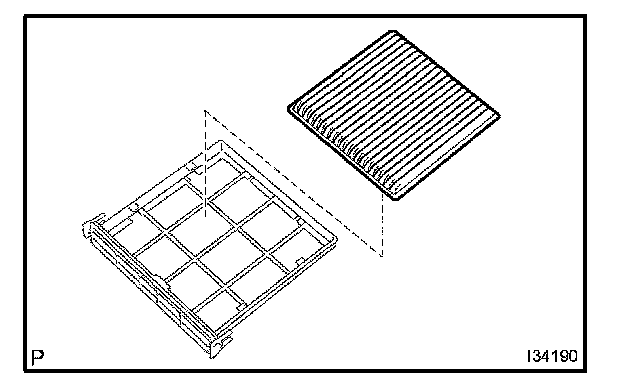

15. REMOVE CLEAN AIR FILTER
a. Remove the air refiner element from the air filter cover plate.

16. REMOVE AIR FILTER COVER PLATE

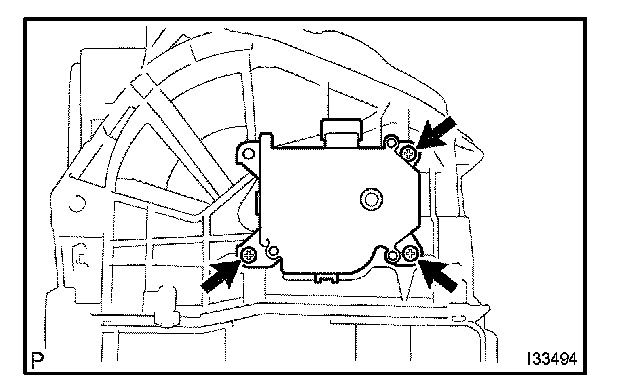

17. REMOVE BLOWER DAMPER SERVO SUB-ASSEMBLY
a. Remove the 3 screws and blower damper servo sub-assembly.

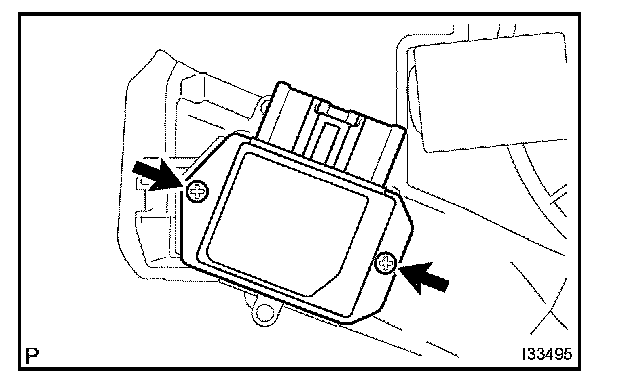

18. REMOVE BLOWER MOTOR CONTROL
a. Remove the 2 screws and blower motor control.




19. REMOVE BLOWER W/FAN MOTOR SUB-ASSEMBLY
a. Remove the 3 screws and blower w/ fan motor sub-assembly.

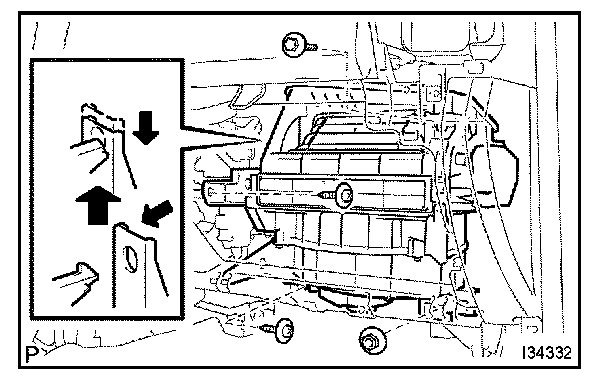

20. INSTALL BLOWER ASSEMBLY




a. Install the blower assembly with the claw fitting.
b. Install the bolt, 2 screws and nut.

Torque:
9.8 N.m (100 kgf.cm, 87 in.lbf) (Bolt)
5.4 N.m (55 kgf.cm, 48 in.lbf) (Nut)

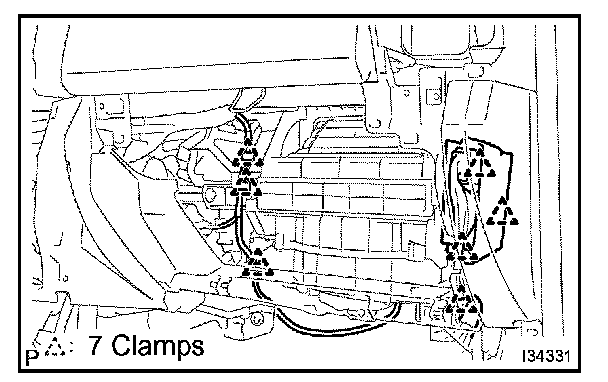

c. Install the 7 clamps and connect the connectors.
