Toyota Truck
>>
2005
>>
4 Runner 2WD V8-4.7L (2UZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Power and Ground Distribution
>>
Fuse Block
Fuse Block

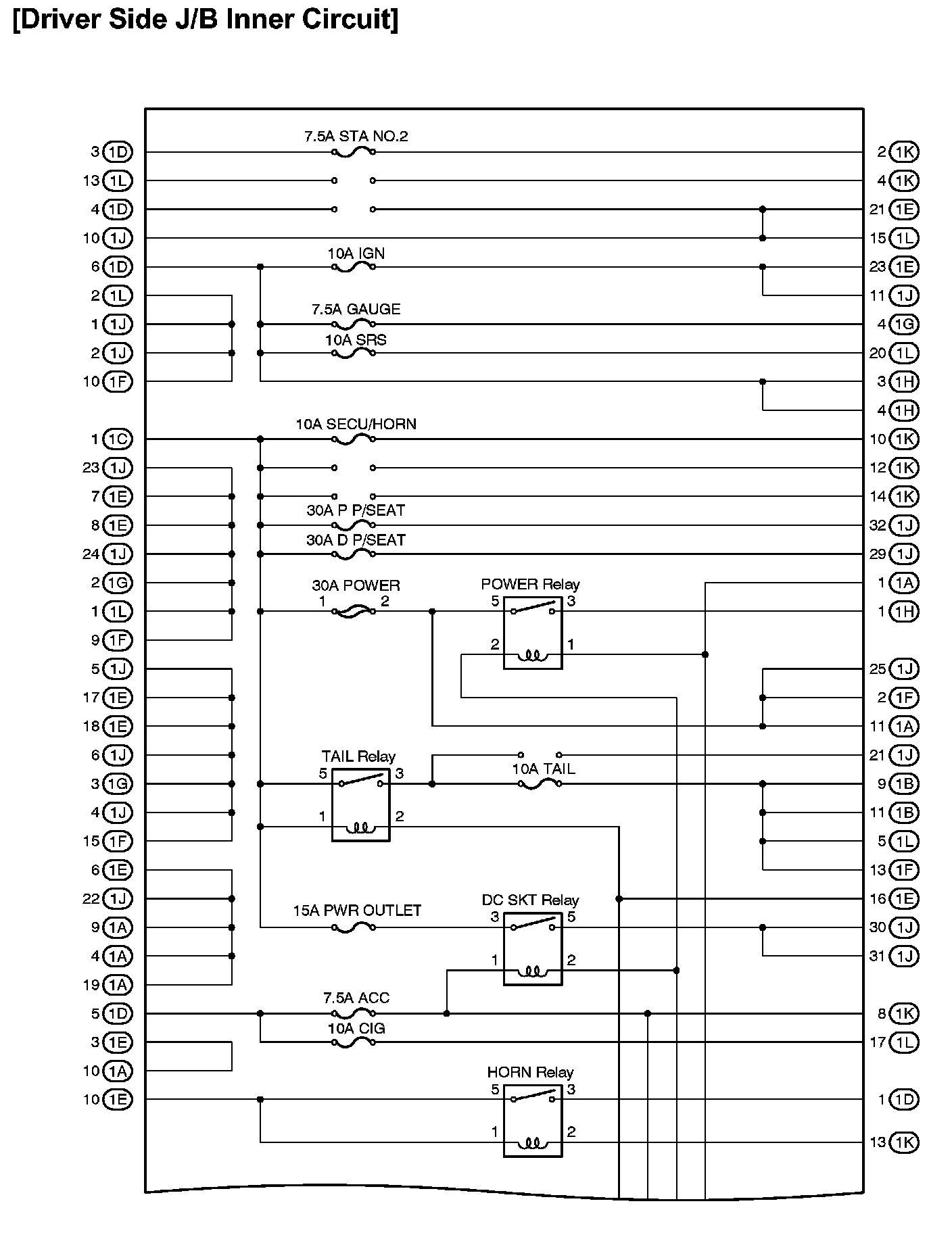

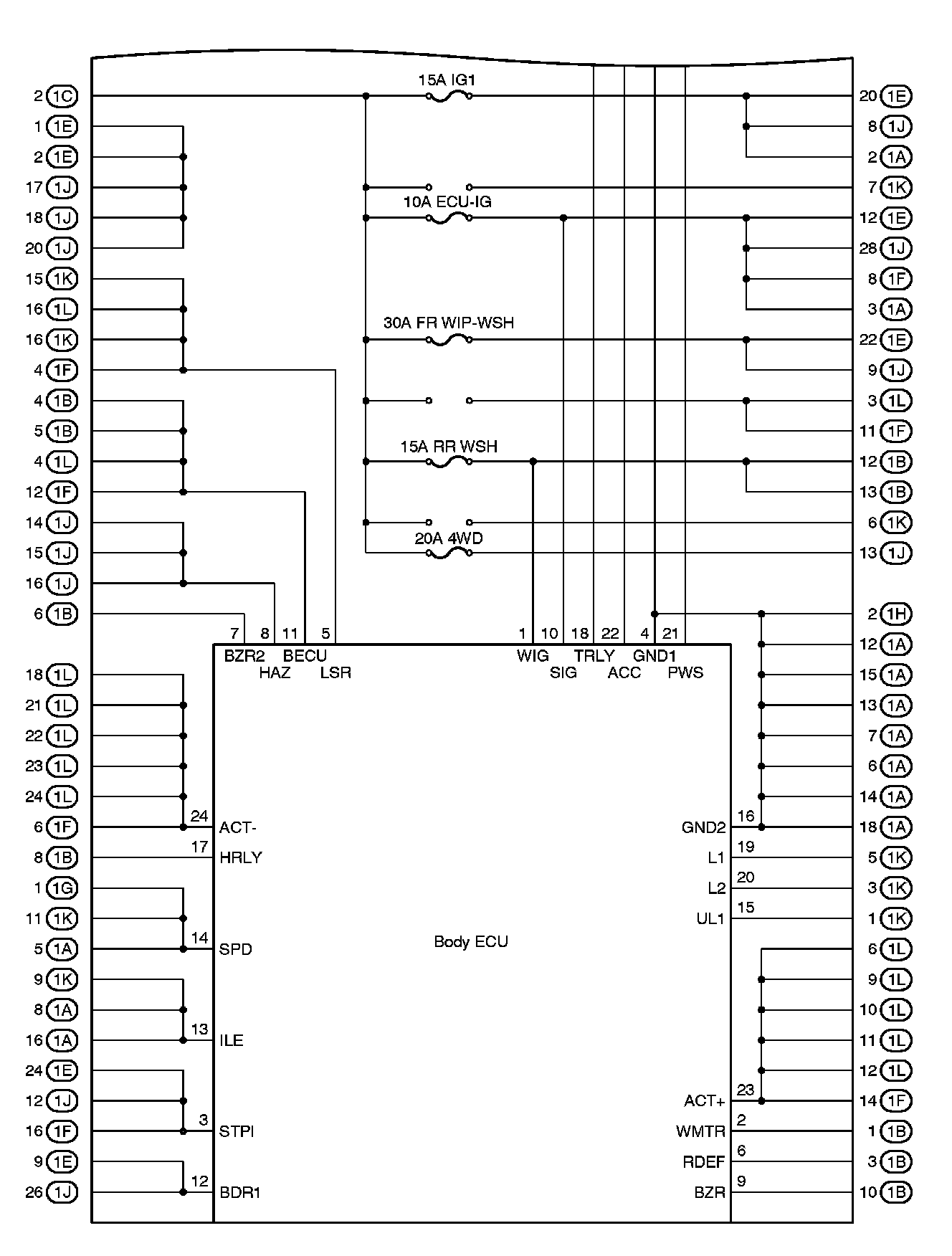

Driver Side J/B Inner Circuit:
Driver Side J/B Inner Circuit:

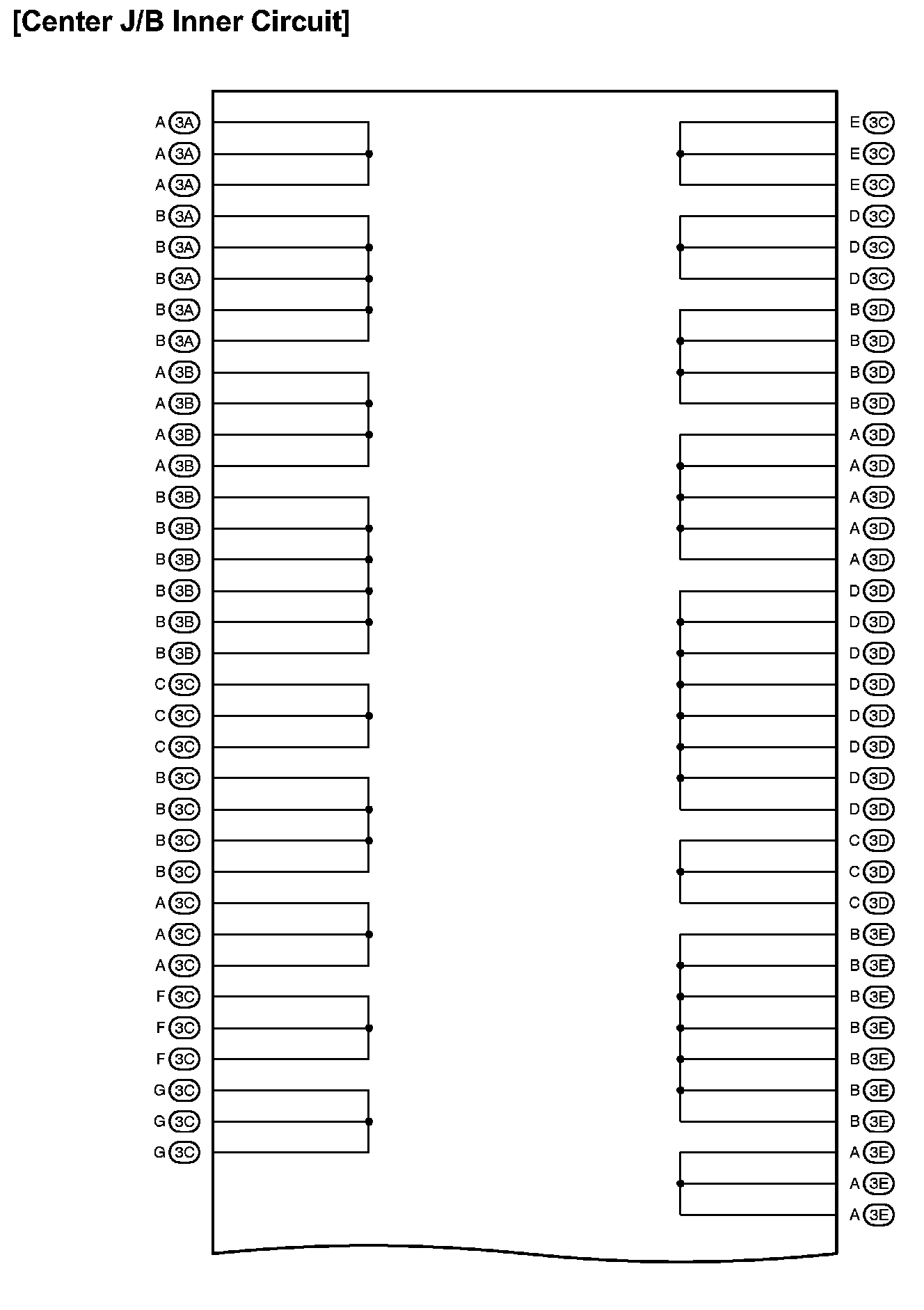

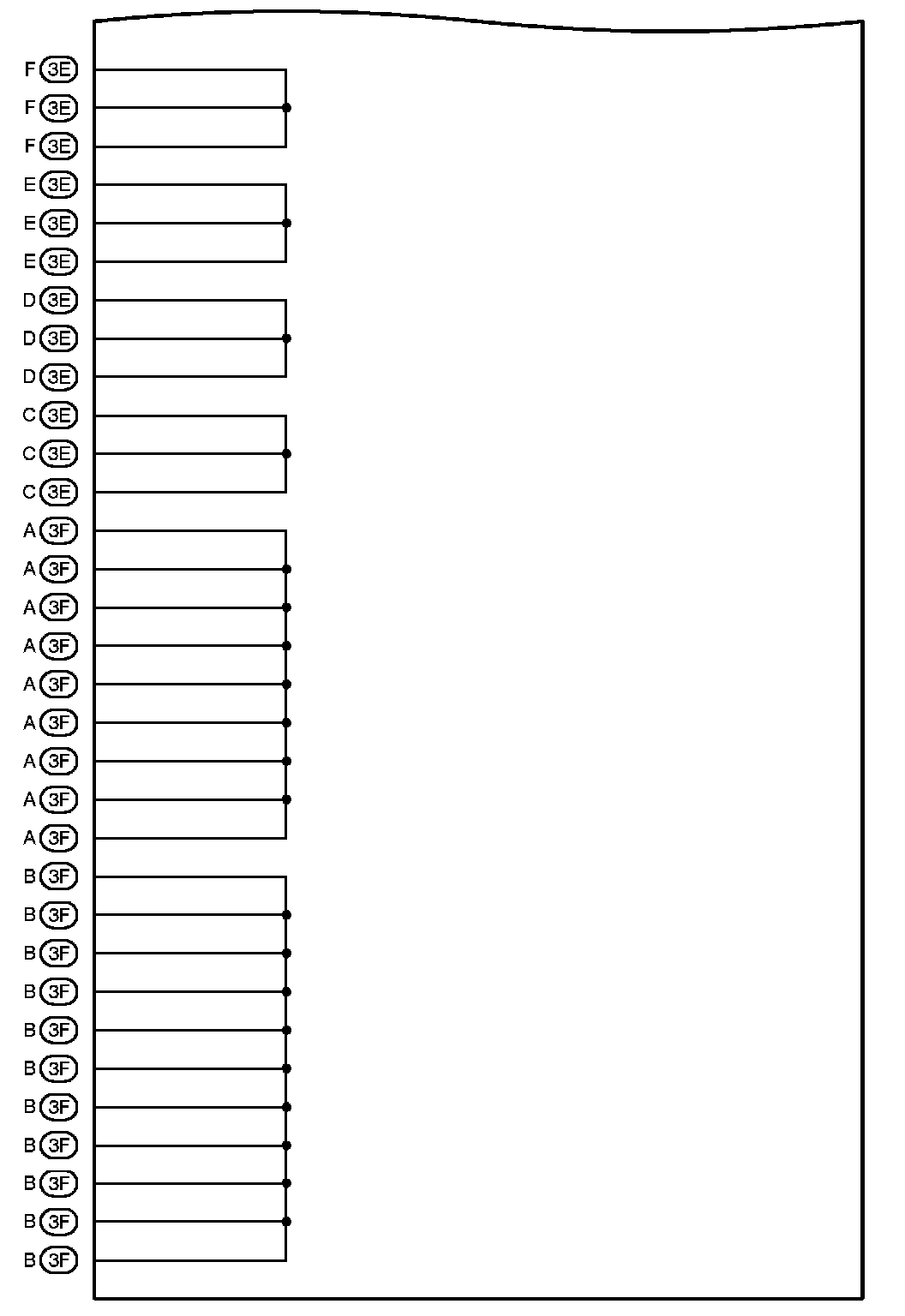

Center J/B Inner Circuit:
Center J/B Inner Circuit:
