SLIP Indicator Light Circuit (Does Not Come ON)

SLIP INDICATOR LIGHT CIRCUIT (DOES NOT COME ON)

CIRCUIT DESCRIPTION

The slip indicator blinks during VSC, TRAC, A-TRAC, AUTO LSD, DAC or HAC operation.

When the system fails, the slip indicator comes on to warn the driver.

Wiring Diagram:

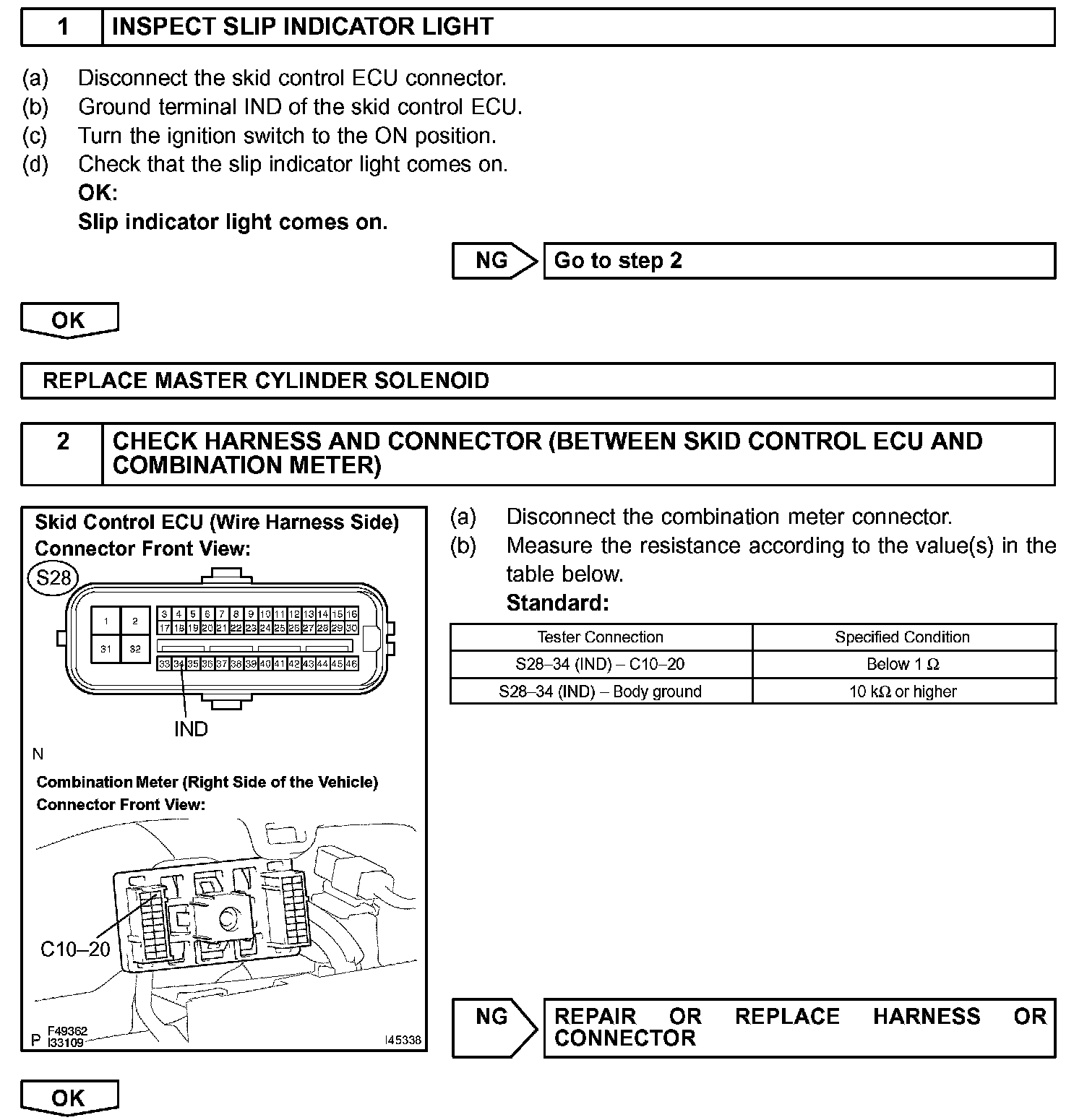

Step 1 - 2:

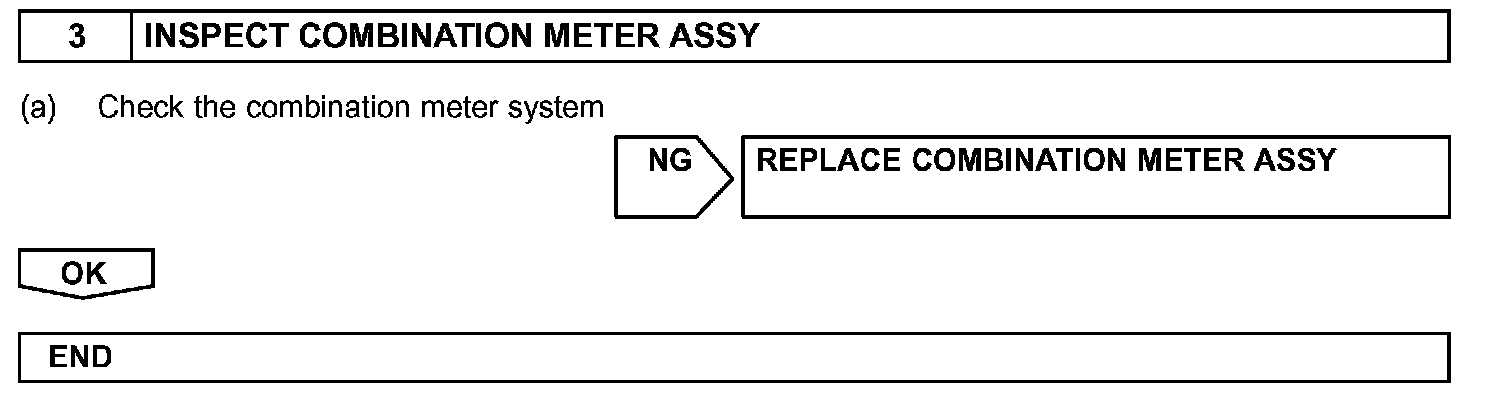

Step 3:

INSPECTION PROCEDURE

NOTE: When replacing the master cylinder solenoid, perform zero point calibration.
