Removal and Installation

ON-VEHICLE INSPECTION

NOTE: Before changing the starter, check the following items again:
^ Connector connection
^ Accessory installation, e.g.: theft deterrent system

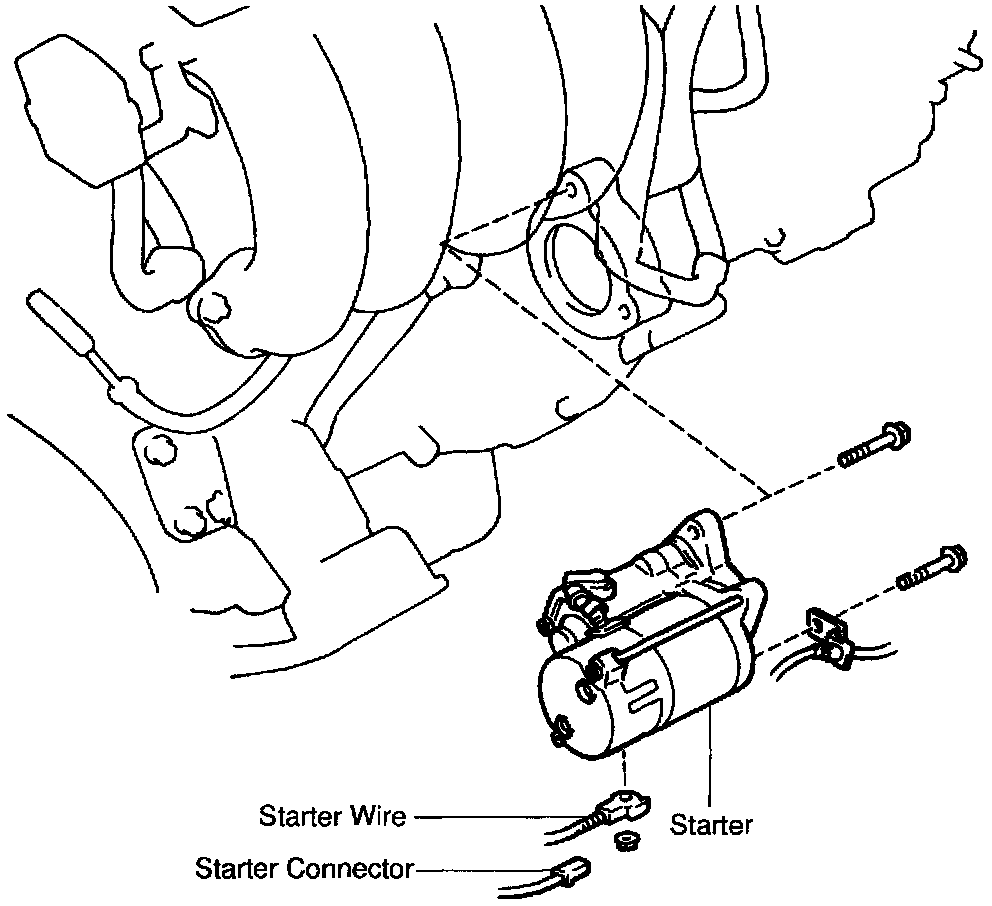

COMPONENTS

REMOVAL

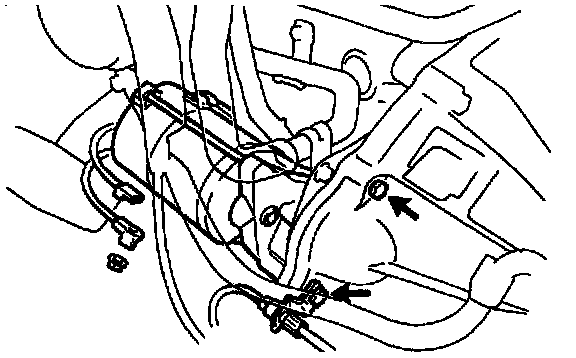

REMOVE STARTER
a. Disconnect the starter connector.
b. Remove the nut and disconnect the starter wire.
Torque: 8.8 N.m (90 kgf.cm, 78 in.lbf)
c. Remove the 2 bolts and starter.
Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

INSTALLATION
Installation is in the reverse order of removal.
