Ignition Coil: Service and Repair

REMOVAL

1. REMOVE AIR CLEANER HOSE
2. DISCONNECT HIGH-TENSION CORDS FROM IGNITION COILS
3. REMOVE IGNITION COILS

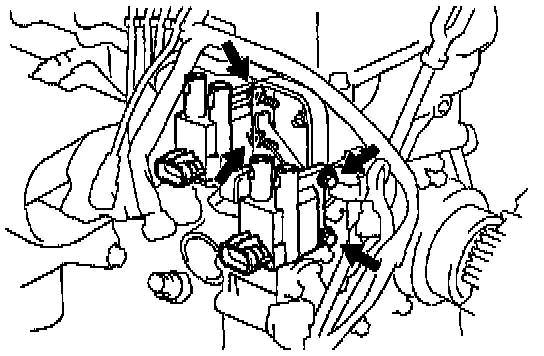

(a) Disconnect the 2 connectors from the ignition coils.





(b) Remove the 4 bolts and 2 ignition coils from the bracket.

Torque: 10 N.m (100 kgf.cm, 7 ft.lbf)

HINT: Arrange the ignition coils in correct order.

INSTALLATION
Installation is in the reverse order of removal.
