Component Inspection

INSPECTION





1. INSPECT IAC VALVE RESISTANCE

NOTICE: "Cold" and "Hot" in the following sentences express the temperature of the coils themselves. "Cold" is from -10°C (14°F) to 50°C (122°F) and "Hot" is from 50°C (122°F) to 100°C (212°F).

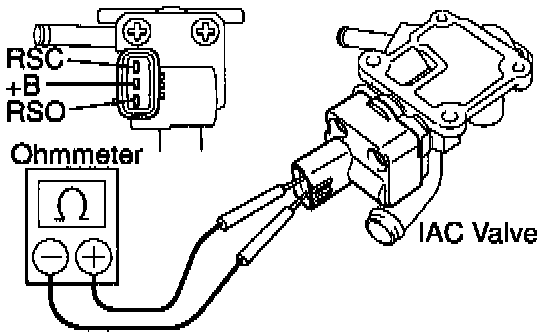

Using an ohmmeter, measure the resistance between terminal +B and other terminals (RSC, RSO).

Resistance:
Cold: 17.0 - 24.5 ohms
Hot: 21.5 - 28.5 ohms

If resistance is not as specified, replace the IAC valve.
2. INSPECT IAC VALVE OPERATION

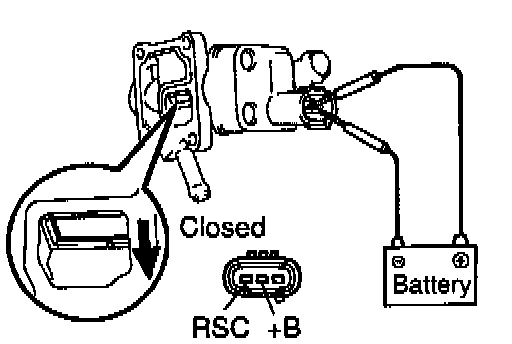

(a) Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSC and check that the valve is closed.

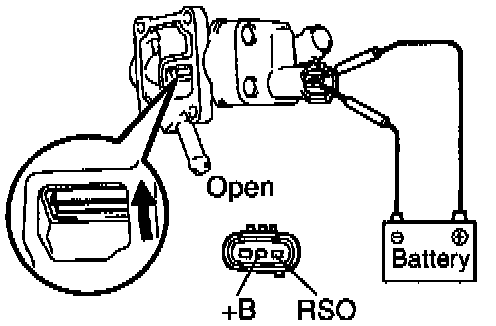

(b) Connect the positive (+) lead from the battery to terminal +B and negative (-) lead to terminal RSO and check that the valve is open.
