Idle Speed/Throttle Actuator - Electronic: Service and Repair

REMOVAL

1. REMOVE THROTTLE BODY





2. REMOVE IAC VALVE

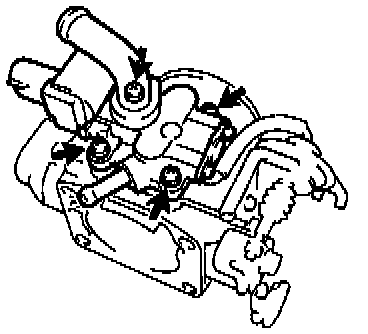

Remove the 4 screws, IAC valve and gasket.

INSTALLATION

1. INSTALL IAC VALVE

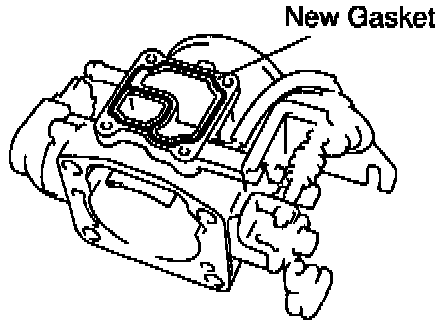

(a) Place a new gasket on the throttle body.
(b) install the IAC valve with the 4 screws.
2. INSTALL THROTTLE BODY
