Removal and Installation

COMPONENTS

REMOVAL

1. REMOVE COOLING UNIT
2. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all the coolant.

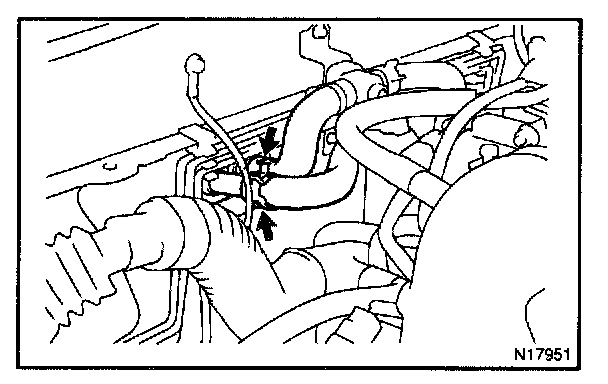

3. DISCONNECT WATER HOSES FROM HEATER RADIATOR PIPES
a. Using pliers, grip the claw of the hose clip and slide the clip along the hose
b. Disconnect the water hoses from the heater radiator pipes.

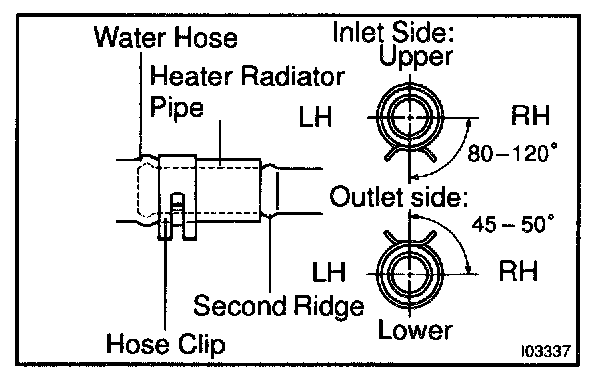

HINT: At the time of installation, please refer to the following items.
- Push the water hose onto the heater radiator pipe as far as the second ridge on the pipe.
- Install the hose clip in the position, as shown in the illustration.

4. REMOVE INSTRUMENT PANEL AND REINFORCEMENT
5. REMOVE DEFROSTER NOZZLE AND HEATER TO REGISTER DUCT

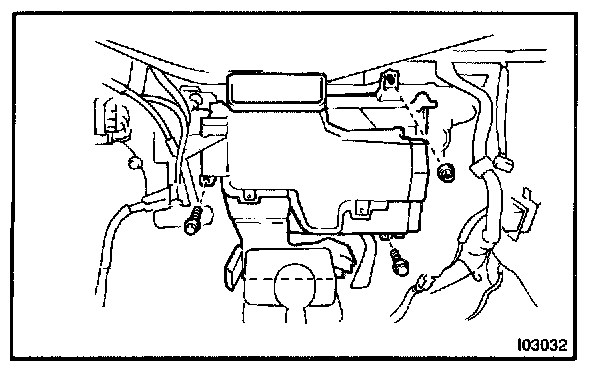

6. REMOVE HEATER UNIT
Remove the 2 bolts, nut and heater unit.

INSTALLATION
Installation is in the reverse order of removal.
