Blower Motor Resistor: Service and Repair

REMOVAL
1. REMOVE GLOVE COMPARTMENT DOOR

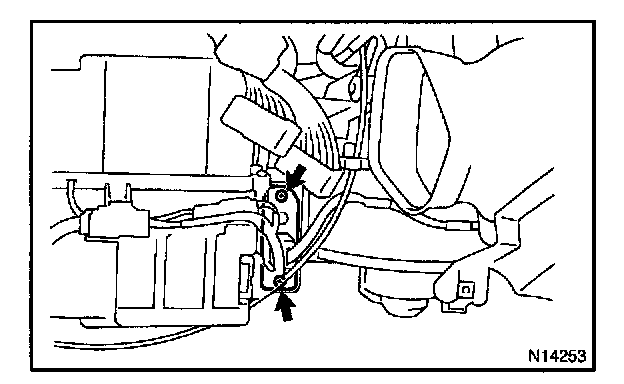

2. REMOVE BLOWER RESISTOR
a. Disconnect the connector.
b. Remove the 2 screws and blower resistor.

INSTALLATION
Installation is in the reverse order of removal.
