Blower Motor Relay: Testing and Inspection
INSPECT

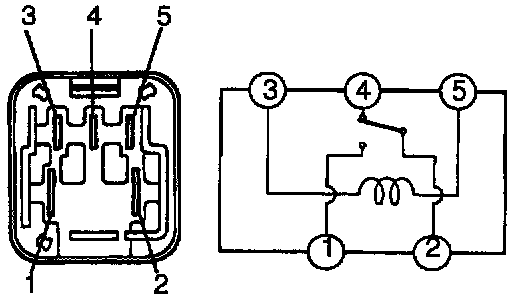

HEATER MAIN RELAY

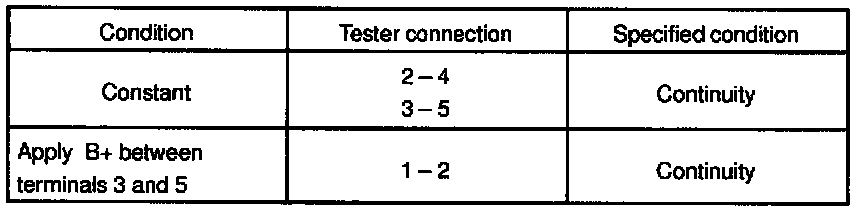

(Marking: HTR) CONTINUITY
If continuity is not as specified, replace the relay.
