Power Steering Gear





POWER STEERING GEAR ASSEMBLY AND RELATED COMPONENTS

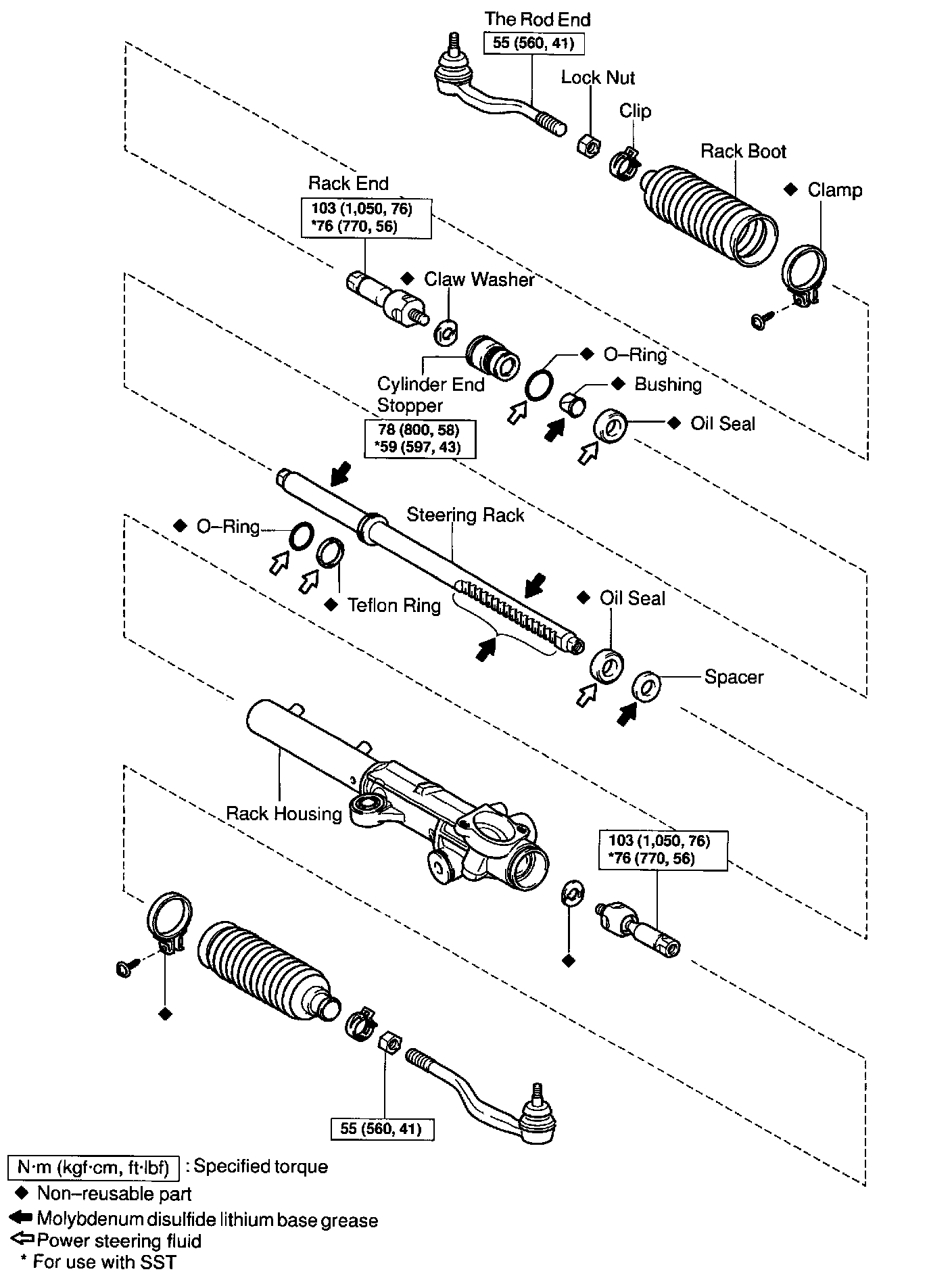

STEERING RACK, RACK HOUSING AND RACK ENDS

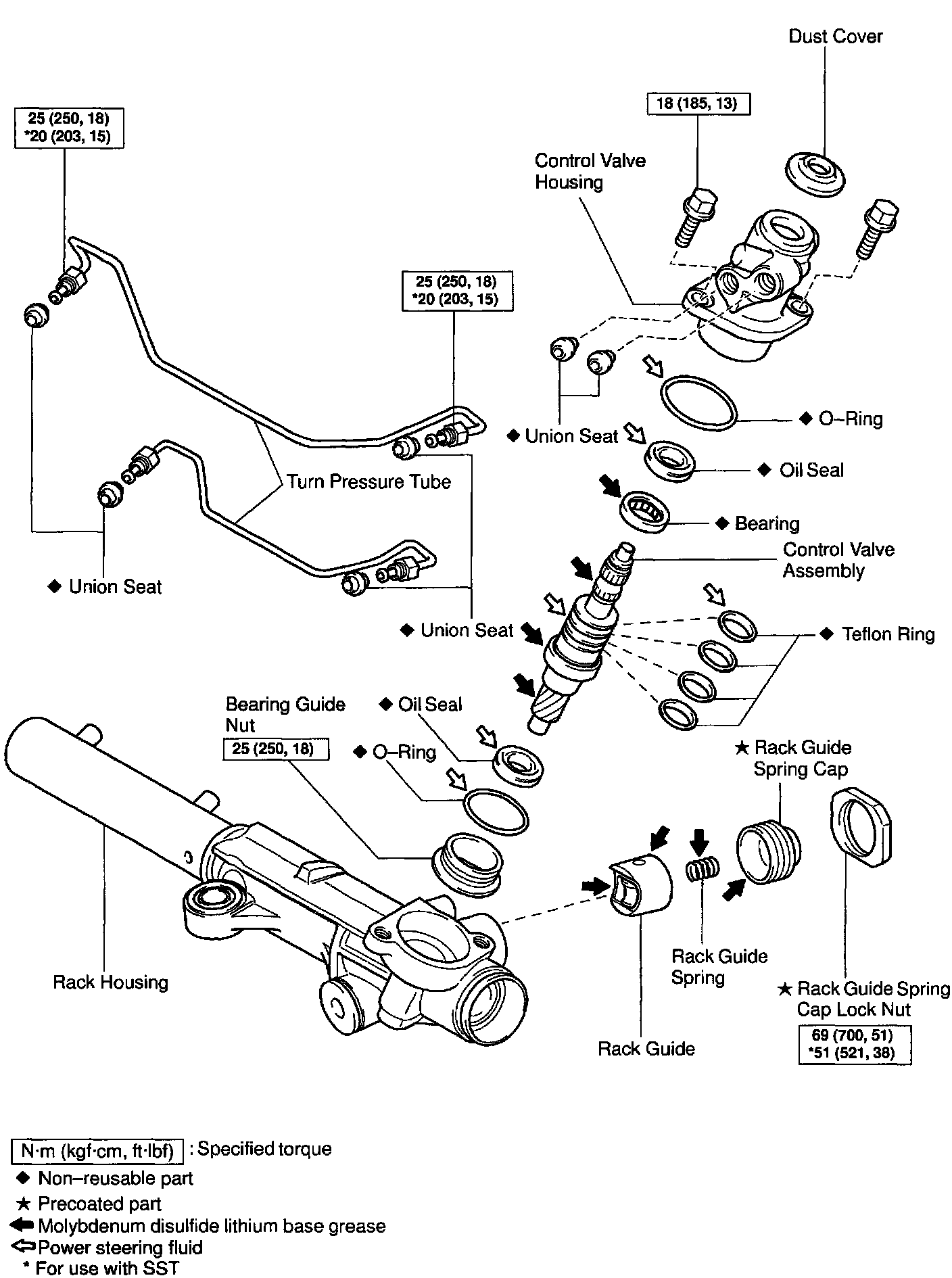

CONTROL VALVE ASSEMBLY AND RELATED COMPONENTS
