Home >> Toyota Truck >> 1998 >> Tacoma PreRunner Extra Cab 2WD L4-2.7L (3RZ-FE) >> Repair and Diagnosis >> Diagrams >> Exploded Views >> Engine >> Timing Components >> Timing Chain

Timing Chain

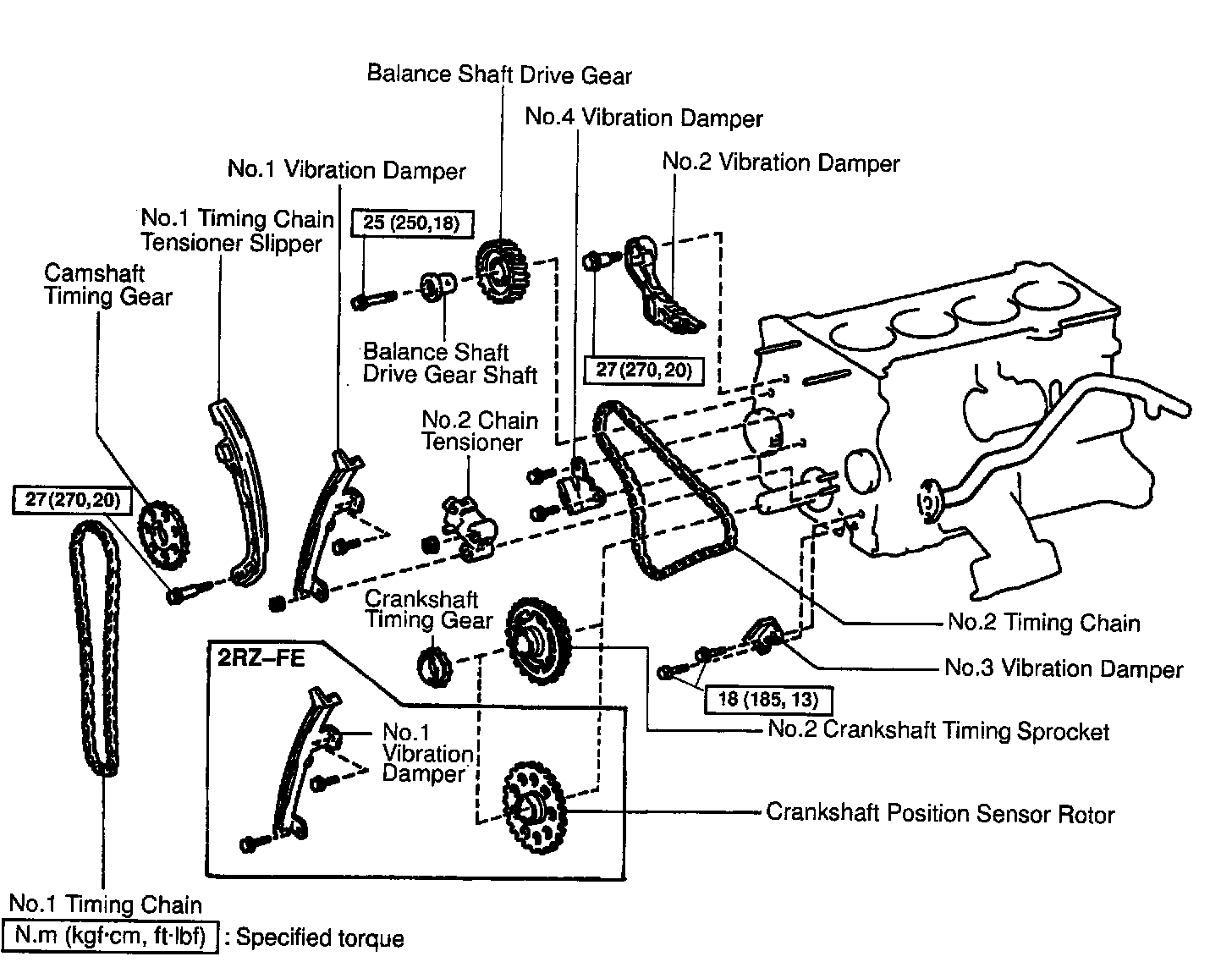

TIMING CHAIN AND RELATED COMPONENTS
