Rear

REMOVAL
1. Remove speed sensor.

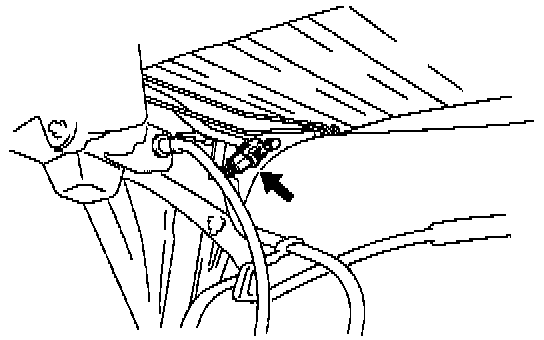

a. Disconnect the speed sensor connector, and pull out the sensor wire harness with grommet.

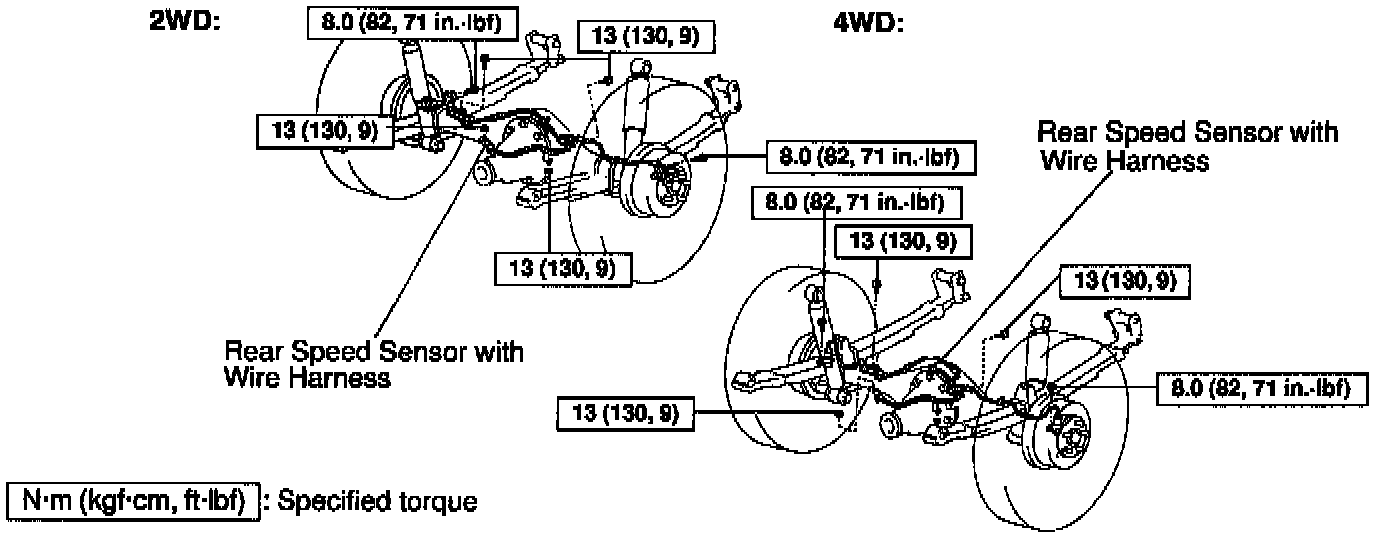

b. Remove the 5 resin clips, 2 clamp set bolts and 2 nuts holding the sensor wire harness from the side rail, fuel tank and axle housing.
Torque: 13 Nm (9 ft. lbs.)

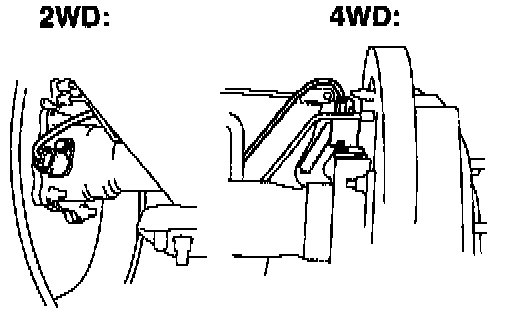

c. Remove the 2 mounting bolts and speed sensor.
Torque: 8.0 Nm (71 inch lbs.)

NOTICE: At the time of installation, please refer to the following items.
- There are no objects on the sensor or the part of the axle end to which the sensor is to be installed.
- The sensor is installed flat against the axle end when you tighten the bolt.
- When installing the resin clips, use new ones.

INSTALLATION
Installation is in the reverse order of removal. After installation, check speed sensor signal.
