Catalytic Converter: Service and Repair

REPLACEMENT

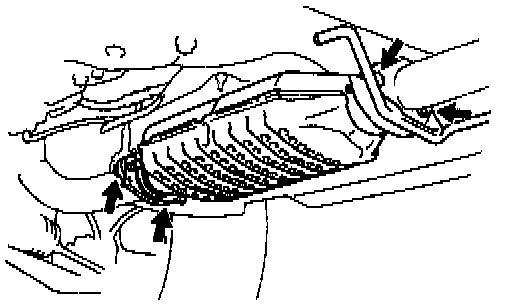

1. REMOVE CENTER EXHAUST PIPE
Remove the 4 bolts, TWC joint retainer, center exhaust pipe and 2 gasket

Torque: 62 N.m (632 kgf.cm, 46 ft.lbf)

HINT: Place 2 new gaskets on the front exhaust and tail pipes and temporarily install the center exhaust pipe.

2. REINSTALL CENTER EXHAUST PIPE
Installation is in the reverse order of removal.
