Oil Pump, Engine

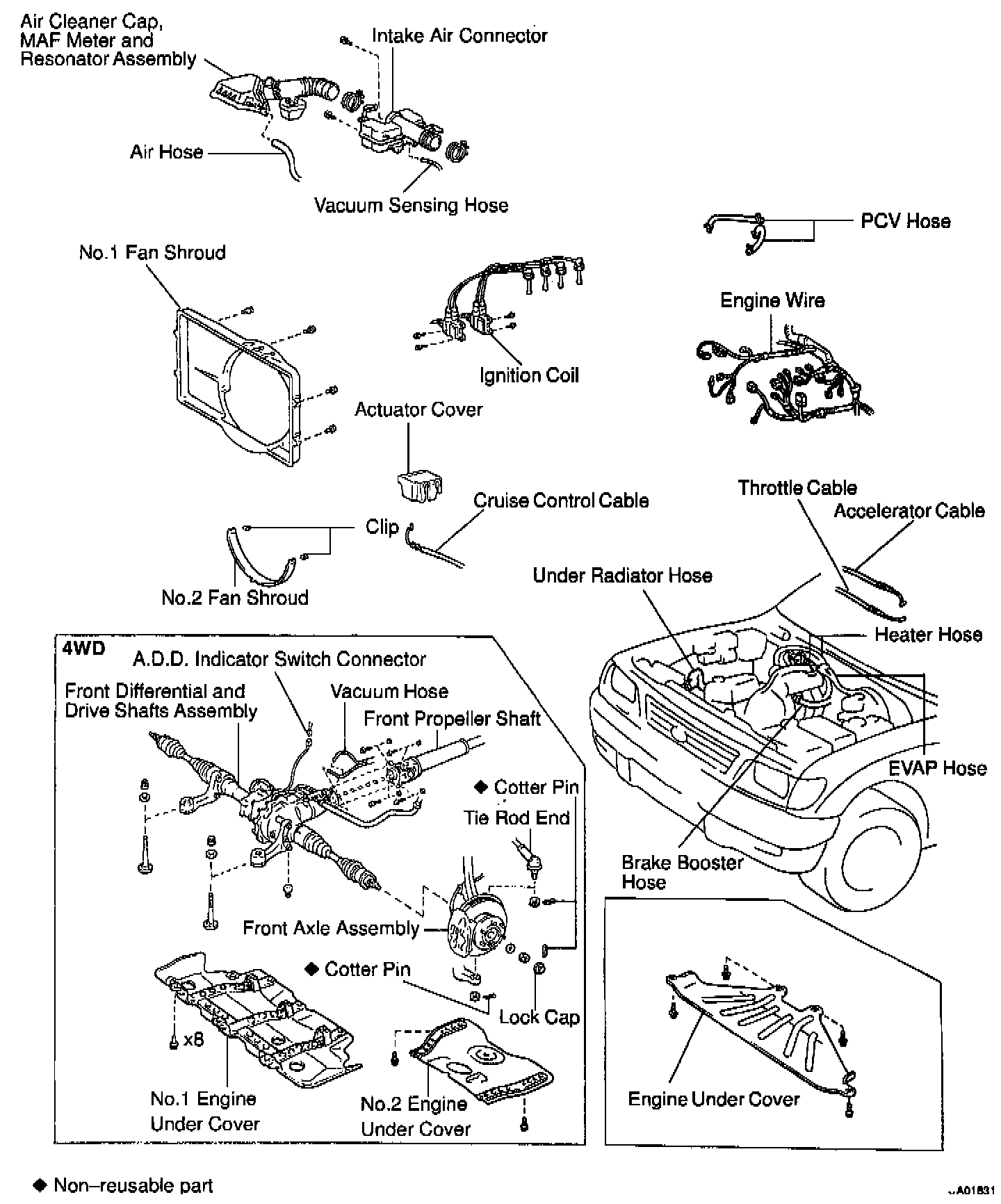

UNDERHOOD VIEW

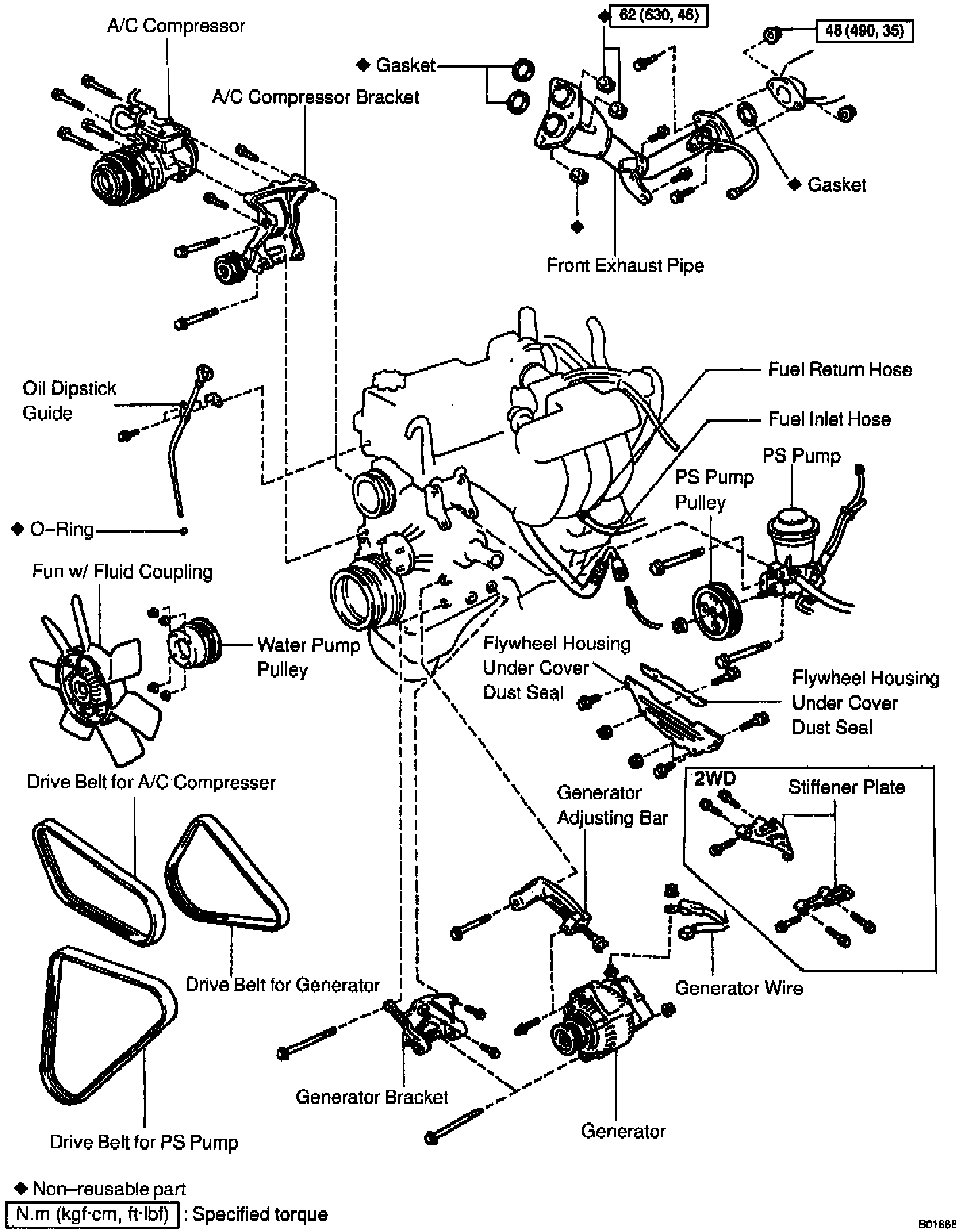

DRIVE ACCESSORIES, EXHAUST AND RELATED COMPONENTS

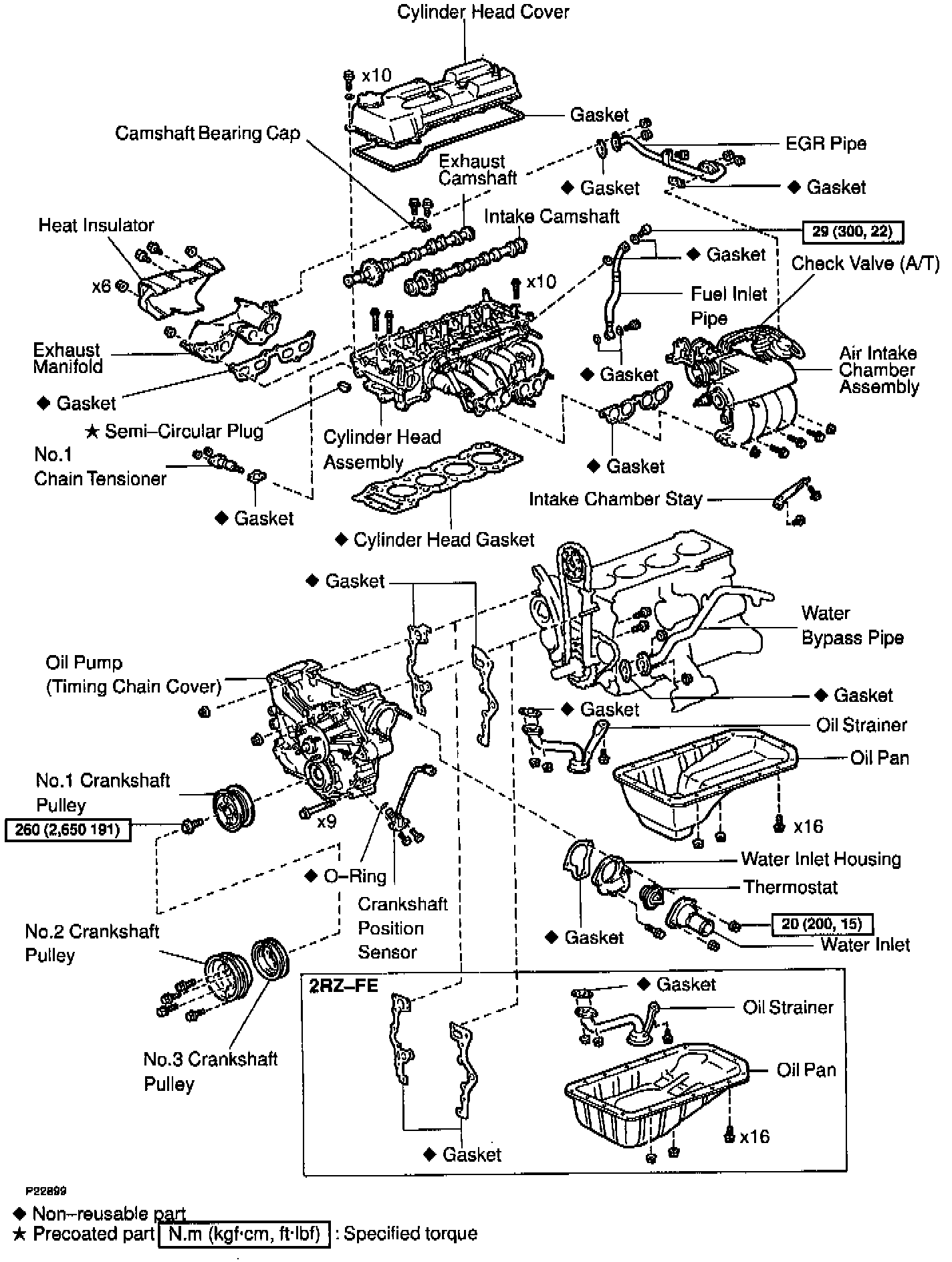

CYLINDER HEAD, INTAKE AND EXHAUST MANIFOLDS

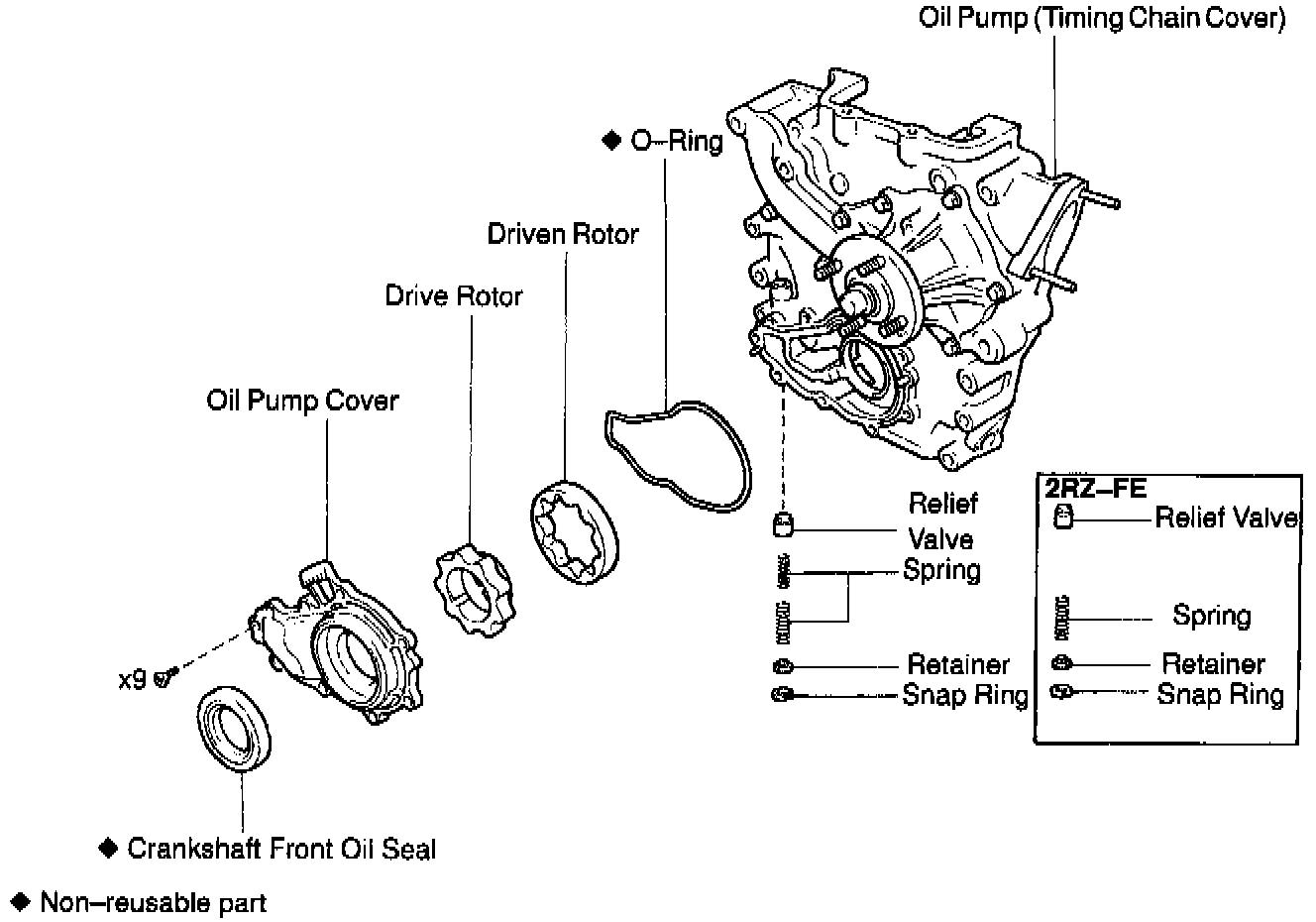

OIL PUMP
