Inspection

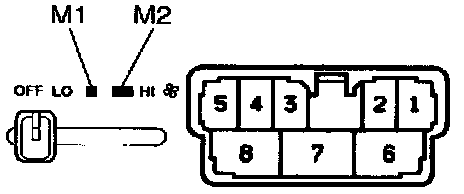

INSPECT BLOWER SPEED CONTROL SWITCH CONTINUITY

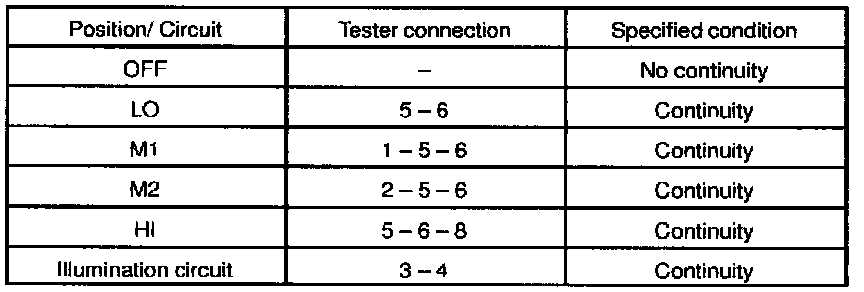

^ Switch continuity:
If continuity is not as specified, replace the switch.
^ Illumination circuit:
If continuity is not as specified, test the bulb.




w/ A/C Models:

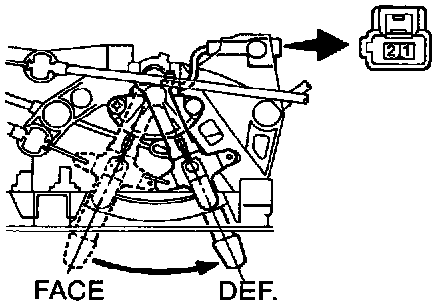

INSPECT DEFROSTER MODE SWITCH OPERATION
Move the mode control lever to DEF. position, then check that the continuity exists between terminals.
It no continuity exists, replace the switch.
