Toyota Truck
>>
1998
>>
T100 SR5 Extra Cab Pickup 4WD V6-3.4L (5VZ-FE)
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Timing Components
>>
Timing Belt
Timing Belt

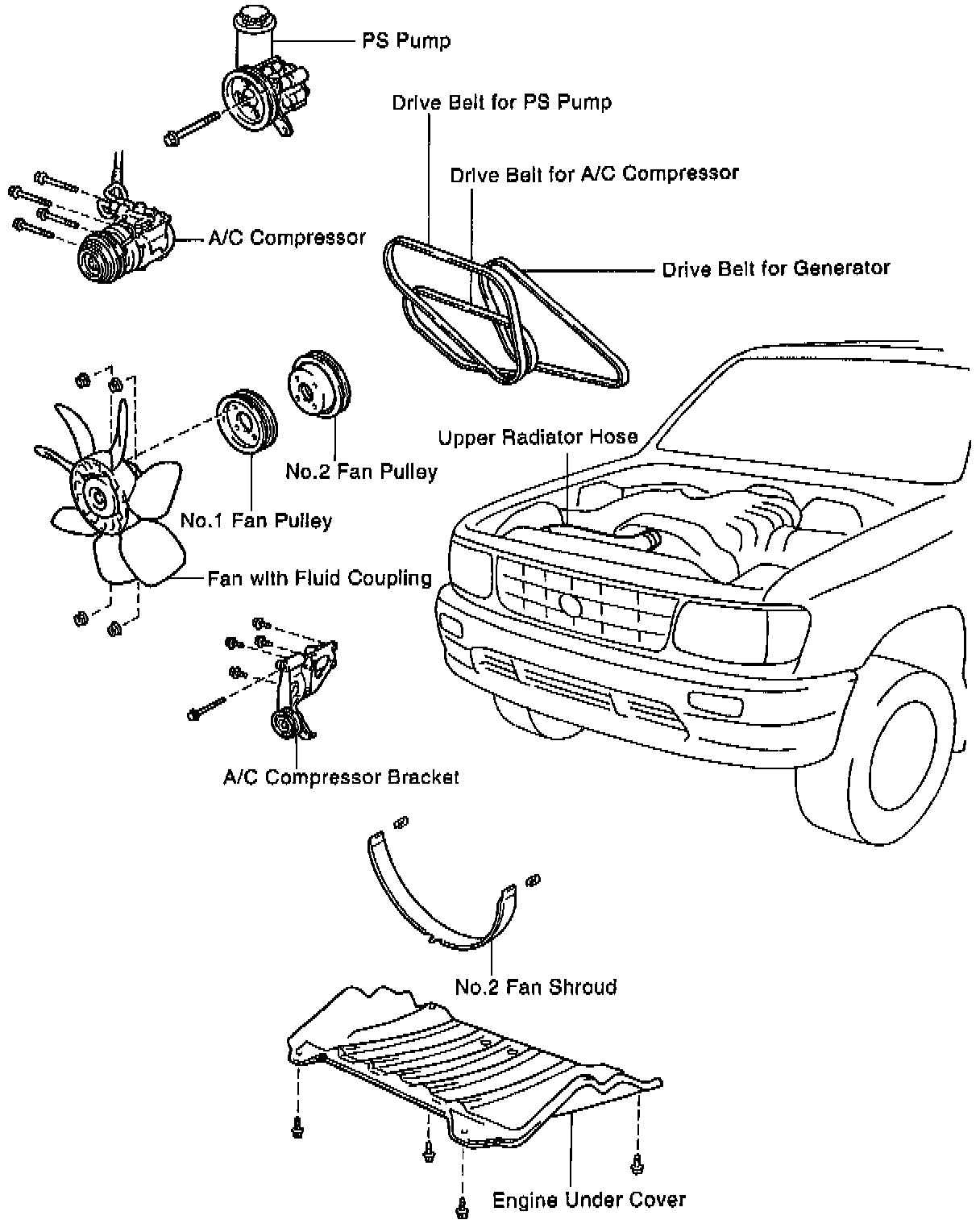

UNDERHOOD VIEW

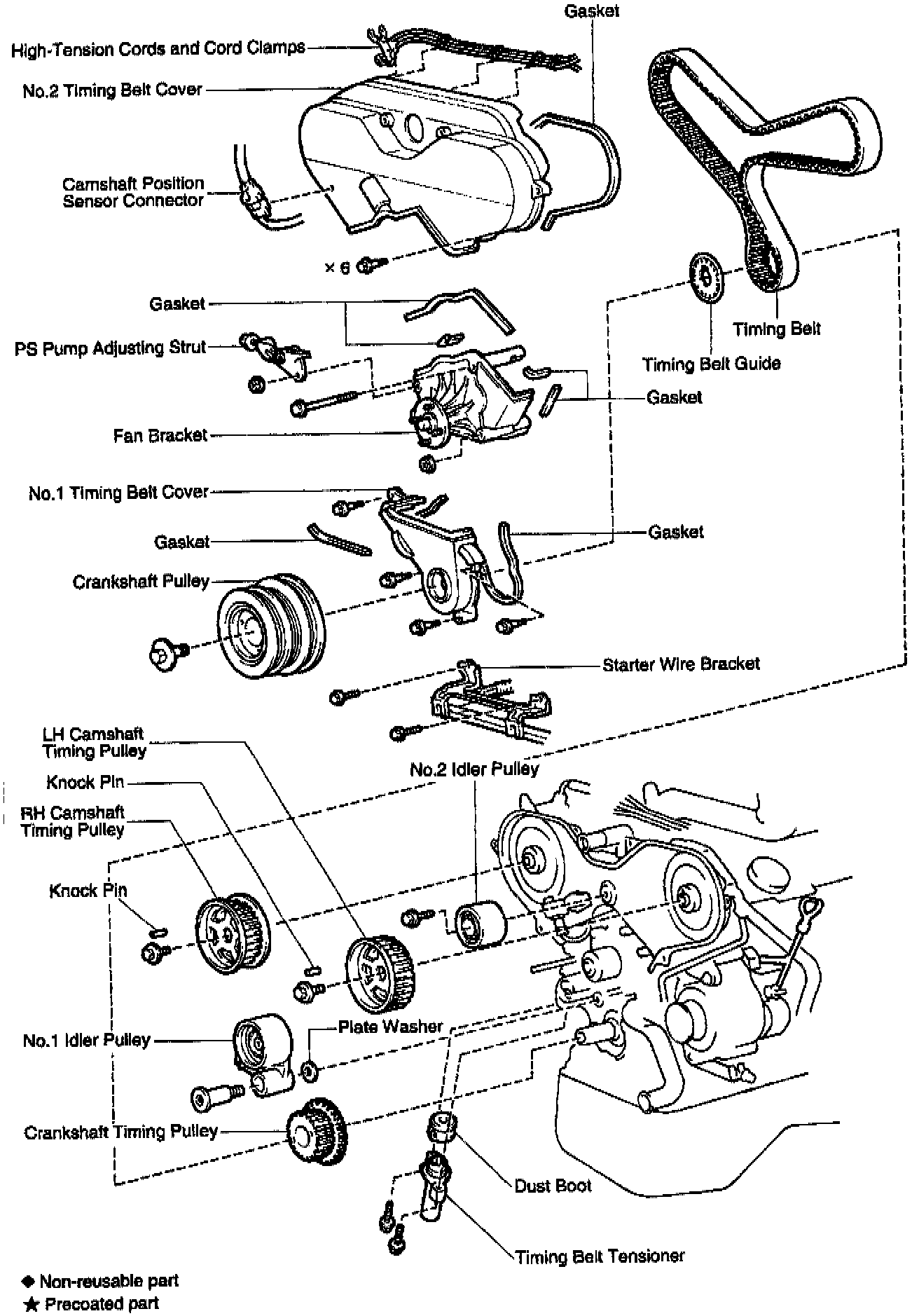

TIMING BELT
COMPONENTS
