Oil Pump, Engine

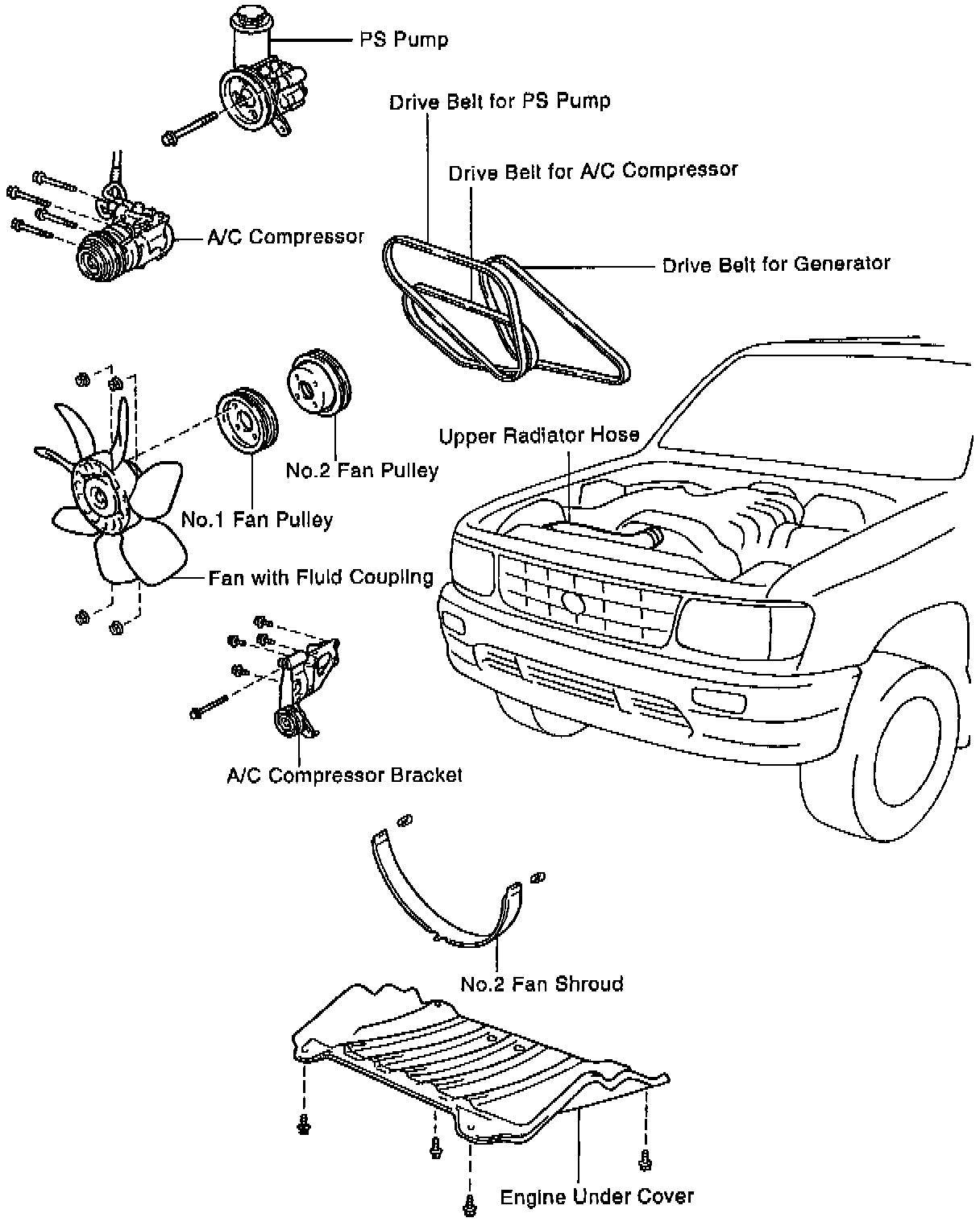

UNDERHOOD VIEW

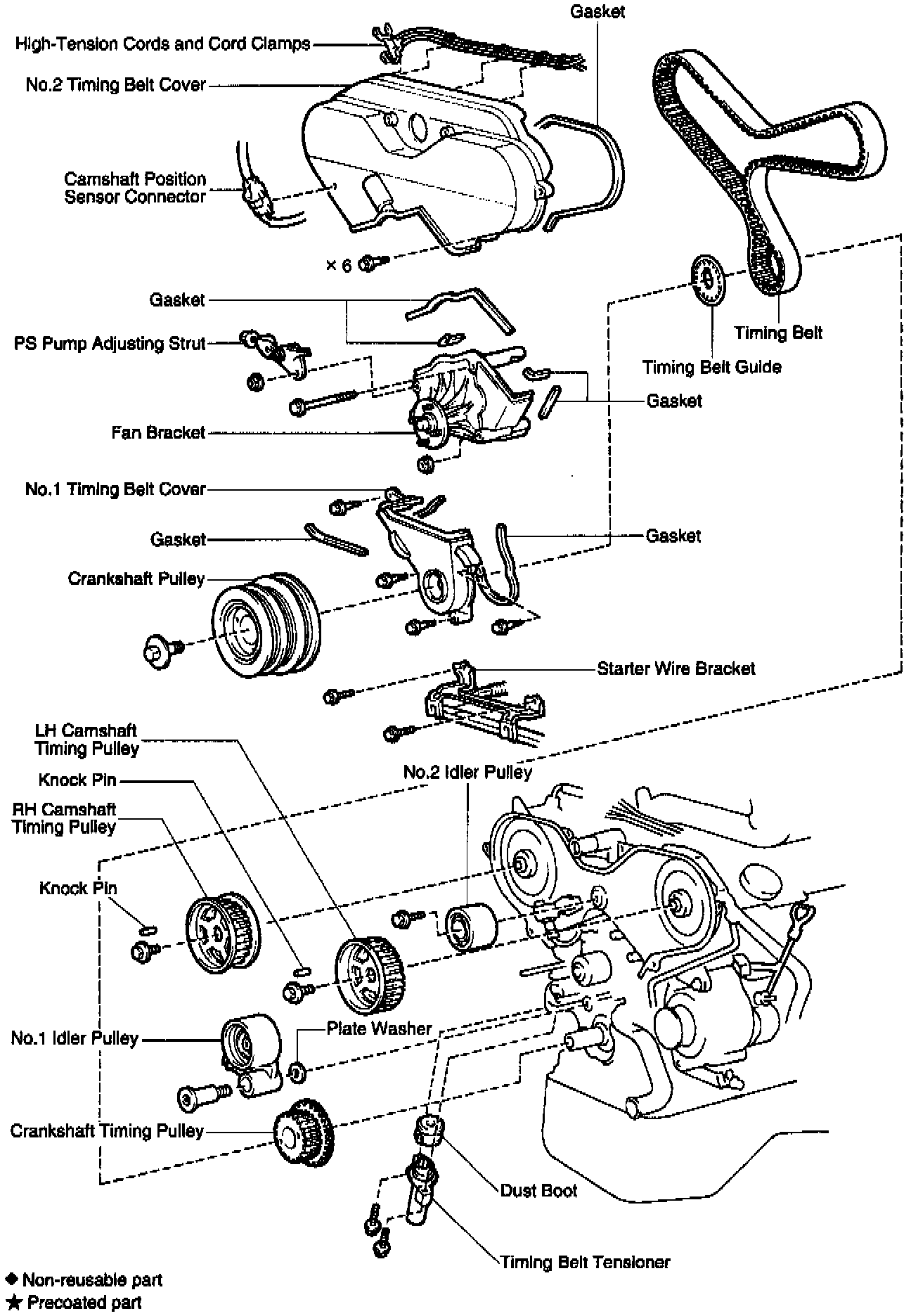

TIMING BELT
AND RELATED COMPONENTS

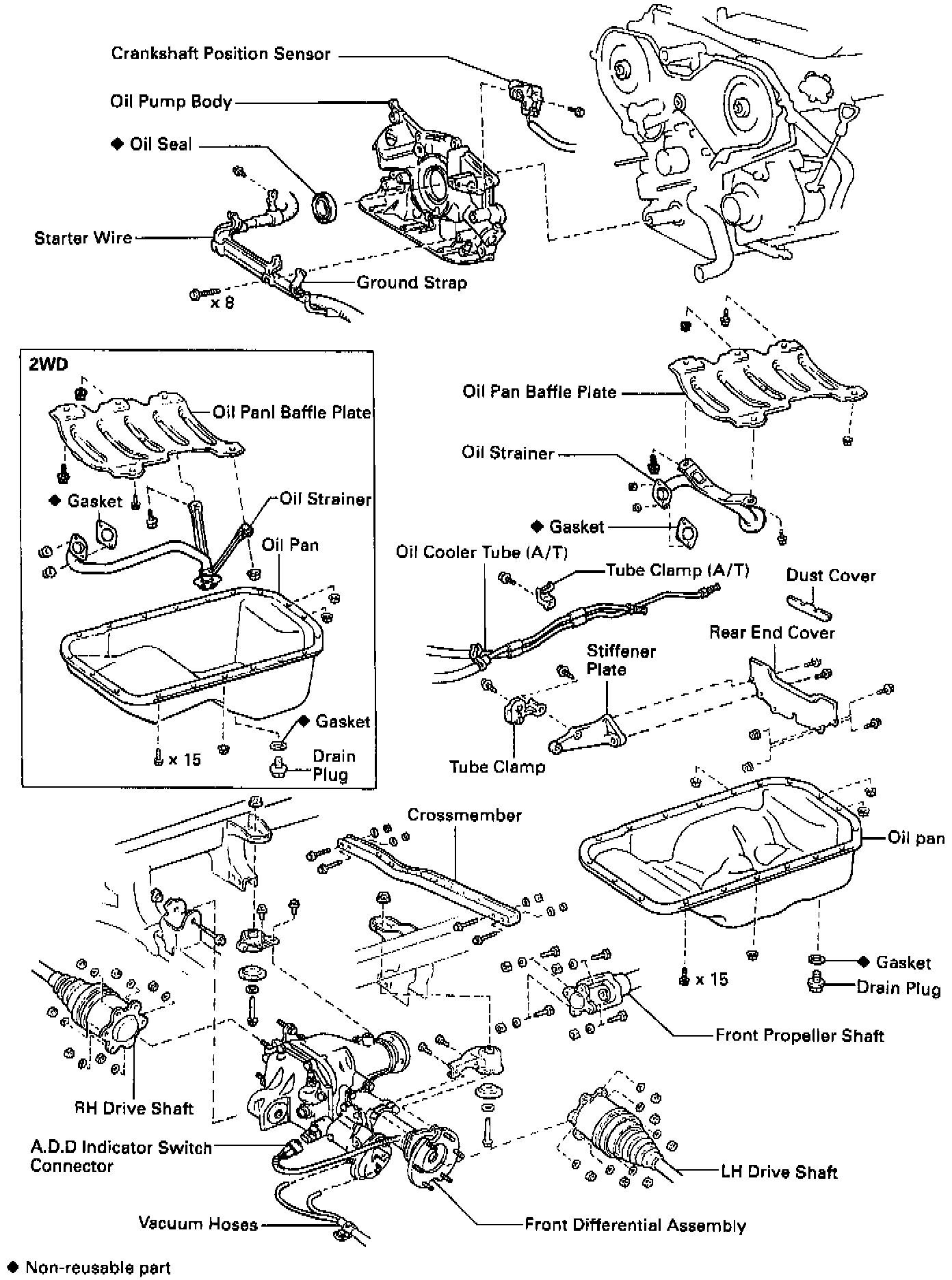

FRONT AXLE, A/T COOLER TUBE AND OIL PUMP BODY

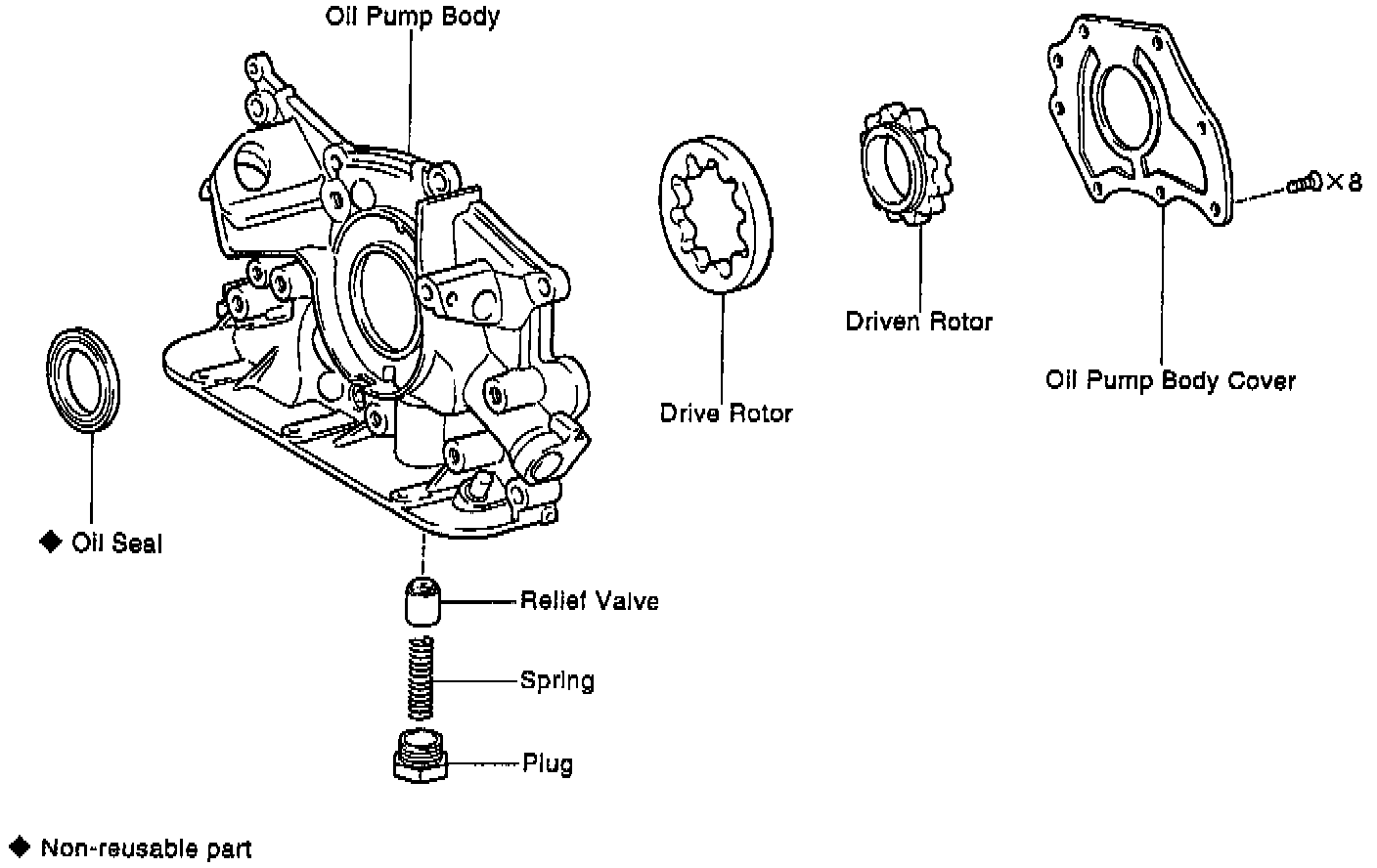

OIL PUMP
