Toyota Truck
>>
1998
>>
T100 Regular Cab Pickup 2WD L4-2693cc 2.7L DOHC MFI
>>
Repair and Diagnosis
>>
Diagrams
>>
Exploded Views
>>
Engine
>>
Cylinder Head Assembly
Cylinder Head Assembly

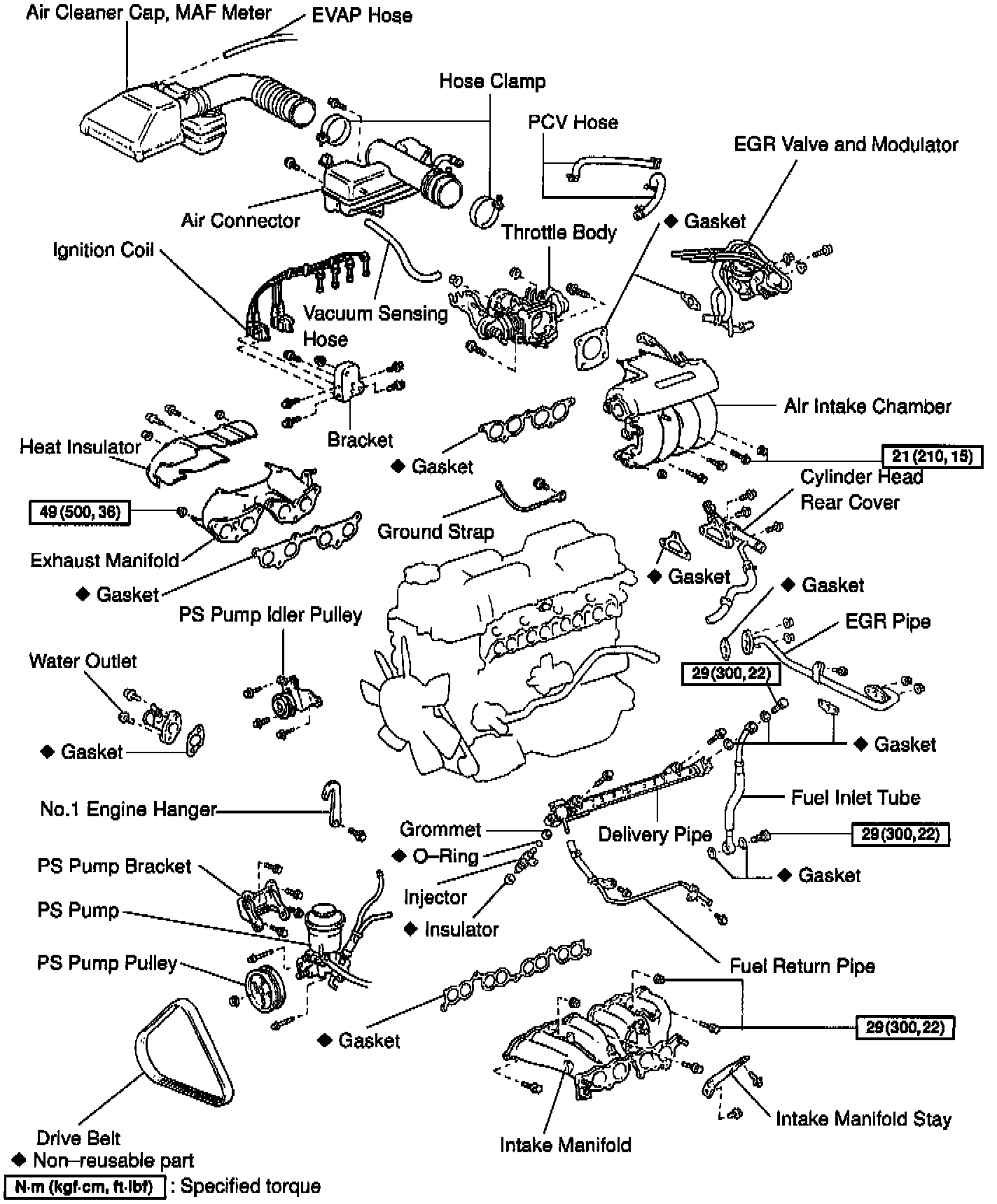

INTAKE MANIFOLD
ASSEMBLIES AND RELATED COMPONENTS

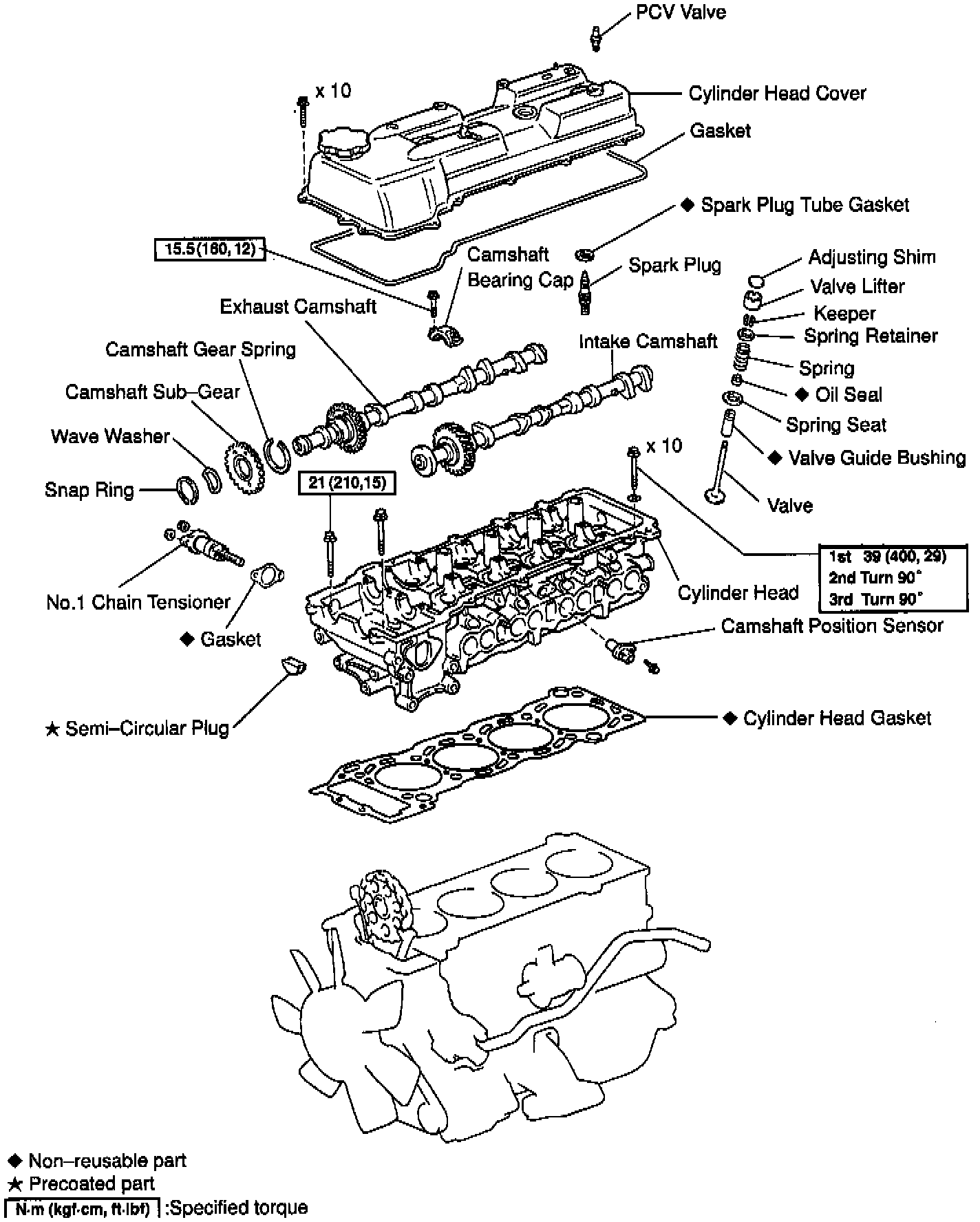

CYLINDER HEAD ASSEMBLY
