Cylinder Head Assembly

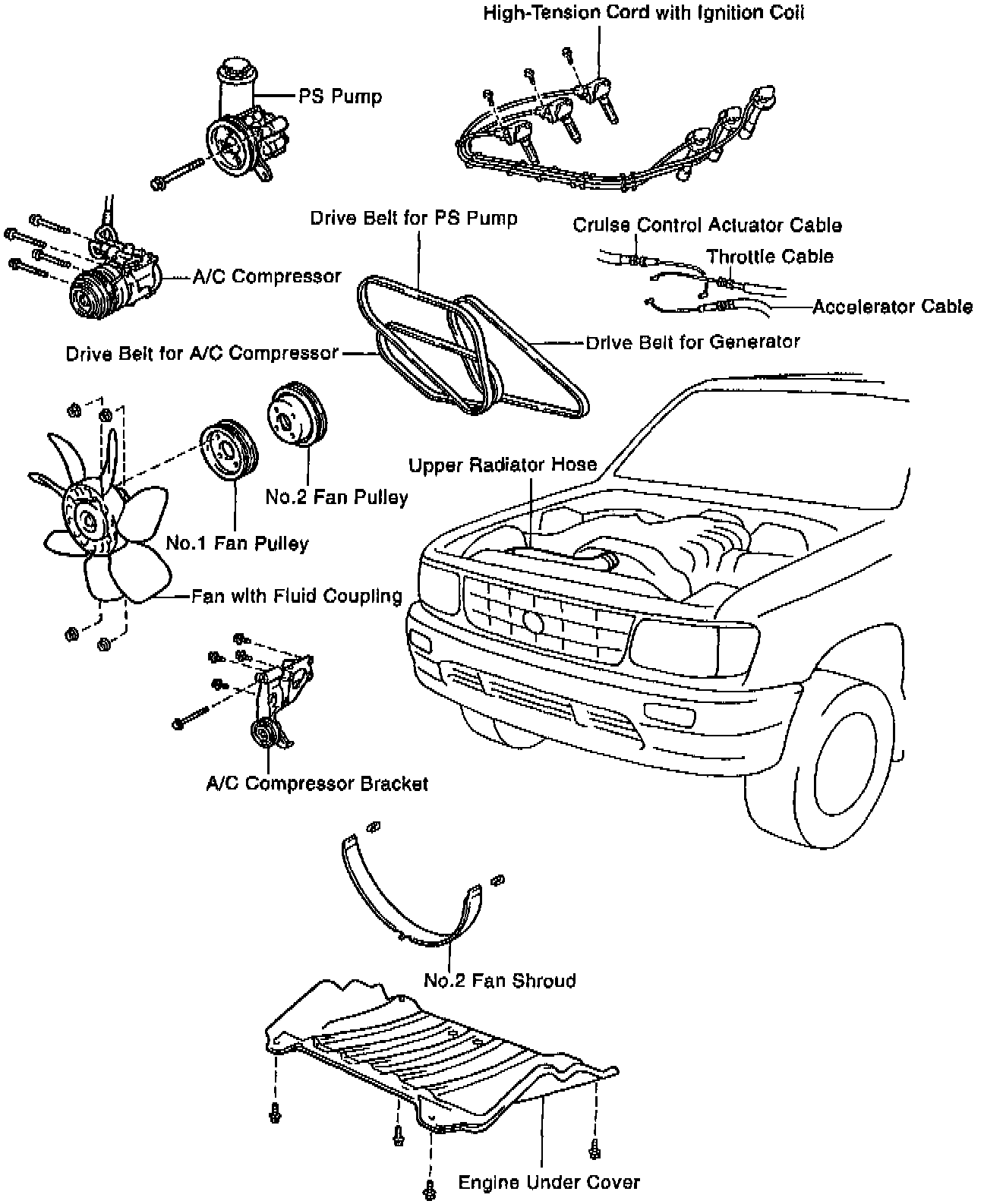

UNDERHOOD VIEW

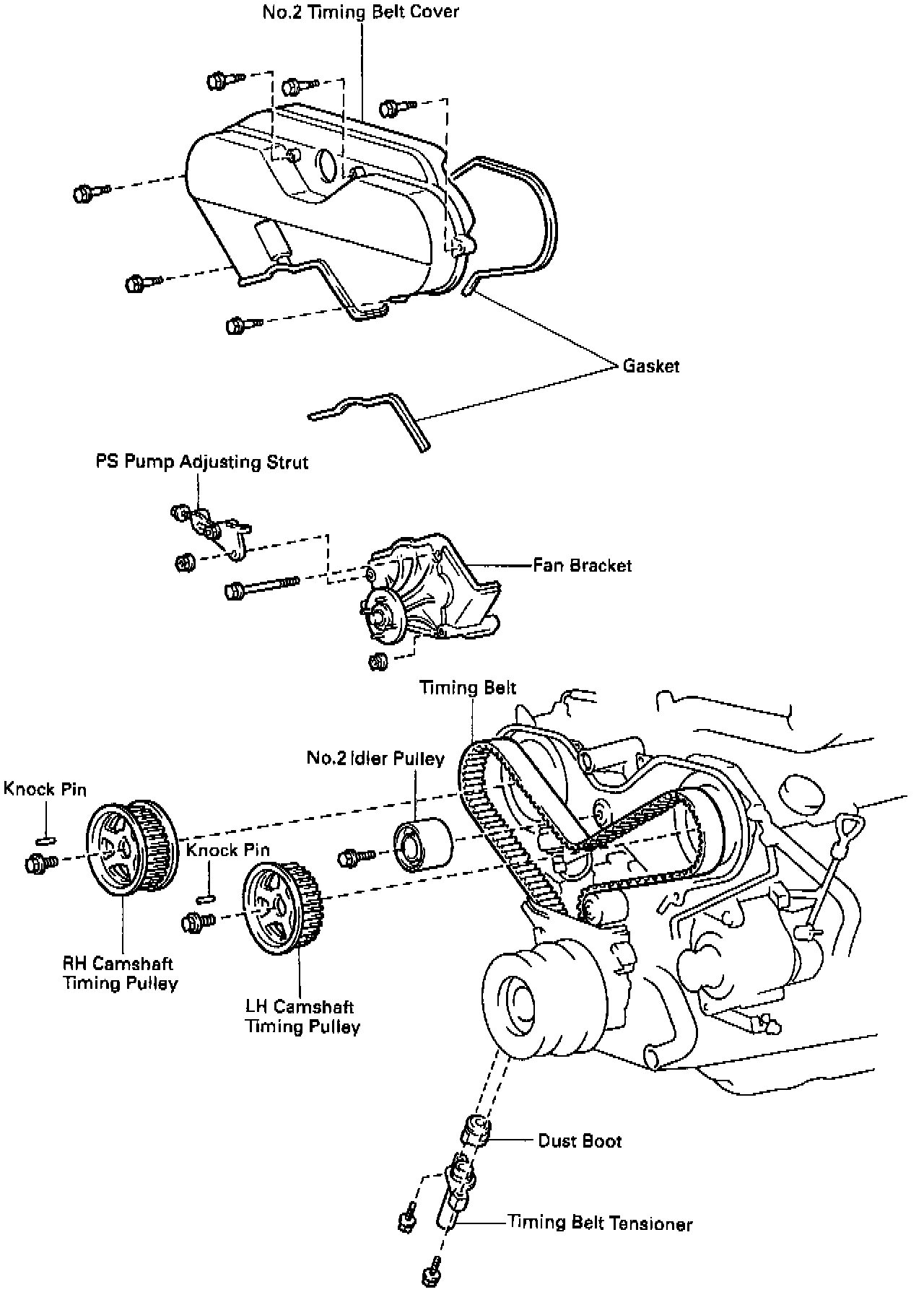

TIMING COMPONENTS

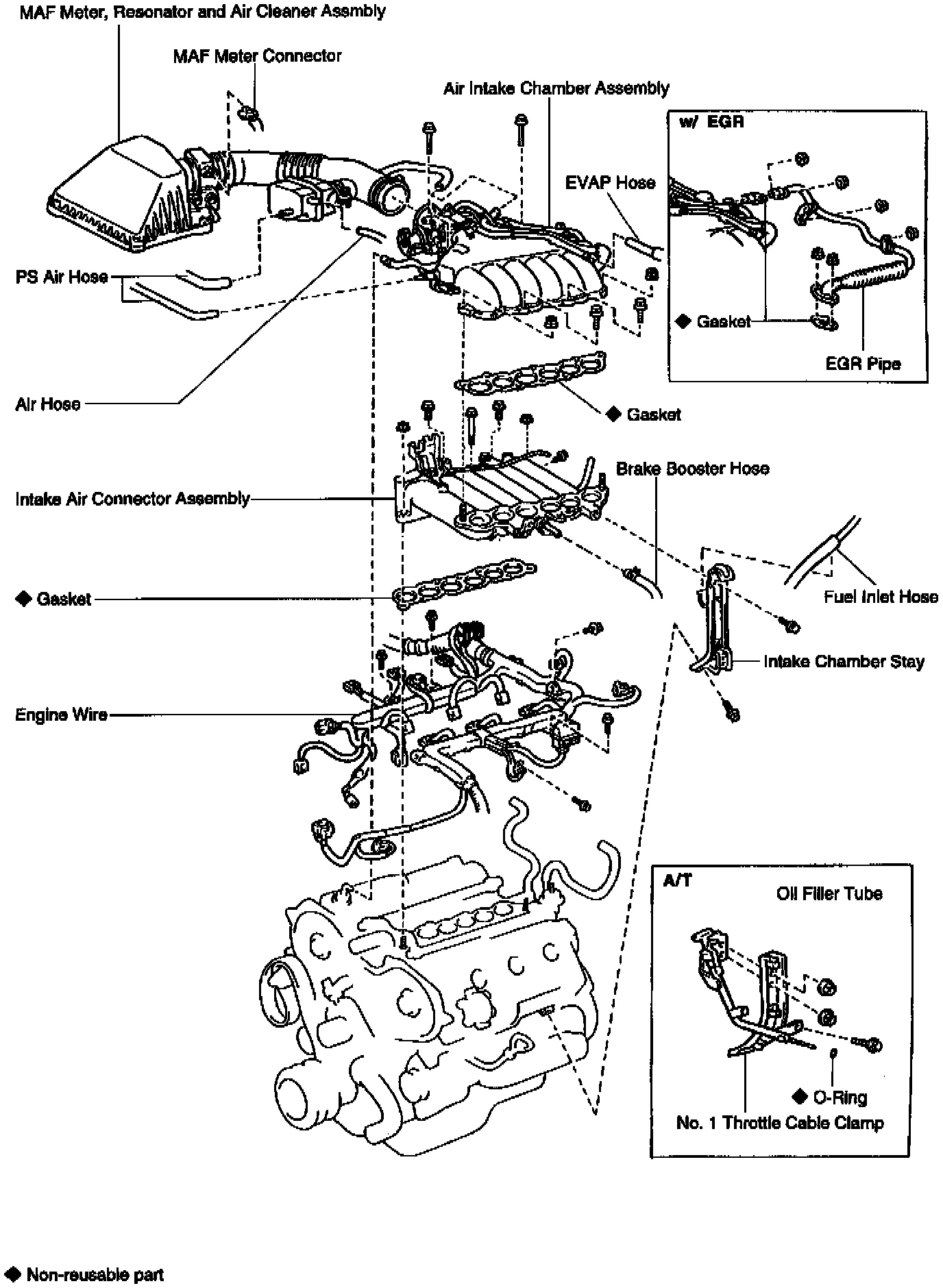

INTAKE MANIFOLD ASSEMBLIES AND RELATED COMPONENTS

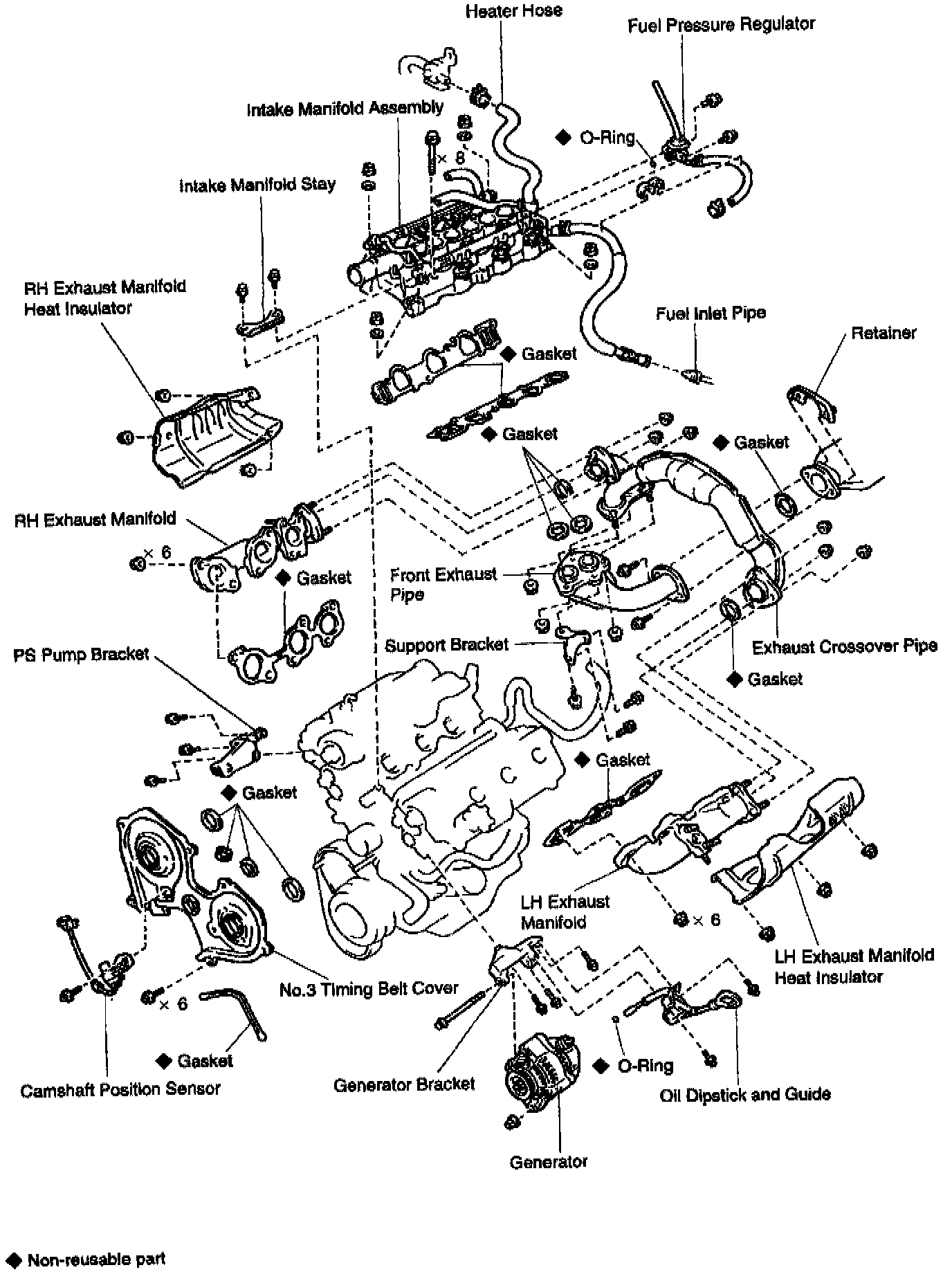

EXHAUST MANIFOLDS AND RELATED COMPONENTS

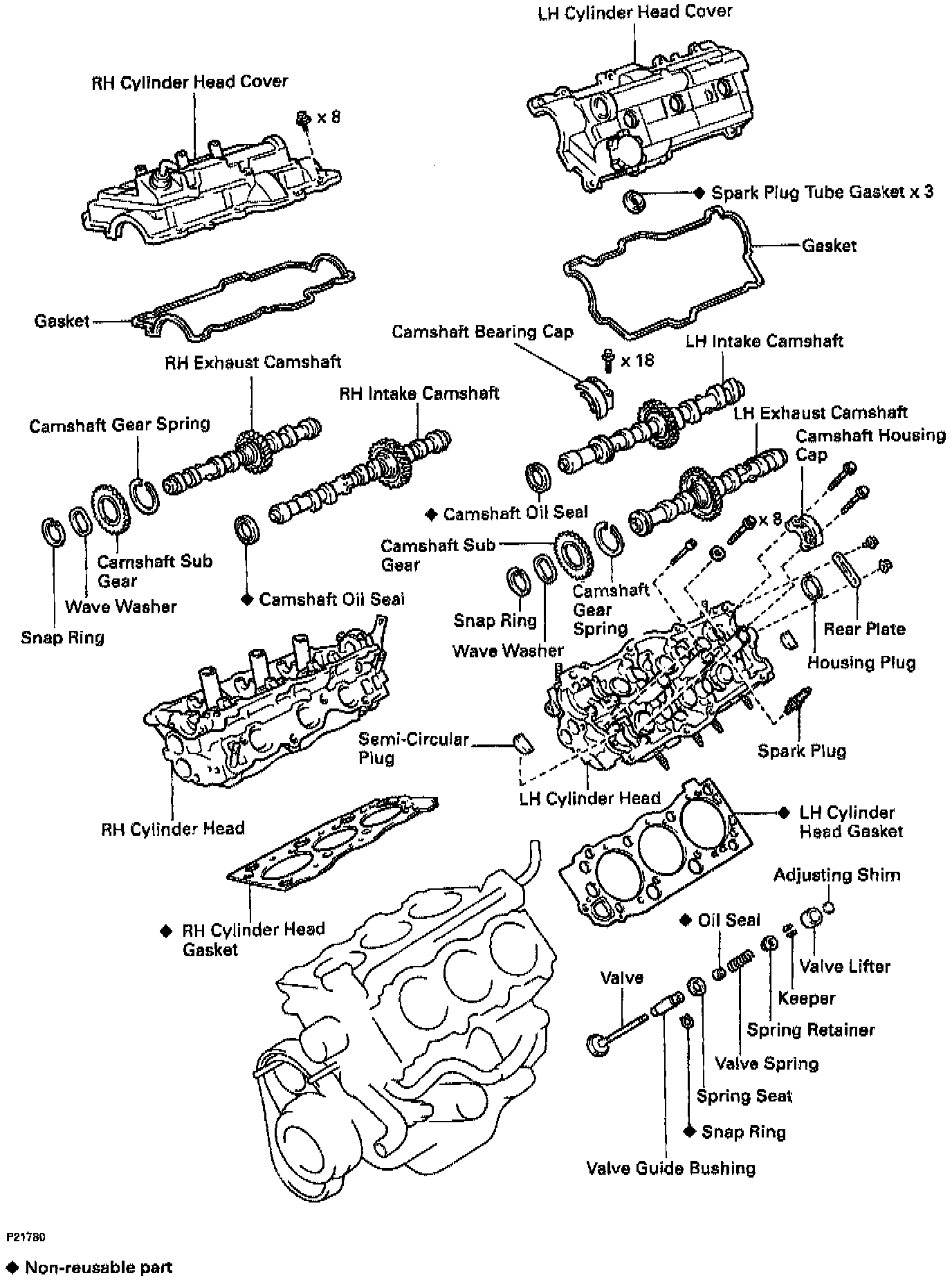

CYLINDER HEAD ASSEMBLIES
