Heater Core: Service and Repair

REMOVAL
1. REMOVE HEATER UNIT

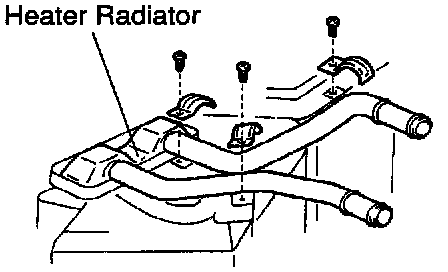

2. REMOVE HEATER RADIATOR




a. Remove the 3 screws, 3 plates and clamp.
b. Pull out the heater radiator.

INSTALLATION
Installation is in the reverse order of removal
