Removal and Installation

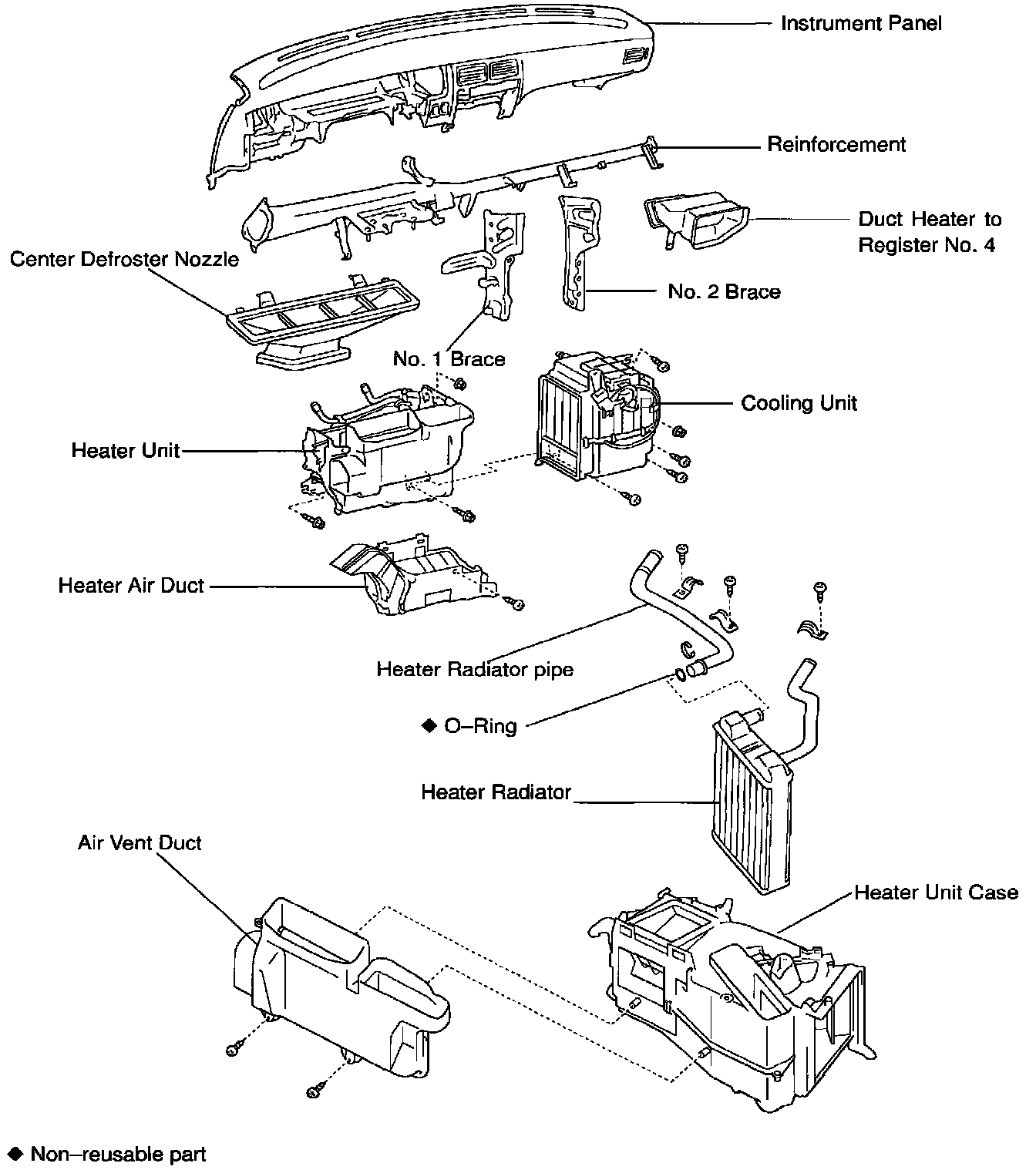

COMPONENTS

REMOVAL
1. REMOVE COOLING UNIT
2. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all coolant.

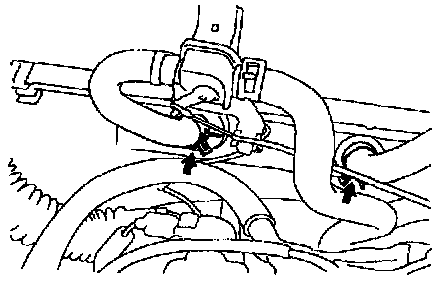

3. DISCONNECT WATER HOSES FROM HEATER RADIATOR PIPES




a. Grip the claws of hose clip and slide the hose clip along the hose.
b. Disconnect the water hose.






HINT: At the time of installation, please refer to the following item.

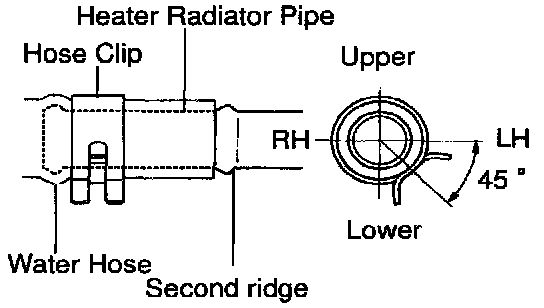

^ Push the water hose onto the heater radiator pipe as far as the second ridge on the pipe.
^ Install the hose clip in the position, as shown in the illustration.

4. REMOVE INSTRUMENT PANEL AND REINFORCEMENT

5. DISCONNECT HEATER CONTROL CABLES FROM HEATER UNIT

HINT: At the time of installation, please refer to the following item.
After connection, adjust the control cables.




6. REMOVE HEATER TO REGISTER No.4 DUCT
Remove the screw and the duct.

7. REMOVE HEATER TO REGISTER CENTER DUCT
Remove the screw and duct.

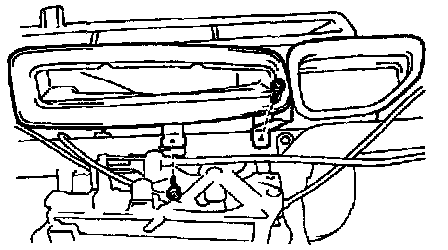

8. REMOVE HEATER AIR DUCT
Remove the screw and duct.

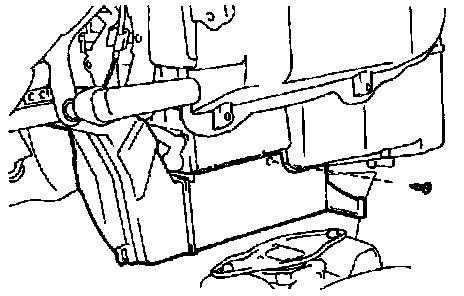

9. REMOVE HEATER UNIT
a. Remove the screw and foot air duct.
b. Remove the 2 bolts, nut and heater unit.

INSTALLATION
Installation is in the reverse order of removal
