Washer Fluid Level Indicator: Testing and Inspection

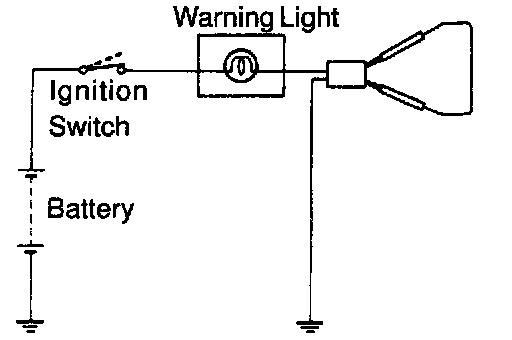

INSPECT WASHER LEVEL WARNING LIGHT
a. Disconnect the connectors from the level warning switch and parking brake switch.
b. Connect terminals on the wire harness side connector the level warning switch connector.
c. Remove the GAUGE fuse and turn the ignition switch ON, and check that the waning light comes on.
If the warning light does not light up, test the bulb.
