Control Arm Bushing: Service and Repair

REPLACEMENT

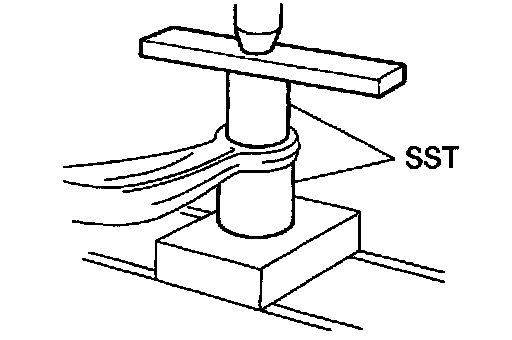

1. REMOVE LOWER SUSPENSION ARM BUSHING.
Using Special Service Tool (SST) 09649-17010, 09710-04081 or equivalent, and a press, remove the bushing.

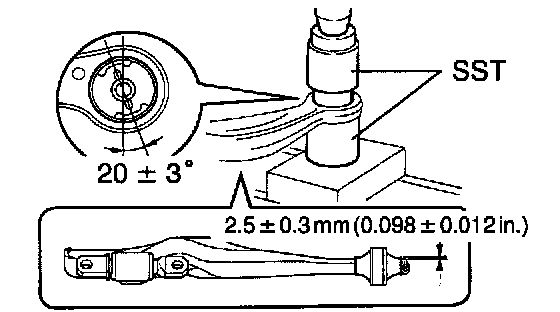

2. INSTALL LOWER SUSPENSION ARM BUSHING.
Using SST 09238-47012, 09649-17010 and a press, install a new bushing.

HINT: Before installing the bushing, set it in the correct direction, as shown in the illustration.
