Removal and Installation

ON-VEHICLE INSPECTION

NOTE: Before changing the starter, cheek the following items again:
^ Connector connection
^ Accessory installation, e.g.: theft deterrent system

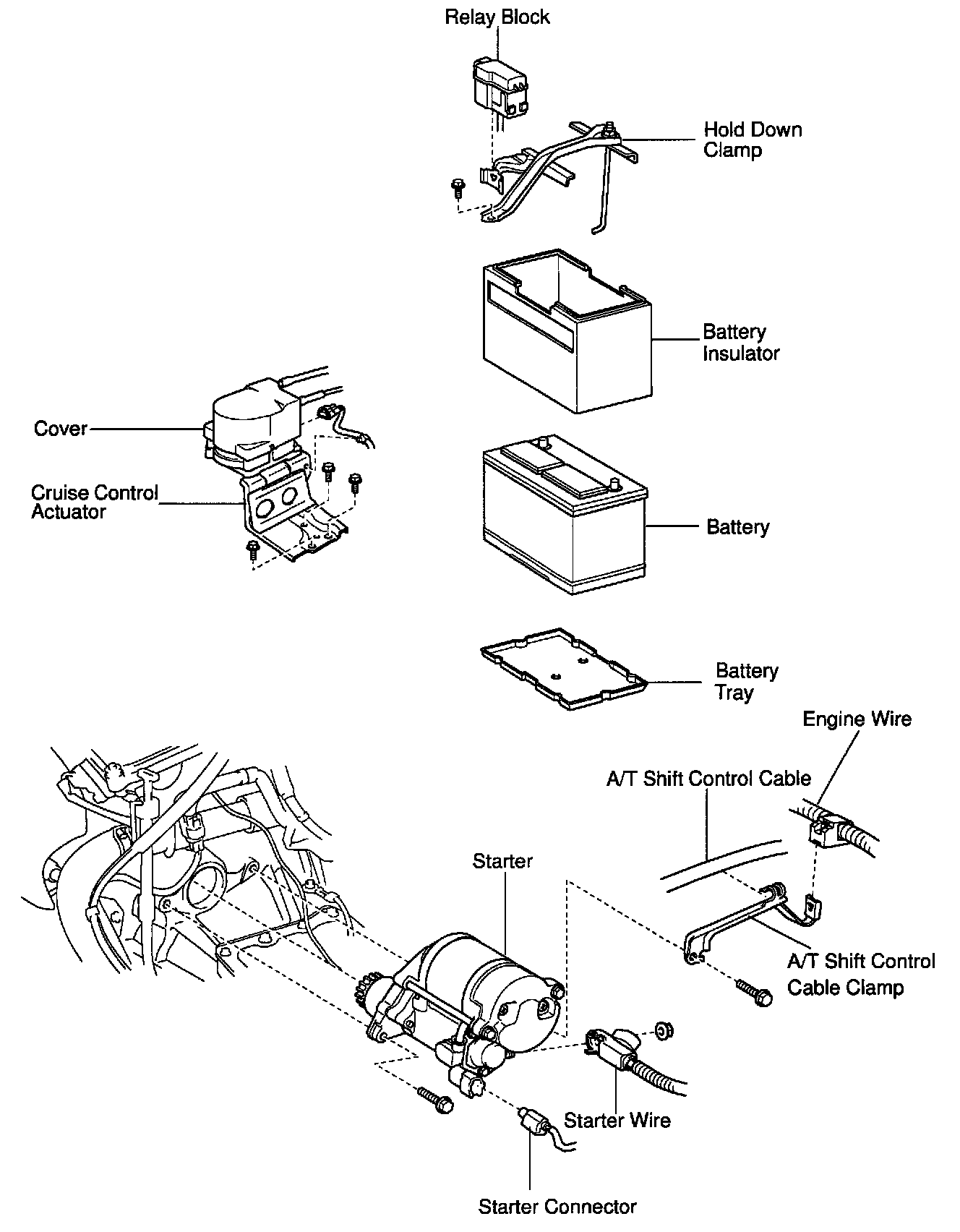

COMPONENTS

REMOVAL
1. REMOVE BATTERY AND TRAY
2. (w/ CRUISE CONTROL SYSTEM)
REMOVE CRUISE CONTROL ACTUATOR
a. Disconnect the actuator connector and clamp.
b. Remove the 3 bolts, and disconnect the actuator with the bracket.

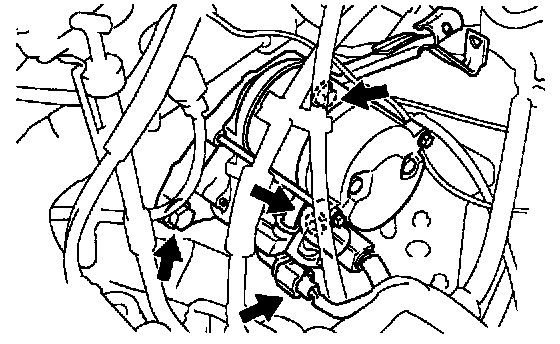

3. REMOVE STARTER
a. Disconnect the Aft shift control cable.
b. Disconnect the engine wire.
c. Disconnect the starter connector.
d. Remove the nut, and disconnect the starter wire.
e. Remove the 2 bolts, A/T shift control cable clamp and starter.
Torque: 37 N.m (380 kgf.cm, 27 ft.lbf)

INSTALLATION
Installation is in the reverse order of removal.
