Rear Heater Unit

REMOVAL

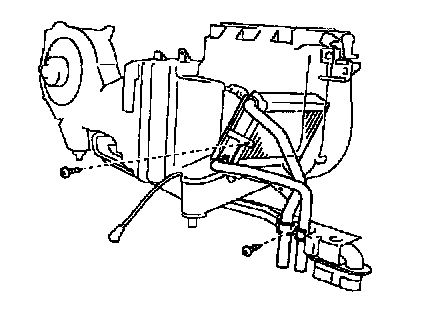

1. 4-Door Models:
REMOVE REAR HEATER RADIATOR
a. Remove the rear A/C unit.




b. Remove the heater radiator.
1. Remove the screw and clamp.
2. Remove the screw and plate, then pull out the heater radiator.

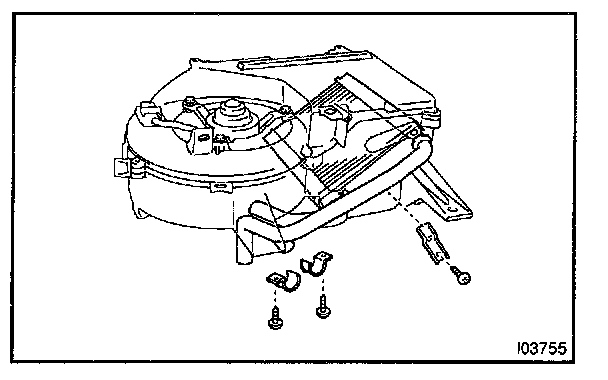

2. 5-Door Models:
REMOVE HEATER RADIATOR
a. Remove the rear heater unit.




b. Remove the heater radiator.
1. Remove the 2 screws and 2 clamps.
2. Remove the screw and plate, then pull out the heater radiator.

INSTALLATION
Installation is in the reverse order of removal.
