Front Heater Unit

REMOVAL
1. DRAIN ENGINE COOLANT FROM RADIATOR

HINT: It is not necessary to drain out all the coolant.

2. REMOVE THESE PARTS
a. Instrument panel
b. Reinforcement
c. Defroster nozzle




3. REMOVE HEATER RADIATOR

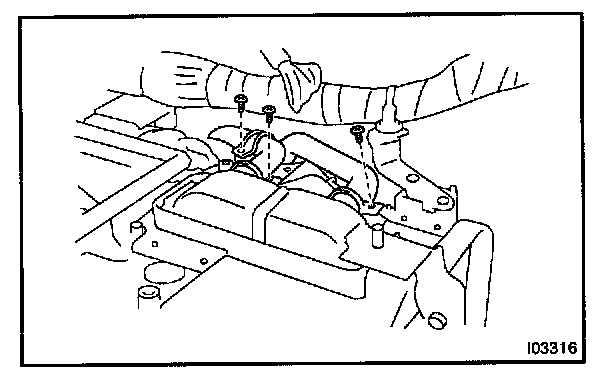

a. Remove the screw and piping clamp.
b. Remove the 2 screws, 2 clamps and 2 heater radiator pipes from the heater radiator.
c. Pull out the heater radiator.
d. Remove 2 O-rings from heater radiator pipes.

INSTALLATION
Installation is in the reverse order of removal.
